Mining Rubber Cables Accessories for Uzbekistan
Release time: 2025-07-01

Uni-Cable’s Mining Rubber Cables & Accessories for Uzbekistan

Uzbekistan is one of Central Asia’s largest producers of copper, gold, and uranium, with Navoi Mining & Metallurgy Combinat (NMMC) and Almalyk Mining-Metallurgical Complex (AMMC) leading underground and surface extraction. In 2023, as part of the country’s mining automation and electrification plan, NMMC expanded three major shafts and mobile mineral processing units across the Muruntau gold field — one of the largest open-pit mines in the world.

To support the high load mobility and safety of their mining systems, they required robust rubber-insulated mining cables, capable of enduring abrasion, mechanical dragging, and oil-water exposure, with long service life and zero safety compromise.

Uni-Cable Product Solution

Uni-Cable, a global cable and accessories manufacturer, was chosen as the core supplier due to its:

  • Direct factory production (no middleman pricing)

  • Strict quality standards (ISO 9001, ISO 14001, ISO 45001 certified)

  • Rapid delivery capacity

  • Multilingual technical support in Russian/English/Chinese

Products Supplied

Rubber Mining Power Cables
Model Structure Conductor Voltage Rating Application
(N)TSCGEWÖU 3x120+2x35+1x10 mm² EPR insulated, textile-braided, PCP sheathed Tinned copper Class 5 1.9/3.3 kV Trailing cable for shuttle conveyor
NSSHöu 1x70 mm², 0.6/1kV Flexible EPR, oil/flame resistant Bare Cu 0.6/1 kV Pump power cable
NSSHöu 19x1.5 mm², 0.6/1kV Multi-core control cable Cu 0.6/1 kV Drill & lighting control

Key Features:

  • Insulation: EPR (Ethylene Propylene Rubber), excellent thermal range –40°C ~ +90°C

  • Outer Sheath: Chloroprene (PCP), resistant to oil, chemicals, abrasion

  • Flame Retardant: IEC 60332-1 tested

  • Reinforced with synthetic braid for tensile load bearing

  • Color-coded cores, optional yellow/black sheath for safety tracking underground

Matching Accessories Supplied

  • Power couplers (3.3kV, aluminum alloy shell, KEMA tested)

  • Cold-shrink terminations and joints (IP67, pre-tested at 6 kV)

  • Trailing cable clamps and hangers (non-slip, anti-vibration)

  • Cable entry sealing glands and grommets for control cables

  • Cable drums custom marked for each shaft number

Project Implementation

  • Supplied over 42 km of mining-grade trailing cable to Muruntau processing units

  • Delivered more than 600 sets of cable fittings and trailing clamps

  • Uni-Cable worked closely with NMMC’s installation contractor to pre-cut cable segments by section

  • Online installation video guides in Russian were provided for coupler assembly and termination sealing

Testing & Quality Certification

  • Routine Tests: Conductor resistance, insulation resistance, voltage withstand

  • Type Tests: Mechanical impact, flame propagation, oil resistance (ASTM IRM 902)

  • Coupler Compatibility Test: Phase continuity and sealing integrity under 3.3 kV

  • Third-party inspection by SGS completed before shipment

  • Every cable drum was marked with a QR code linking to test report archive (per project zone)

Export & Packaging

  • Custom drums: 2.5-meter diameter steel-reinforced, wooden base

  • Desiccant-packed shrink wrap for cables to prevent moisture during rail transport

  • Accessory kits labeled in Uzbek/Russian for ease of local site use

  • Export via rail shipment from Tianjin Port, China → Termez Station, Uzbekistan

  • Full document package included:

    • Certificate of Origin

    • ISO compliance certificates

    • Test reports

    • Cable schedule and jointing plan

    • Russian-language installation instructions

Why Uni-Cable Was Chosen

  • Complete system supply: rubber cable + compatible couplers + documentation

  • Customization ability: pre-assembled kits per shaft, reduced labor on site

  • Technical language support: Russian and Uzbek labels + documentation

  • 20% cost savings vs European alternatives

  • Fast delivery: full batch in under 4 weeks from PO

  • 24/7 after-sales support via remote video and WhatsApp

The project team at NMMC praised Uni-Cable for its timely supply, system compatibility, and rugged performance. After 6 months of operation, the cables showed zero insulation faults or sheath damage, even in the high-vibration, mobile areas. The client has since placed new orders for shaft extension phases and recommended Uni-Cable to other state-owned mining groups.

Related products

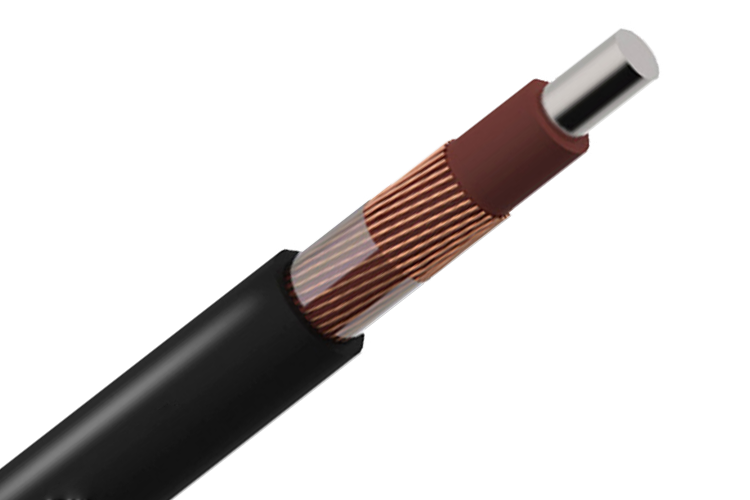

Aluminium Concentric BS 7870 PVC Cable
H07RN-8-F Cable
BS5308 Part 1 / Type 1 unarmoured instrumentation cables

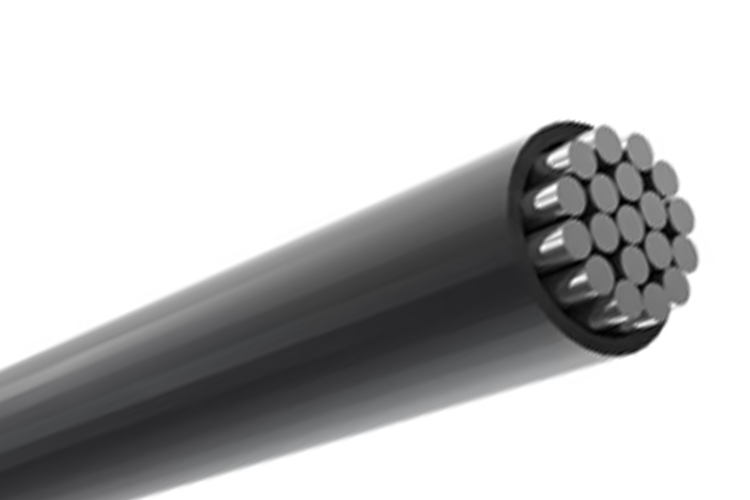

Single Conductor URD Wire
