Application
Used for primary and secondary overhead distribution where limited space is available or desirable for rights of way. Installed as an uninsulated conductor, however, covering is effective in preventing direct shorts and instantaneous flashovers should tree limbs or other objects contact conductors in such close proximity. The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation; particularly useful in congested areas such as alleyways or tight corridors.
Standard
Tree wire is manufactured to ICEA S-121-733 and should meet the following relevant standards:
ASTM B230
ASTM B231
ASTM B232
ASTM B398
ASTM B399
ASTM B400

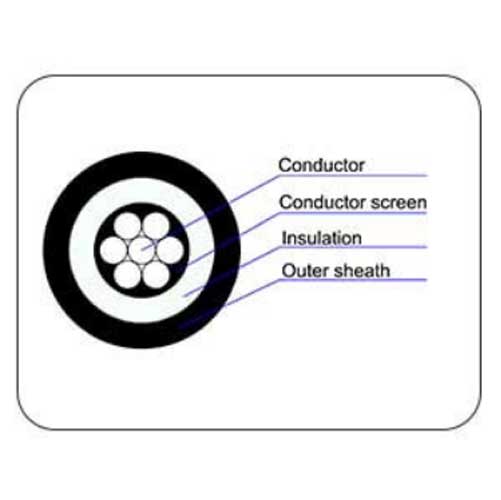

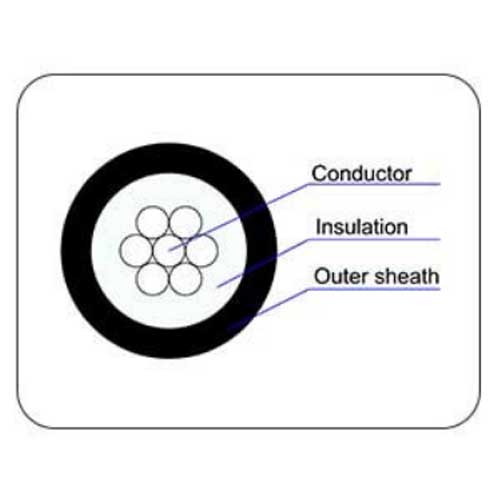

Construction
Conductors are concentrically stranded, AAC (1350-H19), AAAC or ACSR. Available with high-density polyethylene (HDPE) or cross-linked polyethylene (XLPE) covering .
AAC- compressed stranding, 1350-H19 aluminum made to ASTM B231
AAAC- concentric stranding, 6201-T81 aluminum alloy made to ASTM B399
ACSR- concentric stranding, 1350-H19 aluminum with GA2 steel core made to ASTM B232
Coverings
High-density polyethylene (HDPE)
Cross-linked polyethylene (XLPE)
VOLTAGE
15kV, 25kV, 35kV, 46kV
![](/d/file/tree-wire1.jpg)
![](/d/file/tree-wire2.jpg)
Parameter
15kV Tree Wire
25kV Tree Wire
35kV Tree Wire
46kV Tree Wire
Used for primary and secondary overhead distribution where limited space is available or desirable for rights of way. Installed as an uninsulated conductor, however, covering is effective in preventing direct shorts and instantaneous flashovers should tree limbs or other objects contact conductors in such close proximity. The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation; particularly useful in congested areas such as alleyways or tight corridors.
Standard
Tree wire is manufactured to ICEA S-121-733 and should meet the following relevant standards:
ASTM B230
ASTM B231
ASTM B232
ASTM B398
ASTM B399
ASTM B400
Construction
Conductors are concentrically stranded, AAC (1350-H19), AAAC or ACSR. Available with high-density polyethylene (HDPE) or cross-linked polyethylene (XLPE) covering .
AAC- compressed stranding, 1350-H19 aluminum made to ASTM B231
AAAC- concentric stranding, 6201-T81 aluminum alloy made to ASTM B399
ACSR- concentric stranding, 1350-H19 aluminum with GA2 steel core made to ASTM B232
Coverings
High-density polyethylene (HDPE)
Cross-linked polyethylene (XLPE)
VOLTAGE
15kV, 25kV, 35kV, 46kV
![](/d/file/tree-wire1.jpg)
![](/d/file/tree-wire2.jpg)
Parameter
15kV Tree Wire
Size (AWG or kcmil) |
No. of Wires |
Covering Thickness | Cable Diameter | Rated Strength |
Weight | ||
Conductor Shield | Inner Layer | Outer Layer | |||||
No. | mm | mm | mm | mm | kN | kg/km | |
3-Layer 15kV ACSR/XLPE/HDPE | |||||||
6 | 6/1 | 0.38 | 1.91 | 1.91 | 13.6 | 5.28 | 188 |
4 | 6/1 | 0.38 | 1.91 | 1.91 | 14.8 | 8.30 | 238 |
3 | 6/1 | 0.38 | 1.91 | 1.91 | 15.6 | 10.2 | 271 |
2 | 6/1 | 0.38 | 1.91 | 1.91 | 16.5 | 12.7 | 313 |
1 | 6/1 | 0.38 | 1.91 | 1.91 | 17.4 | 15.6 | 362 |
1/0 | 6/1 | 0.38 | 1.91 | 1.91 | 18.5 | 19.4 | 424 |
2/0 | 6/1 | 0.38 | 1.91 | 1.91 | 19.6 | 23.3 | 496 |
3/0 | 6/1 | 0.38 | 1.91 | 1.91 | 20.7 | 29.4 | 584 |
4/0 | 6/1 | 0.38 | 1.91 | 1.91 | 22.4 | 37.1 | 699 |
266.8 | 18/1 | 0.38 | 1.91 | 1.91 | 23.7 | 30.3 | 713 |
336.4 | 18/1 | 0.38 | 1.91 | 1.91 | 25.2 | 38.2 | 847 |
Size ( kcmil) |
Number of Wires |
Covering Thickness | Cable Diameter | Rated Strength |
Weight | ||
Conductor Shield | Inner Layer | Outer Layer | |||||
No. | mm | mm | mm | mm | kN | kg/km | |
3-Layer 15kV AAAC/XLPE/HDPE | |||||||
48.69 | 7 | 0.38 | 1.91 | 1.91 | 15.2 | 7.83 | 223 |
77.47 | 7 | 0.38 | 1.91 | 1.91 | 16.8 | 12.4 | 286 |
123.3 | 7 | 0.38 | 1.91 | 1.91 | 19.0 | 18.9 | 383 |
155.4 | 7 | 0.38 | 1.91 | 1.91 | 20.1 | 23.8 | 443 |
195.7 | 7 | 0.38 | 1.91 | 1.91 | 21.5 | 30.0 | 521 |
246.9 | 7 | 0.38 | 1.91 | 1.91 | 23.0 | 37.8 | 614 |
312.8 | 19 | 0.38 | 1.91 | 1.91 | 24.9 | 46.5 | 740 |
394.5 | 19 | 0.38 | 1.91 | 1.91 | 27.4 | 58.6 | 892 |
465.4 | 19 | 0.38 | 1.91 | 1.91 | 28.4 | 69.2 | 1008 |
559.5 | 19 | 0.51 | 1.91 | 1.91 | 30.4 | 83.1 | 1168 |
652.4 | 19 | 0.51 | 1.91 | 1.91 | 31.8 | 97.0 | 1320 |
740.8 | 37 | 0.51 | 1.91 | 1.91 | 33.3 | 107 | 1463 |
Size (AWG or kcmil) |
No. of Wires |
Covering Thickness | Cable Diameter | Rated Strength |
Weight | ||
Conductor Shield | Inner Layer | Outer Layer | |||||
No. | mm | mm | mm | mm | kN | kg/km | |
3-Layer 15kV AAC/XLPE/HDPE | |||||||
4 | 7 | 0.38 | 1.91 | 1.91 | 14.4 | 3.52 | 204 |
2 | 7 | 0.38 | 1.91 | 1.91 | 15.8 | 5.39 | 259 |
1/0 | 7 | 0.38 | 1.91 | 1.91 | 17.7 | 7.96 | 341 |
2/0 | 7 | 0.38 | 1.91 | 1.91 | 18.6 | 9.99 | 394 |
3/0 | 7 | 0.38 | 1.91 | 1.91 | 19.7 | 12.15 | 459 |
4/0 | 7 | 0.38 | 1.91 | 1.91 | 21.1 | 15.30 | 541 |
266.8 | 19 | 0.38 | 1.91 | 1.91 | 23.0 | 19.89 | 648 |
336.4 | 19 | 0.38 | 1.91 | 1.91 | 24.9 | 24.57 | 775 |
397.5 | 19 | 0.38 | 1.91 | 1.91 | 26.1 | 28.44 | 878 |
477 | 19 | 0.38 | 1.91 | 1.91 | 27.9 | 33.30 | 1017 |
556.5 | 37 | 0.51 | 1.91 | 1.91 | 30.1 | 39.87 | 1161 |
636 | 37 | 0.51 | 1.91 | 1.91 | 31.5 | 45.36 | 1295 |
795 | 37 | 0.51 | 2.03 | 2.03 | 34.2 | 55.62 | 1557 |
25kV Tree Wire
Size (AWG or kcmil) |
No. of Wires |
Covering Thickness | Cable diameter | Rated Strength |
Weight | ||
Conductor Shield | Inner Layer | Outer Layer | |||||
No. | mm | mm | mm | mm | kN | kg/km | |
3-Layer 25kV ACSR/XLPE/HDPE | |||||||
1/0 | 6/1 | 0.38 | 3.18 | 3.18 | 23.6 | 19.4 | 586 |
2/0 | 6/1 | 0.38 | 3.18 | 3.18 | 24.7 | 23.3 | 666 |
3/0 | 6/1 | 0.38 | 3.18 | 3.18 | 25.8 | 29.4 | 763 |
4/0 | 6/1 | 0.38 | 3.18 | 3.18 | 27.5 | 37.1 | 891 |
266.8 | 18/1 | 0.38 | 3.18 | 3.18 | 28.6 | 30.3 | 913 |
336.4 | 18/1 | 0.38 | 3.18 | 3.18 | 30.1 | 38.2 | 1058 |
Size ( kcmil) |
No. of Wires |
Covering Thickness | Cable Diameter | Rated Strength |
Weight | ||
Conductor Shield | Inner Layer | Outer Layer | |||||
No. | mm | mm | mm | mm | kN | kg/km | |
3-Layer 25kV AAAC/XLPE/HDPE | |||||||
48.69 | 7 | 0.38 | 3.18 | 3.18 | 20.1 | 7.83 | 358 |
77.47 | 7 | 0.38 | 3.18 | 3.18 | 21.7 | 12.4 | 434 |
123.3 | 7 | 0.38 | 3.18 | 3.18 | 23.9 | 18.9 | 547 |
155.4 | 7 | 0.38 | 3.18 | 3.18 | 25.0 | 23.8 | 616 |
195.7 | 7 | 0.38 | 3.18 | 3.18 | 26.4 | 30.0 | 704 |
246.9 | 7 | 0.38 | 3.18 | 3.18 | 27.9 | 37.8 | 809 |
312.8 | 19 | 0.38 | 3.18 | 3.18 | 29.6 | 46.5 | 939 |
394.5 | 19 | 0.38 | 3.18 | 3.18 | 32.1 | 58.6 | 1109 |
465.4 | 19 | 0.38 | 3.18 | 3.18 | 33.1 | 69.2 | 1232 |
559.5 | 19 | 0.51 | 3.18 | 3.18 | 35.1 | 83.1 | 1407 |
652.4 | 19 | 0.51 | 3.18 | 3.18 | 36.5 | 97.0 | 1569 |
740.8 | 37 | 0.51 | 3.18 | 3.18 | 38.0 | 107 | 1723 |
927.2 | 37 | 0.51 | 3.18 | 3.18 | 40.9 | 135 | 2050 |
Size (AWG or kcmil) |
No. of Wires |
Covering Thickness | Cable Diameter | Rated Strength |
Weight | ||
Conductor Shield | Inner Layer | Outer Layer | |||||
No. | mm | mm | mm | mm | kN | kg/km | |
3-Layer 25kV AAC/XLPE/HDPE | |||||||
1/0 | 7 | 0.38 | 3.18 | 3.18 | 22.8 | 7.96 | 497 |
2/0 | 7 | 0.38 | 3.18 | 3.18 | 23.7 | 9.99 | 556 |
3/0 | 7 | 0.38 | 3.18 | 3.18 | 24.8 | 12.15 | 630 |
4/0 | 7 | 0.38 | 3.18 | 3.18 | 26.2 | 15.30 | 723 |
266.8 | 19 | 0.38 | 3.18 | 3.18 | 27.7 | 19.89 | 833 |
336.4 | 19 | 0.38 | 3.18 | 3.18 | 29.6 | 24.57 | 973 |
397.5 | 19 | 0.38 | 3.18 | 3.18 | 30.8 | 28.44 | 1086 |
477 | 19 | 0.38 | 3.18 | 3.18 | 32.6 | 33.30 | 1237 |
556.5 | 37 | 0.51 | 3.18 | 3.18 | 34.8 | 39.87 | 1398 |
636 | 37 | 0.51 | 3.18 | 3.18 | 36.2 | 45.36 | 1542 |
795 | 37 | 0.51 | 3.18 | 3.18 | 38.9 | 55.62 | 1824 |
35kV Tree Wire
Size (AWG or kcmil) |
No. of Wires |
Covering Thickness | Cable Diameter | Rated Strength |
Weight | ||
Conductor Shield | Inner Layer | Outer Layer | |||||
No. | mm | mm | mm | mm | kN | kg/km | |
3-Layer 35kV ACSR/XLPE/HDPE | |||||||
1/0 | 6/1 | 0.38 | 4.45 | 3.18 | 26.1 | 19.4 | 682 |
2/0 | 6/1 | 0.38 | 4.45 | 3.18 | 27.2 | 23.3 | 767 |
3/0 | 6/1 | 0.38 | 4.45 | 3.18 | 28.4 | 29.4 | 868 |
4/0 | 6/1 | 0.38 | 4.45 | 3.18 | 30.0 | 37.1 | 1002 |
266.8 | 18/1 | 0.38 | 4.45 | 3.18 | 31.1 | 30.3 | 1028 |
336.4 | 18/1 | 0.38 | 4.45 | 3.18 | 32.6 | 38.2 | 1179 |
Size ( kcmil) |
No. of Wires |
Covering Thickness | Cable Diameter | Rated Strength |
Weight | ||
Conductor Shield | Inner Layer | Outer Layer | |||||
No. | mm | mm | mm | mm | kN | kg/km | |
3-Layer 35kV AAAC/XLPE/HDPE | |||||||
48.69 | 7 | 0.38 | 4.45 | 3.18 | 22.6 | 7.83 | 441 |
77.47 | 7 | 0.38 | 4.45 | 3.18 | 24.2 | 12.4 | 523 |
123.3 | 7 | 0.38 | 4.45 | 3.18 | 26.4 | 18.9 | 644 |
155.4 | 7 | 0.38 | 4.45 | 3.18 | 27.5 | 23.8 | 718 |
195.7 | 7 | 0.38 | 4.45 | 3.18 | 28.9 | 30.0 | 811 |
246.9 | 7 | 0.38 | 4.45 | 3.18 | 30.4 | 37.8 | 922 |
312.8 | 19 | 0.38 | 4.45 | 3.18 | 32.1 | 46.5 | 1059 |
394.5 | 19 | 0.38 | 4.45 | 3.18 | 34.6 | 58.6 | 1238 |
465.4 | 19 | 0.38 | 4.45 | 3.18 | 35.6 | 69.2 | 1365 |
559.5 | 19 | 0.51 | 4.45 | 3.18 | 37.6 | 83.1 | 1547 |
652.4 | 19 | 0.51 | 4.45 | 3.18 | 39.0 | 97.0 | 1715 |
740.8 | 37 | 0.51 | 4.45 | 3.18 | 40.5 | 107 | 1874 |
927.2 | 37 | 0.51 | 4.45 | 3.18 | 43.4 | 135 | 2213 |
Size (AWG or kcmil) |
No. of Wires |
Covering Thickness | Cable Diameter | Rated Strength |
Weight | ||
Conductor Shield | Inner Layer | Outer Layer | |||||
No. | mm | mm | mm | mm | kN | kg/km | |
3-Layer 35kV AAC/XLPE/HDPE | |||||||
1/0 | 7 | 0.38 | 4.45 | 3.18 | 25.3 | 7.96 | 590 |
2/0 | 7 | 0.38 | 4.45 | 3.18 | 26.2 | 9.99 | 653 |
3/0 | 7 | 0.38 | 4.45 | 3.18 | 27.3 | 12.15 | 731 |
4/0 | 7 | 0.38 | 4.45 | 3.18 | 28.7 | 15.30 | 829 |
266.8 | 19 | 0.38 | 4.45 | 3.18 | 30.2 | 19.89 | 946 |
336.4 | 19 | 0.38 | 4.45 | 3.18 | 32.1 | 24.57 | 1094 |
397.5 | 19 | 0.38 | 4.45 | 3.18 | 33.3 | 28.44 | 1210 |
477 | 19 | 0.38 | 4.45 | 3.18 | 35.1 | 33.30 | 1369 |
556.5 | 37 | 0.51 | 4.45 | 3.18 | 37.3 | 39.87 | 1538 |
636 | 37 | 0.51 | 4.45 | 3.18 | 38.8 | 45.36 | 1688 |
795 | 37 | 0.51 | 4.45 | 3.18 | 41.4 | 55.62 | 1980 |
46kV Tree Wire
Size (kcmil) |
No. of Wires |
Covering Thickness | Cable Diameter | Rated Strength |
Weight | ||
Conductor Shield | Inner Layer | Outer Layer | |||||
No. | mm | mm | mm | mm | kN | kg/km | |
3-Layer 46kV AAAC/XLPE/HDPE | |||||||
48.69 | 7 | 0.38 | 5.72 | 4.45 | 27.7 | 7.83 | 640 |
77.47 | 7 | 0.38 | 5.72 | 4.45 | 29.3 | 12.4 | 734 |
123.3 | 7 | 0.38 | 5.72 | 4.45 | 31.5 | 18.9 | 873 |
155.4 | 7 | 0.38 | 5.72 | 4.45 | 32.6 | 23.8 | 955 |
195.7 | 7 | 0.38 | 5.72 | 4.45 | 34.0 | 30.0 | 1060 |
246.9 | 7 | 0.38 | 5.72 | 4.45 | 35.5 | 37.8 | 1182 |
312.8 | 19 | 0.38 | 5.72 | 4.45 | 37.2 | 46.5 | 1332 |
394.5 | 19 | 0.38 | 5.72 | 4.45 | 39.7 | 58.6 | 1531 |
465.4 | 19 | 0.38 | 5.72 | 4.45 | 40.7 | 69.2 | 1666 |
559.5 | 19 | 0.51 | 5.72 | 4.45 | 42.7 | 83.1 | 1864 |
652.4 | 19 | 0.51 | 5.72 | 4.45 | 44.1 | 97.0 | 2043 |
740.8 | 37 | 0.51 | 5.72 | 4.45 | 45.6 | 107 | 2214 |
927.2 | 37 | 0.51 | 5.72 | 4.45 | 48.5 | 135 | 2575 |
Size (AWG or kcmil) |
No. of Wires |
Covering Thickness | Cable Diameter | Rated Strength |
Weight | ||
Conductor Shield | Inner Layer | Outer Layer | |||||
No. | mm | mm | mm | mm | kN | kg/km | |
3-Layer 46kV AAC/XLPE/HDPE | |||||||
1/0 | 7 | 0.38 | 5.72 | 4.45 | 30.4 | 7.96 | 810 |
2/0 | 7 | 0.38 | 5.72 | 4.45 | 31.3 | 9.99 | 880 |
3/0 | 7 | 0.38 | 5.72 | 4.45 | 32.4 | 12.15 | 968 |
4/0 | 7 | 0.38 | 5.72 | 4.45 | 33.8 | 15.30 | 1077 |
266.8 | 19 | 0.38 | 5.72 | 4.45 | 35.3 | 19.89 | 1205 |
336.4 | 19 | 0.38 | 5.72 | 4.45 | 37.2 | 24.57 | 1367 |
397.5 | 19 | 0.38 | 5.72 | 4.45 | 38.4 | 28.44 | 1494 |
477 | 19 | 0.38 | 5.72 | 4.45 | 40.2 | 33.30 | 1666 |
556.5 | 37 | 0.51 | 5.72 | 4.45 | 42.4 | 39.87 | 1853 |
636 | 37 | 0.51 | 5.72 | 4.45 | 43.9 | 45.36 | 2014 |
795 | 37 | 0.51 | 5.72 | 4.45 | 46.5 | 55.62 | 2326 |
