ACSS-Aluminum Conductor Steel Supported

Application

Aluminum Conductor Steel Supported (ACSS) is a composite concentric-lay stranded conductor with one or more layers of hard drawn and annealed 1350-0 aluminum wires on a central core of steel. ACSS are suitable for operating at high temperature without loosing the mechanical properties. The final sag-tension performance is not affected by the long term creep of aluminum.

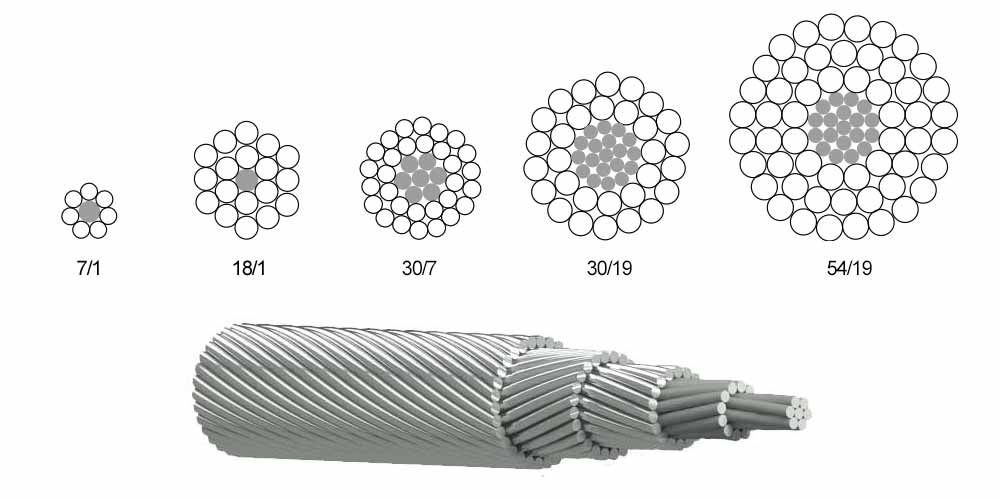

 Construction

ACSS, a non-homogenous conductor, is a concentric-laystranded conductor made from round aluminum 1350-O wires and round, coated steel core wire(s). Steel wires are coated with Class A coating of zinc – 5% aluminum mischmetal alloy. Other Classes of coatings are also available for additional protection from corrosion. Standard, High, Extra and Ultra High Strength steel are also available.


Features

ACSS conductors can be operated up to 250 °C.
ACSS conductors carry more current than ACSR conductors.
ACSS conductors are prone to resist the effects of aeolian.


Standards

ASTM B 609: Standard Specification for Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes.
ASTM B 498: Standard Specification for Zinc-Coated (Galvanized) Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
ASTM B 856: Standard Specification for Concentric-Lay-Stranded Aluminum Conductors, Coated Steel Supported (ACSS).

Parameters

Code Word	Size (kcmil)	Strand -ing (Al/St)	Diameter (in)				Weight (lbs/1000 ft)			Rated Strength (lbs)			Resistance (OHMS/1000ft)		Ampacity @ 200°C (AMPS)
			Individual Wires		Steel Core	Comp Cable
			Al	Steel			Al	Steel	Total	Standard Strength	High* Strength	HS285** Strength	DC @ 20°C	AC @ 75°C
Partridge/ACSS	266.8	26/7	0.1013	0.0788	0.2363	0.642	251.3	115.5	366.8	8880	9730	11400	.0619	.0761	812
Junco/ACSS	266.8	30/7	0.0943	0.0943	0.2829	0.660	251.9	165.5	417.4	11700	13000	15200	.0615	.0756	822
Ostrich/ACSS	300.0	26/7	0.1074	0.0835	0.2506	0.680	282.6	129.9	412.5	10000	10900	12800	.0551	.0677	877
Linnet/ACSS	336.4	26/7	0.1137	0.0885	0.2654	0.720	316.8	145.7	462.5	11200	12300	14400	.0491	.0604	945
Oriole/ACSS	336.4	30/7	0.1059	0.1059	0.3177	0.741	317.6	208.7	526.3	14800	16300	19100	.0488	.0600	957
Brant/ACSS	397.5	24/7	0.1287	0.0858	0.2574	0.772	374.4	137.0	511.4	11000	12100	14100	.0417	.0514	1047
Ibis/ACSS	397.5	26/7	0.1236	0.0962	0.2885	0.783	374.4	172.1	546.5	13000	14200	16500	.0416	.0512	1054
Lark/ACSS	397.5	30/7	0.1151	0.1151	0.3453	0.806	375.3	246.5	621.8	17500	19300	22600	.0413	.0508	1068
Flicker/ACSS	477	24/7	0.1410	0.0940	0.2819	0.846	449.3	164.4	613.7	13000	14200	16400	.0348	.0429	1180
Hawk/ACSS	477	26/7	0.1354	0.1053	0.3160	0.858	449.3	206.5	655.8	15600	17100	19800	.0346	.0427	1188
Hen/ACSS	477	30/7	0.1261	0.1261	0.3783	0.883	450.4	295.9	746.3	21000	22700	26700	.0344	.0424	1204
Parakeet/ACSS	556.5	24/7	0.1523	0.1015	0.3045	0.914	524.0	192.0	716.0	15200	16600	19100	.0298	.0368	1306
Dove/ACSS	556.5	26/7	0.1463	0.1138	0.3413	0.927	524.2	240.9	765.1	18200	19900	23200	.0297	.0366	1315
Eagle/ACSS	556.5	30/7	0.1362	0.1362	0.4086	0.953	525.4	345.2	870.6	24500	26500	31100	.0295	.0363	1331
Peacock/ACSS	605	24/7	0.1588	0.1058	0.3175	0.953	569.8	208.5	778.3	16500	18100	20800	.0274	.0339	1379
Squab/ACSS	605	26/7	0.1525	0.1186	0.3559	0.966	569.8	261.9	831.7	19700	21300	25200	.0273	.0337	1389
Wood Duck/ACSS	605	30/7	0.1420	0.1420	0.4260	0.994	571.2	375.3	946.5	26000	28300	33300	.0271	.0334	1407
Teal/ACSS	605	30/19	0.1420	0.0852	0.4260	0.994	571.2	367.4	938.6	26600	29300	34800	.0272	.0335	1406
Rook/ACSS	636	24/7	0.1628	0.1085	0.3256	0.977	599.0	219.2	818.2	17300	19000	21900	.0261	.0322	1425
Grosbeak/ACSS	636	26/7	0.1564	0.1216	0.3649	0.991	599.0	275.4	874.4	20700	22400	26000	.0260	.0321	1435
Scoter/ACSS	636	30/7	0.1456	0.1456	0.4368	1.019	600.5	394.5	995.0	27400	29700	35000	.0258	.0318	1454
Egret/ACSS	636	30/19	0.1456	0.0874	0.4368	1.019	600.5	386.3	986.8	28000	30900	36600	.0258	.0319	1453
Flamingo/ACSS	666.6	24/7	0.1667	0.1111	0.3333	1.000	627.9	229.7	857.6	18200	19900	22900	.0249	.0308	1470
Gannet/ACSS	666.6	26/7	0.1601	0.1245	0.3736	1.014	627.8	288.6	916.4	21700	23400	27300	.0248	.0306	1480
Stilt/ACSS	715.5	24/7	0.1727	0.1151	0.3453	1.036	673.9	246.5	920.4	19500	21300	24600	.0232	.0287	1540
Starling/ACSS	715.5	26/7	0.1659	0.1290	0.3871	1.051	673.9	309.8	983.7	23300	25200	29800	.0231	.0286	1550
Redwing/ACSS	715.5	30/19	0.1544	0.0927	0.4633	1.081	675.6	434.6	1110.2	30800	34000	39800	.0230	.0284	1570
Cuckoo/ACSS	795	24/7	0.1820	0.1213	0.3640	1.092	748.8	274.0	1022.8	21700	23300	26900	.0209	.0259	1650
Drake/ACSS	795	26/7	0.1749	0.1360	0.4080	1.107	748.8	344.2	1093.0	25900	28000	32600	.0209	.0257	1662
Macaw/ACSS	795	42/7	0.1376	0.0764	0.2293	1.055	748.8	108.7	857.5	11800	12600	14300	.0211	.0262	1621
Tern/ACSS	795	45/7	0.1329	0.0886	0.2658	1.063	748.8	146.1	894.9	14200	15200	17400	.0210	.0263	1618
Condor/ACSS	795	54/7	0.1213	0.1213	0.3640	1.092	748.8	274.0	1022.8	21700	23300	26900	.0209	.0266	1618
Mallard/ACSS	795	30/19	0.1628	0.0977	0.4884	1.139	750.6	482.8	1233.4	34300	37900	44300	.0207	.0255	1683
Ruddy/ACSS	900	45/7	0.1414	0.0943	0.2828	1.131	847.7	165.4	1012.1	15800	17000	19200	.0186	.0233	1755
Canary/ACSS	900	54/7	0.1291	0.1291	0.3873	1.162	847.7	310.1	1157.8	24600	26400	30500	.0184	.0236	1756
Redbird/ACSS	954	24/7	0.1994	0.1329	0.3987	1.196	898.5	328.7	1227.2	26000	28000	32300	.0174	.0217	1859
Rail/ACSS	954	45/7	0.1456	0.0971	0.2912	1.165	898.5	175.3	1073.8	16700	18000	20400	.0175	.0220	1824
Towhee/ACSS	954	48/7	0.1410	0.1097	0.3290	1.175	898.5	223.7	1122.2	19700	21300	24300	.0175	.0218	1842
Cardinal/ACSS	954	54/7	0.1329	0.1329	0.3987	1.196	898.6	328.7	1227.2	26000	28000	32300	.0174	.0223	1825
Canvasback/ACSS	954	30/19	0.1783	0.1070	0.5350	1.248	900.7	579.4	1480.1	41100	45400	53100	.0172	.0214	1897
Snowbird/ACSS	1033.5	42/7	0.1569	0.0871	0.2614	1.203	973.4	141.3	1114.7	15400	16500	18500	.0162	.0204	1924
Ortolan/ACSS	1033.5	45/7	0.1515	0.1010	0.3031	1.212	973.4	190.0	1163.4	18100	19500	22000	.0162	.0204	1921
Curlew/ACSS	1033.5	54/7	0.1383	0.1383	0.4150	1.245	973.4	356.2	1329.6	28200	30300	35000	.0161	.0206	1924
Bluejay/ACSS	1113	45/7	0.1573	0.1048	0.3145	1.258	1048.3	204.5	1252.8	19500	21100	23800	.0150	.0190	2017
Finch/ACSS	1113	54/19	0.1436	0.0861	0.4307	1.292	1053.4	375.5	1428.9	30400	33200	38700	.0150	.0193	2015
Bunting/ACSS	1192.5	45/7	0.1628	0.1085	0.3256	1.302	1123.2	219.2	1342.4	21400	23500	25400	.0140	.0178	2110
Bittern/ACSS	1272	45/7	0.1681	0.1121	0.3363	1.345	1198.0	234.0	1432.0	22300	24000	27100	.0131	.0167	2201
Pheasant/ACSS	1272	54/19	0.1535	0.0921	0.4604	1.381	1203.9	429.2	1633.1	34100	37300	43000	.0131	.0169	2200
Dipper/ACSS	1351	45/7	0.1733	0.1155	0.3465	1.386	1272.5	248.3	1520.8	23700	25500	28800	.0124	.0158	2289
Martin/ACSS	1351	54/19	0.1582	0.0949	0.4745	1.424	1278.7	455.8	1734.5	36200	39600	45600	.0123	.0160	2288
Bobolink/ACSS	1431	45/7	0.1783	0.1189	0.3566	1.427	1347.8	263.0	1610.8	25100	27000	30500	.0117	.0150	2375
Plover/ACSS	1431	54/19	0.1628	0.0977	0.4884	1.465	1354.4	482.8	1837.2	38400	41900	48300	.0117	.0151	2375
Nuthatch/ACSS	1510	45/7	0.1832	0.1221	0.3664	1.465	1422.2	277.5	1699.7	26500	28100	31800	.0111	.0143	2459
Parrot/ACSS	1510	54/19	0.1672	0.1003	0.5017	1.505	1429.2	509.5	1938.7	40400	44200	51000	.0110	.0144	2460
Ratite/ACSS	1590	42/7	0.1946	0.1081	0.3243	1.492	1497.6	217.4	1715.0	23400	25000	27900	.0105	.0136	2543
Lapwing/ACSS	1590	45/7	0.1880	0.1253	0.3759	1.504	1497.6	292.2	1789.8	27900	29600	33500	.0105	.0136	2543
Falcon/ACSS	1590	54/19	0.1716	0.1030	0.5148	1.544	1504.9	536.5	2041.4	42600	46600	53700	.0105	.0137	2545
Chukar/ACSS	1780	84/19	0.1456	0.0873	0.4367	1.601	1684.7	386.1	2070.8	35400	38200	43900	.0094	.0122	2751
Mockingbird/ACSS	2034.5	72/7	0.1681	0.1121	0.3362	1.681	1925.6	233.7	2159.3	27200	28900	32000	.0083	.0110	2960
Roadrunner/ACSS	2057	76/19	0.1645	0.0768	0.3839	1.700	1946.9	298.3	2245.2	31700	33900	38300	.0082	.0108	2992
Bluebird/ACSS	2156	84/19	0.1602	0.0961	0.4806	1.762	2040.6	467.6	2508.2	42100	45500	51700	.0078	.0103	3106
Kiwi/ACSS	2167	72/7	0.1735	0.1157	0.3470	1.735	2051.0	248.9	2299.9	29000	30800	34100	.0078	.0104	3080
Thrasher/ACSS	2312	76/19	0.1744	0.0814	0.4070	1.802	2188.2	335.3	2523.5	35600	38100	43000	.0073	.0098	3218
Joree/ACSS	2515	76/19	0.1819	0.0849	0.4245	1.880	2380.4	364.7	2745.1	38700	41400	46800	.0067	.0092	3390
Notes: Data Based on a nominal cable manufactured in accordance with ASTM B856. Resistance and Ampacity based on an aluminum conductivity of 63%, IACS at 20°C, and a steel conductivity of 8%, IACS at 20°C. Ampacity based on a 200°C conductor temperature, 25°C ambient temperature, 2ft/sec. wind, in sun, with an emissivity of 0.5 and a coefficient of solar absorption of 0.5, at sea level. Rated strength for standard strength core based on Class A Galfan coated steel core wire in accordance with ASTM B802. Rated strength for high strength core based on a Class A Galfan coated high strength steel core wire in accordance with B803. *Designated by “/HS” (e.g. Drake/ACSS/HS) **Designated by “/HS285” (e.g. Drake/ACSS/HS285)

ACSS/AW

Code Word	Size (kcmil)	Stranding (Al/St)	Diameter (in)				Weight Per 1000 ft (lb)				Rated Strength (lb)	Resistance OHMS/1000 ft		Ampacity at 200°C (AMPS)
			Individual Wires		Steel Core	Complete Cable						DC @ 20°C	AC @ 75°C
			Al	Steel			Al		Steel	Total
Junco/ACSS/AW	266.8	30/7	.0943	.0943	.2829	.66	252		140	392	11200	.0589	.0723	841
Ostrich/ACSS/AW	300	26/7	.1074	.0835	.2506	.68	283		110	393	9360	.0534	.0656	891
Linnet/ACSS/AW	336.4	26/7	.1137	.0885	.2654	.72	317		123	440	10500	.0476	.0585	960
Oriole/ACSS/AW	336.4	30/7	.1059	.1059	.3177	.741	318		177	494	14200	.0467	.0573	979
Brant/ACSS/AW	397.5	24/7	.1287	.0858	.2574	.772	374		116	490	10400	.0407	.0501	1061
Ibis/ACSS/AW	397.5	26/7	.1236	.0962	.2885	.783	374		146	520	12400	.0403	.0496	1071
Lark/ACSS/AW	397.5	30/7	.1151	.1151	.3453	.806	375		209	584	16700	.0395	.0486	1092
Flicker/ACSS/AW	477	24/7	.141	.094	.2819	.846	449		139	589	12500	.0339	.0418	1195
Hawk/ACSS/AW	477	26/7	.1354	.1053	.316	.858	449		175	624	14900	.0336	.0413	1207
Hen/ACSS/AW	477	30/7	.1261	.1261	.3783	.883	450		251	701	20100	.0329	.0405	1231
Parakeet/ACSS/AW	556.5	24/7	.1523	.1015	.3045	.914	524		163	687	14600	.0291	.0359	1323
Dove/ACSS/AW	556.5	26/7	.1463	.1138	.3413	.927	524		204	728	17500	.0288	.0355	1336
Eagle/ACSS/AW	556.5	30/7	.1362	.1362	.4086	.953	525		293	818	22900	.0282	.0348	1362
Peacock/ACSS/AW	605	24/7	.1588	.1058	.3175	.953	570		177	746	15900	.0267	.033	1397
Squab/ACSS/AW	605	26/7	.1525	.1186	.3559	.966	570		222	792	19000	.0265	.0327	1411
Wood Duck/ACSS/AW	605	30/7	.142	.142	.426	.994	571		318	889	24400	.026	.032	1439
Teal/ACSS/AW	605	30/19	.142	.0852	.426	.994	571		311	883	25000	.026	.032	1438
Rook/ACSS/AW	636	24/7	.1628	.1085	.3256	.977	599		186	785	16700	.0255	.0314	1444
Grosbeak/ACSS/AW	636	26/7	.1564	.1216	.3649	.991	599		233	832	19900	.0252	.0311	1458
Scoter/ACSS/AW	636	30/7	.1456	.1456	.4368	1.019	600		334	935	25100	.0247	.0305	1487
Egret/ACSS/AW	636	30/19	.1456	.0874	.4368	1.019	600		327	928	26300	.0247	.0305	1486
Flamingo/ACSS/AW	666.6	24/7	.1667	.1111	.3333	1	628		195	823	17500	.0243	.03	1489
Gannet/ACSS/AW	666.6	26/7	.1601	.1245	.3736	1.014	628		245	872	20900	.024	.0297	1504
Stilt/ACSS/AW	715.5	24/7	.1727	.1151	.3453	1.036	674		209	883	18800	.0226	.028	1559
Starling/ACSS/AW	715.5	26/7	.1659	.129	.3871	1.051	674		263	936	22000	.0224	.0277	1576
Redwing/ACSS/AW	715.5	30/19	.1544	.0927	.4633	1.081	676		368	1044	29500	.022	.0272	1605
Cuckoo/ACSS/AW	795	24/7	.182	.1213	.364	1.092	749		232	981	20900	.0204	.0252	1671
Drake/ACSS/AW	795	26/7	.1749	.136	.408	1.107	749		292	1040	24400	.0202	.025	1688
Macaw/ACSS/AW	795	42/7	.1376	.0764	.2293	1.055	749		92	841	11400	.0209	.026	1630
Tern/ACSS/AW	795	45/7	.1329	.0886	.2658	1.063	749		124	873	13500	.0208	.026	1620
Condor/ACSS/AW	795	54/7	.1213	.1213	.364	1.092	749		232	981	15800	.0204	.026	1639
Mallard/ACSS/AW	795	30/19	.1628	.0977	.4884	1.139	751		409	1160	32900	.0198	.0245	1721
Ruddy/ACSS/AW	900	45/7	.1414	.0943	.2828	1.131	848		140	988	15300	.0183	.023	1767
Canary/ACSS/AW	900	54/7	.1291	.1291	.3873	1.162	848		263	1111	23200	.018	.023	1779
Rail/ACSS/AW	954	45/7	.1456	.0971	.2912	1.165	899		149	1047	16200	.0173	.0218	1836
Towhee/ACSS/AW	954	48/7	.141	.1097	.329	1.175	899		190	1088	19000	.0172	.0214	1858
Cardinal/ACSS/AW	954	54/7	.1329	.1329	.3987	1.196	899		279	1177	24600	.017	.0217	1848
Canvasback/ACSS/AW	954	30/19	.1783	.107	.535	1.248	901		491	1392	39400	.0165	.0205	1939
Snowbird/ACSS/AW	1033.5	42/7	.1569	.0871	.2614	1.203	973		120	1093	14800	.0161	.0202	1934
Curlew/ACSS/AW	1033.5	54/7	.1383	.1383	.415	1.245	973		302	1275	26100	.0157	.0201	1948
Bluejay/ACSS/AW	1113	45/7	.1573	.1048	.3145	1.258	1048		173	1222	18900	.0148	.0088	2031
Finch/ACSS/AW	1113	54/19	.1436	.0861	.4307	1.292	1053		318	1372	28800	.0146	.0188	2040
Bunting/ACSS/AW	1192.5	45/7	.1628	.1085	.3256	1.302	1123	186		1309	20300	.0138	.0176	2124
Grackle/ACSS/AW	1192.5	54/19	.1486	.0892	.4458	1.337	1129	341		1470	30800	.0137	.0176	2135
Bittern/ACSS/AW	1272	45/7	.1681	.1121	.3362	1.345	1198		198	1396	21600	.013	.0165	2215
Pheasant/ACSS/AW	1272	54/19	.1535	.0921	.4604	1.381	1204		364	1568	32800	.0128	.0165	2227
Dipper/ACSS/AW	1351	45/7	.1733	.1155	.3465	1.386	1272		210	1483	23000	.0122	.0156	2304
Martin/ACSS/AW	1351	54/19	.1582	.0949	.4745	1.424	1279		386	1665	34900	.012	.0156	2307
Bobolink/ACSS/AW	1431	45/7	.1783	.1189	.3566	1.427	1348		223	1571	24300	.0115	.0148	2391
Plover/ACSS/AW	1431	54/19	.1628	.0977	.4884	1.465	1354		409	1764	36900	.0114	.0148	2405
Nuthatch/ACSS/AW	1510	45/7	.1832	.1221	.3664	1.465	1422		235	1657	25700	.0109	.0141	2476
Parrot/ACSS/AW	1510	54/19	.1672	.1003	.5017	1.505	1429		432	1861	38900	.0108	.0141	2491
Lapwing/ACSS/AW	1590	45/7	.188	.1253	.3759	1.504	1498		248	1745	27000	.0104	.0134	2560
Falcon/ACSS/AW	1590	54/19	.1716	.103	.5148	1.544	1505		455	1960	41100	.0102	.0134	2576
Chukar/ACSS/AW	1780	84/19	.1456	.0873	.4367	1.601	1685		327	2012	33600	.0093	.012	2772
Mockingbird/ACSS/AW	2034.5	72/7	.1681	.1121	.3362	1.681	1926		198	2124	26500	.0082	.0109	2972
Roadrunner/ACSS/AW	2057	76/19	.1645	.0768	.3839	1.7	1947		253	2200	30300	.0081	.0108	3007
Bluebird/ACSS/AW	2156	84/19	.1602	.0961	.4806	1.762	2041		396	2437	40700	.0077	.0102	3130
Kiwi/ACSS/AW	2167	72/7	.1735	.1157	.347	1.735	2051		211	2262	28200	.0077	.0104	3092
Thrasher/ACSS/AW	2312	76/19	.1744	.0814	.407	1.802	2188		284	2472	34100	.0072	.0097	3235
Joree/ACSS/AW	2515	76/19	.1819	.0849	.4245	1.88	2380		309	2689	37100	.0066	.0091	3407
	Notes: Data based on a nominal cable manufactured in accordance with ASTM B 856. Resistance and ampacity based on an aluminum conductivity of 63% IACS at 20°C, and an aluminum-clad steel conductivity of 20.3% IACS at 20°C. Ampacity based on a 200°C conductor temperature, 25°C ambient temperature, 2 ft/sec wind, in sun, with emissivity of 0.5 and a coefficient of solar absorption of 0.5, at sea level. (4) Rated strengths based on aluminum-clad steel core wire in accordance with ASTM B 502.


ACSS/TW

Shaped Wire Concentric-Lay Compact Aluminum Conductors Steel Supported (ACSS/TW) Area Equal to Standard ACSR Sizes
Code Word	Size (kcmil)	Type No.	Cross Sectional Area (in2)		Stranding			Diameter (in)		Weight (lbs/1000 ft)			Rated Breaking Strength (lbs)			Resistance (ohms/mile)		Ampacity (amps)
			Aluminum	Total	No of Layers of Aluminum	No. of Aluminum Wires	No. & Diameter Individual Steel Wire	Steel Core	Complete Cable	Alum.	Steel	Total	Standard Strength	High Strength	HS-285	DC @ 20°C	AC @ 75°C	@ 75°C	@ 100°C	@ 150°C	@ 200°C	@ 250°C
Partridge/ACSS/TW	266.8	16	0.2094	0.2435	2	14	7 x 0.0788	0.2364	0.595	250.5	115.6	366.1	8,880	9,730	11,400	0.3262	0.4009	454	553	692	795	880
Linnet/ACSS/TW	336.4	16	0.2641	0.3070	2	16	7 x 0.0885	0.2655	0.667	316.1	145.8	461.9	11,200	12,300	14,400	0.2588	0.3181	523	638	801	921	1021
Oriole/ACSS/TW	336.4	23	0.2642	0.3258	2	16	7 x 0.1059	0.3177	0.692	318.2	209.2	527.4	14,800	16,300	19,100	0.2565	0.3151	533	650	816	940	1043
Flicker/ACSS/TW	477.0	13	0.3747	0.4233	2	18	7 x 0.0940	0.2820	0.776	447.8	164.5	612.3	13,000	14,200	16,400	0.1831	0.2255	648	793	998	1151	1279
Hawk/ACSS/TW	477.0	16	0.3746	0.4356	2	18	7 x 0.1054	0.3162	0.790	448.7	206.4	655.1	15,600	17,100	19,800	0.1825	0.2247	652	799	1005	1159	1289
Hen/ACSS/TW	477.0	23	0.3747	0.4621	2	20	7 x 0.1261	0.3783	0.820	451.1	296.6	747.8	21,000	22,700	26,700	0.1809	0.2225	663	813	1024	1181	1315
Parakeet/ACSS/TW	556.5	13	0.4371	0.4937	2	18	7 x 0.1015	0.3045	0.835	522.4	191.8	714.2	15,200	16,600	19,100	0.1569	0.1935	713	874	1102	1271	1415
Dove/ACSS/TW	556.5	16	0.4371	0.5083	2	20	7 x 0.1138	0.3414	0.850	523.4	241.1	764.5	18,200	19,900	23,100	0.1564	0.1928	719	881	1111	1282	1427
Rook/ACSS/TW	636.0	13	0.4995	0.5643	2	20	7 x 0.1085	0.3255	0.893	597.0	219.2	816.2	17,300	19,000	21,900	0.1373	0.1696	775	951	1200	1386	1544
Grosbeak/ACSS/TW	636.0	16	0.4995	0.5808	2	20	7 x 0.1216	0.3648	0.909	601.5	275.8	877.3	20,700	22,400	26,000	0.1369	0.1689	781	958	1210	1398	1557
Scoter/ACSS/TW	636.0	23	0.4995	0.6160	2	22	7 x 0.1456	0.4368	0.942	600.5	394.7	995.2	27,400	29,700	35,000	0.1356	0.1672	795	976	1234	1427	1591
Tern/ACSS/TW	795.0	7	0.6244	0.6675	2	17	7 x 0.0886	0.2658	0.960	745.2	146.1	891.3	14,200	15,200	17,400	0.1105	0.1373	878	1080	1366	1580	1762
Puffin/ACSS/TW	795.0	11	0.6244	0.6919	2	18	7 x 0.1056	0.3168	0.980	745.9	228.5	974.4	17,700	19,200	22,000	0.1101	0.1365	886	1090	1378	1595	1778
Condor/ACSS/TW	795.0	13	0.6244	0.7053	2	20	7 x 0.1213	0.3639	0.993	746.3	273.9	1020.0	21,700	23,300	26,900	0.1098	0.1361	890	1095	1386	1604	1789
Drake/ACSS/TW	795.0	16	0.6244	0.7261	2	20	7 x 0.1360	0.4080	1.010	747.0	344.3	1091.3	25,900	28,000	32,600	0.1095	0.1355	896	1103	1396	1616	1803
Canary/ACSS/TW	900.0	13	0.7069	0.7983	2	20	7 x 0.1291	0.3873	1.055	844.8	310.9	1155.7	24,600	26,400	30,500	0.0970	0.1205	962	1185	1501	1739	1942
Phoenix/ACSS/TW	954.0	5	0.7493	0.7876	3	30	7 x 0.0837	0.2511	1.044	897.7	130.4	1028.0	14,200	15,200	17,100	0.0927	0.1187	967	1189	1503	1740	1940
Rail/ACSS/TW	954.0	7	0.7493	0.8011	3	32	7 x 0.0971	0.2913	1.061	898.6	175.5	1074.1	16,700	18,000	20,400	0.0926	0.1183	972	1196	1512	1750	1953
Cardinal/ACSS/TW	954.0	13	0.7493	0.8464	2	20	7 x 0.1329	0.3987	1.080	895.5	328.8	1224.3	26,000	28,000	32,300	0.0915	0.1138	997	1229	1558	1806	2016
Snowbird/ACSS/TW	1033.5	5	0.8117	0.8534	3	30	7 x 0.0871	0.2613	1.089	972.5	141.2	1114.0	15,400	16,400	18,500	0.0856	0.1098	1016	1251	1584	1834	2048
Ortolan/ACSS/TW	1033.5	7	0.8117	0.8678	3	32	7 x 0.1010	0.3030	1.102	972.5	189.9	1162.0	18,100	19,500	22,000	0.0854	0.1095	1021	1257	1592	1843	2058
Curlew/ACSS/TW	1033.5	13	0.8117	0.9169	2	22	7 x 0.1383	0.4149	1.132	970.1	356.1	1326.2	28,200	30,300	35,000	0.0845	0.1053	1048	1293	1641	1903	2126
Avocet/ACSS/TW	1113.0	5	0.8742	0.9191	3	30	7 x 0.0904	0.2712	1.129	1047.0	152.1	1199.0	16,300	17,500	19,500	0.0794	0.1022	1063	1310	1661	1925	2150



Shaped Wire Concentric-Lay Compact Aluminum Conductors Steel Supported (ACSS/TW) Area Equal to Standard ACSR Sizes
Code Word	Size (kcmil)	Type No.	Cross Sectional Area (in2)		Stranding			Diameter (in)		Weight (lbs/1000 ft)			Rated Breaking Strength (lbs)			Resistance (ohms/mile)		Ampacity (amps)
			Aluminum	Total	No of Layers of Aluminum	No. of Aluminum Wires	No. & Diameter Individual Steel Wire	Steel Core	Complete Cable	Alum.	Steel	Total	Standard Strength	High Strength	HS-285	DC @ 20°C	AC @ 75°C	@ 75°C	@ 100°C	@ 150°C	@ 200°C	@ 250°C
Bluejay/ACSS/TW	1113.0	7	0.8742	0.9347	3	33	7 x 0.1049	0.3147	1.143	1048.0	204.8	1253.0	19,500	21,000	23,800	0.0793	0.1019	1068	1317	1669	1935	2161
Finch/ACSS/TW	1113.0	13	0.8743	0.9852	3	38	19 x 0.0862	0.4310	1.185	1051.0	376.1	1427.0	30,400	33,200	38,700	0.0789	0.1010	1084	1336	1695	1965	2196
Oxbird/ACSS/TW	1192.5	5	0.9366	0.9848	3	30	7 x 0.0936	0.2808	1.170	1122.9	163.1	1286.0	17,500	18,700	20,900	0.0741	0.0957	1108	1367	1735	2013	2249
Bunting/ACSS/TW	1192.5	7	0.9366	1.0013	3	34	7 x 0.1085	0.3255	1.181	1123.2	219.6	1342.8	20,900	22,500	25,400	0.0740	0.0954	1114	1374	1744	2023	2261
Grackle/ACSS/TW	1192.5	13	0.9366	1.0554	3	38	19 x 0.0892	0.4460	1.225	1127.8	402.9	1530.7	32,600	35,500	41,500	0.0737	0.0944	1130	1395	1771	2055	2298
Scissortail/ACSS/TW	1272.0	5	0.9991	1.0505	3	30	7 x 0.0967	0.2901	1.203	1197.0	174.0	1371.0	18,700	20,000	22,300	0.0695	0.0900	1152	1423	1807	2098	2346
Bittern/ACSS/TW	1272.0	7	0.9990	1.0681	3	38	7 x 0.1121	0.3363	1.224	1197.6	234.9	1432.5	22,300	24,000	27,100	0.0694	0.0897	1159	1431	1817	2110	2360
Pheasant/ACSS/TW	1272.0	13	0.9990	1.1256	3	39	19 x 0.0921	0.4605	1.260	1201.0	429.5	1630.5	34,100	37,300	43,000	0.0691	0.0887	1176	1452	1846	2143	2398
Dipper/ACSS/TW	1351.5	7	1.0615	1.1348	3	35	7 x 0.1155	0.3465	1.256	1273.0	248.3	1521.0	23,700	25,500	28,800	0.0653	0.0847	1202	1485	1888	2194	2455
Martin/ACSS/TW	1351.5	13	1.0615	1.1959	3	42	19 x 0.0949	0.4745	1.300	1276.1	456.0	1732.1	36,200	39,600	45,600	0.0650	0.0837	1220	1508	1918	2228	2494
Bobolink/ACSS/TW	1431.0	7	1.1236	1.2017	3	36	7 x 0.1189	0.3567	1.291	1347.0	263.1	1611.0	25,100	27,000	30,500	0.0617	0.0802	1243	1538	1958	2276	2549
Plover/ACSS/TW	1431.0	13	1.1239	1.2664	3	44	19 x 0.0977	0.4885	1.337	1351.0	483.2	1834.0	38,400	41,900	48,300	0.0614	0.0793	1263	1562	1989	2313	2590
Lapwing/ACSS/TW	1590.0	7	1.2488	1.3351	3	36	7 x 0.1253	0.3759	1.358	1497.6	292.3	1789.9	27,900	29,600	33,500	0.0555	0.0727	1324	1640	2092	2435	2730
Falcon/ACSS/TW	1590.0	13	1.2488	1.4071	3	42	19 x 0.1030	0.5150	1.410	1502.8	537.2	2040.0	42,600	46,600	53,700	0.0553	0.0717	1346	1668	2127	2477	2777
Chukar/ACSS/TW	1780.0	8	1.3986	1.5126	3	38	19 x 0.0874	0.4370	1.445	1680.6	386.8	2067.4	35,300	38,200	43,900	0.0495	0.0652	1421	1764	2255	2630	2952
Bluebird/ACSS/TW	2156.0	8	1.6933	1.8309	4	64	19 x 0.0961	0.4805	1.608	2045.0	467.5	2512	42,100	45,500	51,700	0.0412	0.0543	1601	1999	2573	3014	3396
Data based on a nominal cable manufactured in accordance with ASTM B 857. Resistance and ampacity based on an aluminum conductivity of 63% IACS at 20°C and a steel conductivity of 8% IACS at 20°C. Ampacity based on referenced conductor temperature, 25°C ambient temperature, 2 ft/sec wind, in sun, with an emmisivity of 0.5 and a coefficient of solar absorption of 0.5, at sea level. Rated breaking strength for standard core based on Class A Galfan coated steel core wire in accordance with ASTM B 802. Rated strength for high strength core based on Class A Galfan coated high strength steel core wire in accordance with ASTM B 803. The final design of a shaped wire compact conductor is contingent upon several factors such as: layer diameter, wire width and wire thickness. The actual configuration of a given size may vary between manufacturers. This may result in a slight variation in the number of wires, number of layers and dimensions of individual wires from that shown in the chart.



Shaped Wire Concentric-Lay Compact Aluminum Conductors Steel Supported (ACSS/TW) Diameter Equal to Standard ACSR Sizes
Code Word		Size (kcmil)	Type No.	Cross Sectional Area (in2)		Stranding				Diameter (in)		Weight (lbs/1000 ft)			Rated Breaking Strength (lbs)			Resistance (ohms/mile)				Ampacity (amps)
				Aluminum	Total	No of Layers of Aluminum	No. of Aluminum Wires		No. & Diameter Individual Steel Wire	Steel Core	Complete Cable	Alum.	Steel	Total	Standard Strength	High Strength	HS-285	DC @ 20°C		AC @ 75°C		@ 75°C	@ 100°C	@ 150°C	@ 200°C	@ 250°C
Mohawk/ACSS/TW		571.7	13	0.4490	0.5074	2	18		7 x 0.1030	0.3090	0.850	537.0	197.5	734.5	15,600	17,100	19,700	0.1527		0.1884		725	889	1121	1294	1441
Calumet/ACSS/TW		565.3	16	0.4439	0.5162	2	20		7 x 0.1146	0.3438	0.860	531.2	244.5	775.7	18,400	20,200	23,500	0.1540		0.1898		725	890	1122	1295	1442
Mystic/ACSS/TW		666.6	13	0.5236	0.5914	2	20		7 x 0.1244	0.3732	0.913	630.4	230.3	860.7	18,200	19,900	22,900	0.1310		0.1619		798	980	1238	1431	1595
Oswego/ACSS/TW		664.8	16	0.5221	0.6072	2	20		7 x 0.1244	0.3732	0.927	628.7	288.7	917.4	21,700	23,400	27,200	0.1309		0.1616		802	985	1244	1439	1604
Maumee/ACSS/TW		768.2	13	0.6034	0.6819	2	20		7 x 0.1195	0.3585	0.977	721.1	265.9	987.0	21,000	23,000	26,500	0.1137		0.1407		872	1072	1356	1569	1750
Wabash/ACSS/TW		762.8	16	0.5992	0.6966	2	20		7 x 0.1331	0.3993	0.990	716.7	329.8	1046.5	24,900	26,800	31,200	0.1141		0.1411		873	1074	1359	1573	1755
Kettle/ACSS/TW		957.2	7	0.7518	0.8038	3	32		7 x 0.0973	0.2919	1.060	901.6	176.2	1078.0	16,800	18,100	20,400	0.0922		0.1180		973	1197	1514	1753	1955
Fraser/ACSS/TW		946.7	10	0.7436	0.8168	3	35		7 x 0.1154	0.3462	1.077	892.6	247.9	1141.0	21,100	22,900	26,200	0.0930		0.1187		974	1199	1517	1756	1959
Columbia/ACSS/TW		966.2	13	0.7589	0.8573	2	21		7 x 0.1338	0.4014	1.092	906.9	333.2	1240.0	26,400	28,300	32,800	0.0904		0.1124		1005	1239	1571	1822	2035
Suwannee/ACSS/TW		959.6	16	0.7537	0.8762	2	22		7 x 0.1493	0.4479	1.110	901.6	415.0	1316.6	30,700	33,100	38,600	0.0907		0.1127		1008	1243	1576	1828	2042
Cheyenne/ACSS/TW		1168.1	5	0.9175	0.9646	3	30		7 x 0.0926	0.2778	1.155	1099.0	159.6	1259.0	17,200	18,300	20,500	0.0757		0.0979		1095	1350	1712	1986	2219
Genesee/ACSS/TW		1158.0	7	0.9095	0.9733	3	34		7 x 0.1078	0.3234	1.165	1092.0	216.0	1308.0	20,500	22,100	25,000	0.0762		0.0981		1094	1350	1712	1985	2218
Hudson/ACSS/TW		1158.4	13	0.9098	1.0281	2	24		7 x 0.1467	0.4401	1.196	1087.3	400.7	1488.0	31,100	33,500	38,800	0.0754		0.0943		1124	1389	1766	2051	2295
Catawba/ACSS/TW		1272.0	5	0.9991	1.0505	3	30		7 x 0.0967	0.2901	1.203	1197.0	174.0	1371.0	18,700	20,000	22,300	0.0695		0.0900		1152	1423	1807	2098	2346
Nelson/ACSS/TW		1257.1	7	0.9874	1.0557	3	35		7 x 0.1115	0.3345	1.213	1184.0	231.4	1415.0	22,100	23,800	26,900	0.0702		0.0907		1150	1420	1804	2094	2342
Yukon/ACSS/TW		1233.6	13	0.9689	1.0925	3	38		19 x 0.0910	0.4550	1.245	1166.7	419.3	1586.0	33,200	36,300	41,900	0.0712		0.0914		1154	1425	1810	2101	2350
Truckee/ACSS/TW		1372.5	5	1.0780	1.1334	3	30		7 x 0.1004	0.3012	1.248	1292.0	187.6	1479.0	20,200	21,500	24,000	0.0644		0.0838		1206	1491	1896	2203	2466
Mackenzie/ACSS/TW		1359.7	7	1.0679	1.1418	3	36		7 x 0.1159	0.3477	1.259	1281.0	250.0	1531.0	23,900	25,700	29,000	0.0649		0.0842		1206	1490	1895	2202	2465
Thames/ACSS/TW		1334.6	13	1.0480	1.1809	3	38		19 x 0.0944	0.4720	1.290	1260.1	451.2	1711.3	35,800	39,100	45,100	0.0658		0.0847		1210	1495	1902	2209	2472
St. Croix/ACSS/TW		1467.8	5	1.1529	1.2124	3	33		7 x 0.1041	0.3123	1.292	1381.0	201.7	1583.0	21,600	23,100	25,800	0.0602		0.0787		1256	1554	1979	2302	2578
Miramichi/ACSS/TW		1455.3	7	1.1430	1.2222	3	36		7 x 0.1200	0.3600	1.302	1372.0	268.0	1640.0	25,600	27,100	30,700	0.0607		0.0790		1269	1573	2007	2338	2577
Shaped Wire Concentric-Lay Compact Aluminum Conductors Steel Supported (ACSS/TW) Diameter Equal to Standard ACSR Sizes
Code Word	Size (kcmil)	Type No.	Cross Sectional Area (in2)		Stranding					Diameter (in)		Weight (lbs/1000 ft)			Rated Breaking Strength (lbs)				Resistance (ohms/mile)			Ampacity (amps)
			Aluminum	Total	No of Layers of Aluminum	No. of Aluminum Wires		No. & Diameter Individual Steel Wire		Steel Core	Complete Cable	Alum.	Steel	Total	Standard Strength	High Strength	HS-285		DC @ 20°C		AC @ 75°C	@ 75°C	@ 100°C	@ 150°C	@ 200°C	@ 250°C
Merrimack/ACSS/TW	1433.6	13	1.1250	1.2677	3	39		19 x 0.0978		0.4890	1.340	1355.8	484.3	1840.1	38,400	42,000	48,400		0.0613		0.0791	1277	1584	2021	2354	2595
Platte/ACSS/TW	1569.0	5	1.2323	1.2957	3	33		7 x 0.1074		0.3222	1.334	1478	215.0	1693	23,100	24,600	27,500		0.0564		0.0740	1319	1637	2092	2439	2692
Potomac/ACSS/TW	1557.4	7	1.2232	1.3079	3	36		7 x 0.1241		0.3723	1.350	1466.9	288.1	1755	27,300	29,000	32,800		0.0567		0.0741	1321	1639	2094	2441	2694
Rio Grande/ACSS/TW	1533.3	13	1.2043	1.3571	3	38		19 x 0.1012		0.5060	1.380	1449.0	519.0	1968.0	41,200	45,000	51,900		0.0573		0.0742	1329	1650	2108	2456	2710
Schuylkill/ACSS/TW	1657.4	7	1.3020	1.3920	3	36		7 x 0.1280		0.3840	1.386	1563	305.0	1868	29,100	30,900	34,900		0.0533		0.0700	1370	1702	2177	2539	2805
Pecos/ACSS/TW	1622.0	13	1.2739	1.4429	3	39		19 x 0.1064		0.5320	1.420	1533.7	573.2	2106.9	45,000	49,300	56,900		0.0541		0.0703	1377	1710	2187	2551	2816
Pee Dee/ACSS/TW	1758.6	7	1.3810	1.4770	3	38		7 x 0.1319		0.3957	1.427	1656.4	323.9	1980.3	30,900	32,800	37,100		0.0502		0.0663	1418	1763	2259	2637	2916
James/ACSS/TW	1730.6	13	1.3590	1.5314	3	34		19 x 0.1075		0.5375	1.470	1636	585.0	2221	46,400	50,800	58,500		0.0508		0.0663	1430	1778	2277	2657	2937
Athabaska/ACSS/TW	1949.6	7	1.5312	1.6377	3	44		7 x 0.1392		0.4176	1.504	1836	360.7	2197	34,300	36,500	41,300		0.0453		0.0595	1505	1873	2403	2808	3157
Cumberland/ACSS/TW	1926.9	13	1.5134	1.7049	3	42		19 x 0.1133		0.5665	1.550	1821	650.0	2471	51,600	56,400	65,000		0.0456		0.0600	1508	1875	2400	2802	3148
Powder/ACSS/TW	2153.8	8	1.6912	1.8290	4	64		19 x 0.0961		0.4805	1.602	2042.5	396.1	2438.6	42,100	45,500	51,700		0.0412		0.0543	1599	1996	2569	3009	3391
Santee/ACSS/TW	2627.3	8	2.0630	2.2268	4	64		19 x 0.1062		0.5310	1.761	2491.5	571.1	3062.6	51,300	55,600	63,100		0.0338		0.0459	1784	2237	2894	3403	3846
Data based on a nominal cable manufactured in accordance with ASTM B 857. Resistance and ampacity based on an aluminum conductivity of 63% IACS at 20°C and a steel conductivity of 8% IACS at 20°C. Ampacity based on referenced conductor temperature, 25°C ambient temperature, 2 ft/sec wind, in sun, with an emmisivity of 0.5 and a coefficient of solar absorption of 0.5, at sea level. Rated breaking strength for standard core based on Class A Galfan coated steel core wire in accordance with ASTM B 802. Rated strength for high strength core based on Class A Galfan coated high strength steel core wire in accordance with ASTM B 803. The final design of a shaped wire compact conductor is contingent upon several factors such as: layer diameter, wire width and wire thickness. The actual configuration of a given size may vary between manufacturers. This may result in a slight variation in the number of wires, number of layers and dimensions of individual wires from that shown in the chart.
