H07RN-F cable

Uni-Cable's H07RN-F cable is a heavy-duty rubber flexible trailing cable for power supply designed to provide high flexibility and to withstand chemical, mechanical, and thermal stresses. It is suitable for applications such as handling equipment, mobile power supplies, worksites, stage and audio-visual equipment, port areas, and dams. As part of the Uni-Cable portfolio of rubber flexible cables, the tough rubber sheath also makes this cable suitable for use in drainage and water treatment, cold or refrigerated environments, and severe industrial environments. The H07RN-F cable has a voltage rating of 450/750V. The H07RN-F trailing duty cable has a temperature rating of -30℃ to +60℃ for fixed installations (rising to +85℃ for fixed protected installations) and from -15℃ to +60℃ when flexed. Where applications require smaller conductor sizes at a 300/500V voltage rating it is referred to by the harmonized designation H05RN-F, available in core sizes 0.75mm and 1.0mm.

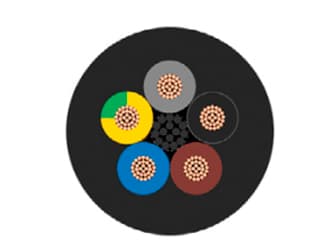

Construction Table

	H07RN-F CABLE
VOLTAGE	450/750V
CONDUCTOR	Class 5 Flexible Stranded Copper
INSULATION	EPR (Ethylene Propylene Rubber)
OUTER SHEATH	PCP (Polychloroprene)

Parameter
H07RN-F Single Core Type 450/750V EPR/PCP Trailing Rubber Cable

Core and Size Mm sq	Stranding (Number of Strand/Strand Diameter	Thickness of Sheath mm	Nominal Overall Diameter mm	Approx. Weight kg/km
1x1.5	30x0.25	0.8	6.0	49
1x 2.5	50x0.25	0.9	6.6	63
1x4	56x0.30	1.0	7.6	92
1x6	84x0.30	1.0	8.3	115
1x10	80x0.40	1.2	10.7	189
1x16	126x0.40	1.2	12.0	260
1x25	196x0.40	1.4	14.1	369
1x35	276x0.40	1.4	15.8	500
1x50	396x0.40	1.6	18.3	689
1x70	360x0.50	1.6	20.7	918
1x95	475x0.50	1.8	23.4	1202
1x120	608x0.50	1.8	25.6	1489
1x150	756x0.50	2.0	28.3	1824
1x185	925x0.50	2.2	31.0	2202
1x240	1221x0.50	2.4	34.5	2847
1x300	1525x0.50	2.6	37.7	3495
1x400	2013x0.50	2.8	37.7	3495
1x500	1769x0.60	3.0	37.7	3495
1x630	2257x0.60	3.0	37.7	3495


H07RN-F 2 Core Type 450/750V EPR/PCP Trailing Rubber Cable

Core and Size Mm sq	Stranding (Number of Strand/Strand Diameter	Thickness of Sheath mm	Nominal Overall Diameter mm	Approx. Weight kg/km
2 X 1.0	32/0.20	0.8	8.4	98
2 X 1.5	30/0.50	0.8	9.4	116
2 X 2.5	50/0.25	0.9	11	164
2 X 4.0	56/0.30	1.0	12.8	232
2 X 6.0	84/0.30	1.0	14.2	297
2 X 10.0	80/0.40	1.2	20.4	573
2 X 16.0	126/0.40	1.2	23	774
2 X 25.0	196/0.40	1.4	27.4	1110
2 X 35.0	276/0.40	1.4	30.8	1474


H07RN-F 3 Core Type 450/750V EPR/PCP Trailing Rubber Cable

Core and Size Mm sq	Stranding (Number of Strand/Strand Diameter	Thickness of Sheath mm	Nominal Overall Diameter mm	Approx. Weight kg/km
3 X 1.0	32/0.20	0.8	9.0	108
3 X 1.5	30/0.50	0.8	10.3	141
3 X 2.5	50/0.25	0.9	11.8	200
3 X 4.0	56/0.30	1.0	13.7	285
3 X 6.0	84/0.30	1.0	15.2	371
3 X 10.0	80/0.40	1.2	21.9	712
3 X 16.0	126/0.40	1.2	24.7	971
3 X 25.0	196/0.40	1.4	29.4	1394


H07RN-F 4 Core Type 450/750V EPR/PCP Trailing Rubber Cable

Core and Size Mm sq	Stranding (Number of Strand/Strand Diameter	Thickness of Sheath mm	Nominal Overall Diameter mm	Approx. Weight kg/km
4 X 1.0	32/0.20	0.8	10.0	134
4 X 1.5	30/0.25	0.8	11.2	174
4 X 2.5	50/0.25	0.9	12.6	249
4 X 4.0	56/0.30	1.0	15.1	361
4 X 6.0	84/0.30	1.0	16.9	480
4 X 10.0	80/0.40	1.2	24	890
4 X 16.0	126/0.40	1.2	27	1225
4 X 25.0	196/0.40	1.4	32.6	1792
4 X 35.0	276/0.4	1.4	36.5	2380
4 X 50.0	396/0.4	1.6	42	3635
4 X 70.0	360/0.5	1.6	49	4830
4 X 95.0	475/0.5	1.8	55	6320


H07RN-F 5 Core Type 450/750V EPR/PCP Trailing Rubber Cable

Core and Size Mm sq	Stranding (Number of Strand/Strand Diameter	Thickness of Sheath mm	Nominal Overall Diameter mm	Approx. Weight kg/km
5 X 1.0	32/0.20	0.8	11.0	170
5 X 1.5	30/0.50	0.8	12.3	218
5 X 2.5	50/0.25	0.9	14.5	309
5 X 4.0	56/0.30	1.0	16.9	450
5 X 6.0	84/0.30	1.0	18.8	595
5 X 10.0	80/0.40	1.2	26.5	1100
5 X 16.0	126/0.40	1.2	30	1528
5 X 25.0	196/0.40	1.4	36	2200
5 X 35.0	276/0.40	1.4	40	2925


H07RN-F Multicore Type 450/750V EPR/PCP Trailing Rubber Cable

Core and Size Mm sq	Stranding (Number of Strand/Strand Diameter	Thickness of Sheath mm	Nominal Overall Diameter mm	Approx. Weight kg/km
7 X 1.5	30/0.50	0.8	14.6	295
7 X 2.5	50/0.25	0.9	16.6	410
12 X 1.5	30/0.50	0.8	18.9	500
12 X 2.5	50/0.25	0.9	22	720
19 X 1.5	30/0.50	0.8	22.5	715
19 X 2.5	50/0.25	0.9	26	1030
24 X 1.5	30/0.50	0.8	25	900
24 X 2.5	50/0.25	0.9	29	1350
27 X 1.5	30/0.50	0.8	29	1100
27 X 2.5	50/0.25	0.9	33	1521
37 X 1.5	30/0.50	0.8	29.8	1300
37 X 2.5	50/0.25	0.9	36	1900

For assistance with selecting the most appropriate rubber-sheathed cable please speak to our technical experts.
