Description

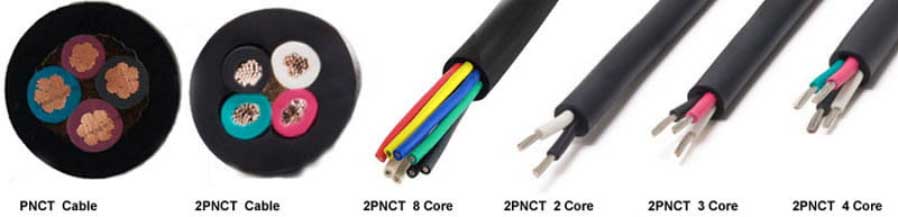

PNCT cable , also called 2PNCT, is a type of captur cable that has a stiff sheath. This type of cable is ideal for low voltage electrical equipment in fields, such as construction, farming, and mining. Cabtyre cables, in general, power electrical equipment. It’s suitable for use in both outdoor and wet condition. The cables are ideal for lightweight hand and workshop tools. The sheath is usually made of flame-retardant material, making it ideal for tough conditions. PNCT cables may have many different variations, although the base structure is the same in all that helps identify them as PNCT.
PNCT Cable Specifications
Voltage:0.6/1kv
Conductor:Copper/tinned copper
Insulation:Rubber/EPR
Cores:1,2, 3, 4, 5, 6 7 core
Standard:
JIS C3327 / IEC 60502-1
Dimensions:
PNCT cable , also called 2PNCT, is a type of captur cable that has a stiff sheath. This type of cable is ideal for low voltage electrical equipment in fields, such as construction, farming, and mining. Cabtyre cables, in general, power electrical equipment. It’s suitable for use in both outdoor and wet condition. The cables are ideal for lightweight hand and workshop tools. The sheath is usually made of flame-retardant material, making it ideal for tough conditions. PNCT cables may have many different variations, although the base structure is the same in all that helps identify them as PNCT.
PNCT Cable Specifications
Voltage:0.6/1kv
Conductor:Copper/tinned copper
Insulation:Rubber/EPR
Cores:1,2, 3, 4, 5, 6 7 core
Standard:
JIS C3327 / IEC 60502-1
Dimensions:
No. of Cores | Conductor Size (mm2) |
Construction (No./mm) | Outer Diameter (mm) | Insulation Thickness (mm) | Sheath Thickness (mm) | Approx. Overall Diameter (mm) | Approx. Mass (kg/km) | Max. Conductor Resistance (20 degrees C) (Ω/km) |
Min. Insulation Resistance (20 degrees C) (MΩ・km) |
Min. Permissible Bending Radius (mm) |
1 | 8 | 50/0.45 | 3.7 | 1 | 1.7 | 9.2 | 150 | 2.45 | 400 | 60 |
14 | 88/0.45 | 4.9 | 1 | 1.8 | 11 | 220 | 1.39 | 300 | 70 | |
22 | 7/20/0.45 | 7 | 1.2 | 1.9 | 13.5 | 340 | 0.892 | 300 | 90 | |
30 | 7/27/0.45 | 8.1 | 1.2 | 2 | 14.5 | 425 | 0.661 | 300 | 90 | |
38 | 7/34/0.45 | 9.1 | 1.2 | 2.1 | 15.5 | 515 | 0.525 | 200 | 100 | |
50 | 19/16/0.45 | 10.4 | 1.5 | 2.2 | 18 | 660 | 0.411 | 200 | 110 | |
60 | 19/20/0.45 | 11.6 | 1.5 | 2.3 | 19 | 790 | 0.329 | 200 | 120 | |
80 | 19/27/0.45 | 13.5 | 2 | 2.5 | 22 | 1080 | 0.243 | 300 | 140 | |
100 | 19/34/0.45 | 15.2 | 2 | 2.6 | 24 | 1310 | 0.193 | 200 | 150 | |
125 | 19/42/0.45 | 16.8 | 2 | 2.6 | 26 | 1550 | 0.156 | 200 | 160 | |
150 | 27/34/0.45 | 18.7 | 2 | 2.7 | 27 | 1760 | 0.136 | 200 | 170 | |
200 | 37/34/0.45 | 21.2 | 2.5 | 3 | 32 | 2410 | 0.0993 | 200 | 200 | |
250 | 37/42/0.45 | 23.6 | 2.5 | 3.2 | 35 | 2920 | 0.0803 | 200 | 210 | |
2 | 0.75 | 30/0.18 | 1.1 | 0.8 | 1.7 | 8.9 | 105 | 26.6 | 500 | 60 |
1.25 | 50/0.18 | 1.5 | 0.8 | 1.7 | 9.7 | 125 | 16 | 500 | 60 | |
2 | 37/0.26 | 1.8 | 0.8 | 1.8 | 10.5 | 155 | 10.2 | 500 | 70 | |
3.5 | 45/0.32 | 2.5 | 0.8 | 1.9 | 12.5 | 220 | 5.54 | 400 | 80 | |
5.5 | 70/0.32 | 3.1 | 1 | 2 | 14.5 | 315 | 3.56 | 400 | 90 | |
8 | 50/0.45 | 3.7 | 1 | 2.1 | 16 | 395 | 2.52 | 400 | 100 | |
14 | 88/0.45 | 4.9 | 1 | 2.2 | 18.5 | 590 | 1.43 | 300 | 120 | |
22 | 7/20/0.45 | 7 | 1.2 | 2.6 | 24 | 950 | 0.919 | 300 | 150 | |
30 | 7/27/0.45 | 8.1 | 1.2 | 2.7 | 26 | 1190 | 0.681 | 300 | 160 | |
38 | 7/34/0.45 | 9.1 | 1.2 | 2.9 | 29 | 1440 | 0.541 | 200 | 180 | |
50 | 19/16/0.45 | 10.4 | 1.5 | 3.1 | 33 | 1810 | 0.423 | 200 | 200 | |
60 | 19/20/0.45 | 11.6 | 1.5 | 3.3 | 36 | 2160 | 0.339 | 200 | 220 | |
80 | 19/27/0.45 | 13.5 | 2 | 3.7 | 42 | 2980 | 0.25 | 300 | 260 | |
100 | 19/34/0.45 | 15.2 | 2 | 3.9 | 45 | 3600 | 0.199 | 200 | 270 | |
3 | 0.75 | 30/0.18 | 1.1 | 0.8 | 1.7 | 9.3 | 115 | 26.6 | 500 | 60 |
1.25 | 50/0.18 | 1.5 | 0.8 | 1.8 | 10.5 | 145 | 16 | 500 | 70 | |
2 | 37/0.26 | 1.8 | 0.8 | 1.8 | 11 | 180 | 10.2 | 500 | 70 | |
3.5 | 45/0.32 | 2.5 | 0.8 | 1.9 | 13 | 260 | 5.54 | 400 | 80 | |
5.5 | 70/0.32 | 3.1 | 1 | 2 | 15.5 | 380 | 3.56 | 400 | 100 | |
8 | 50/0.45 | 3.7 | 1 | 2.1 | 17 | 480 | 2.52 | 400 | 110 | |
14 | 88/0.45 | 4.9 | 1 | 2.3 | 20 | 735 | 1.43 | 300 | 120 | |
22 | 7/20/0.45 | 7 | 1.2 | 2.7 | 26 | 1,180 | 0.919 | 300 | 160 | |
30 | 7/27/0.45 | 8.1 | 1.2 | 2.8 | 28 | 1,480 | 0.681 | 300 | 170 | |
38 | 7/34/0.45 | 9.1 | 1.2 | 3 | 31 | 1810 | 0.541 | 200 | 190 | |
50 | 19/16/0.45 | 10.4 | 1.5 | 3.3 | 36 | 2310 | 0.423 | 200 | 220 | |
60 | 19/20/0.45 | 11.6 | 1.5 | 3.4 | 38 | 2750 | 0.339 | 200 | 230 | |
80 | 19/27/0.45 | 13.5 | 2 | 3.8 | 45 | 3790 | 0.25 | 300 | 270 | |
100 | 19/34/0.45 | 15.2 | 2 | 4.1 | 49 | 4620 | 0.199 | 200 | 300 | |
125 | 19/42/0.45 | 16.8 | 2 | 4.2 | 52 | 5500 | 0.161 | 200 | 320 | |
150 | 27/34/0.45 | 18.7 | 2 | 4.4 | 55 | 6230 | 0.14 | 200 | 330 | |
4 | 0.75 | 30/0.18 | 1.1 | 0.8 | 1.8 | 10.5 | 140 | 26.6 | 500 | 70 |
1.25 | 50/0.18 | 1.5 | 0.8 | 1.8 | 11.5 | 175 | 16 | 500 | 70 | |
2 | 37/0.26 | 1.8 | 0.8 | 1.9 | 12.5 | 220 | 10.2 | 500 | 80 | |
3.5 | 45/0.32 | 2.5 | 0.8 | 2 | 14 | 320 | 5.54 | 400 | 90 | |
5.5 | 70/0.32 | 3.1 | 1 | 2.1 | 17 | 465 | 3.56 | 400 | 110 | |
8 | 50/0.45 | 3.7 | 1 | 2.2 | 18.5 | 590 | 2.52 | 400 | 120 | |
14 | 88/0.45 | 4.9 | 1 | 2.4 | 22 | 910 | 1.43 | 300 | 140 | |
22 | 7/20/0.45 | 7 | 1.2 | 2.8 | 28 | 1,490 | 0.919 | 300 | 170 | |
30 | 7/27/0.45 | 8.1 | 1.2 | 3 | 31 | 1,880 | 0.681 | 300 | 190 | |
38 | 7/34/0.45 | 9.1 | 1.2 | 3.2 | 34 | 2,290 | 0.541 | 200 | 210 | |
50 | 19/16/0.45 | 10.4 | 1.5 | 3.5 | 39 | 2,940 | 0.423 | 200 | 240 | |
60 | 19/20/0.45 | 11.6 | 1.5 | 3.7 | 42 | 3,530 | 0.339 | 200 | 260 | |
80 | 19/27/0.45 | 13.5 | 2 | 4.1 | 50 | 4,860 | 0.25 | 300 | 300 | |
100 | 19/34/0.45 | 15.2 | 2 | 4.4 | 54 | 5,920 | 0.199 | 200 | 330 | |
125 | 19/42/0.45 | 16.8 | 2 | 4.5 | 58 | 7,080 | 0.161 | 200 | 350 | |
150 | 27/34/0.45 | 18.7 | 2 | 4.7 | 61 | 8,020 | 0.14 | 200 | 370 | |
5 | 0.75 | 30/0.18 | 1.1 | 0.8 | 1.8 | 11 | 160 | 26.6 | 500 | 70 |
1.25 | 50/0.18 | 1.5 | 0.8 | 1.9 | 12.5 | 210 | 16 | 500 | 80 | |
2 | 37/0.26 | 1.8 | 0.8 | 1.9 | 13 | 255 | 10.2 | 500 | 80 | |
3.5 | 45/0.32 | 2.5 | 0.8 | 2.1 | 15.5 | 385 | 5.54 | 400 | 100 | |
5.5 | 70/0.32 | 3.1 | 1 | 2.2 | 18.5 | 560 | 3.56 | 400 | 120 | |
8 | 50/0.45 | 3.7 | 1 | 2.3 | 21 | 720 | 2.52 | 400 | 130 | |
14 | 88/0.45 | 4.9 | 1 | 2.6 | 25 | 1,130 | 1.43 | 300 | 150 | |
22 | 7/20/0.45 | 7 | 1.2 | 3 | 31 | 1,810 | 0.919 | 300 | 190 | |
30 | 7/27/0.45 | 8.1 | 1.2 | 3.2 | 35 | 2,290 | 0.681 | 300 | 210 | |
38 | 7/34/0.45 | 9.1 | 1.2 | 3.4 | 38 | 2,800 | 0.541 | 200 | 230 | |
6 | 0.75 | 30/0.18 | 1.1 | 0.8 | 1.8 | 12 | 185 | 26.6 | 500 | 80 |
1.25 | 50/0.18 | 1.5 | 0.8 | 1.9 | 13.5 | 245 | 16 | 500 | 90 | |
2 | 37/0.26 | 1.8 | 0.8 | 2 | 14.5 | 305 | 10.2 | 500 | 90 | |
3.5 | 45/0.32 | 2.5 | 0.8 | 2.1 | 17 | 455 | 5.54 | 400 | 110 | |
5.5 | 70/0.32 | 3.1 | 1 | 2.3 | 20 | 675 | 3.56 | 400 | 120 | |
8 | 50/0.45 | 3.7 | 1 | 2.4 | 22 | 865 | 2.52 | 400 | 140 | |
14 | 88/0.45 | 4.9 | 1 | 2.7 | 27 | 1,350 | 1.43 | 300 | 170 | |
22 | 7/20/0.45 | 7 | 1.2 | 3.1 | 34 | 2,160 | 0.919 | 300 | 210 | |
7 | 0.75 | 30/0.18 | 1.1 | 0.8 | 1.9 | 13 | 215 | 26.6 | 500 | 80 |
1.25 | 50/0.18 | 1.5 | 0.8 | 2 | 14.5 | 285 | 16 | 500 | 90 | |
2 | 37/0.26 | 1.8 | 0.8 | 2.1 | 15.5 | 360 | 10.2 | 500 | 100 | |
3.5 | 45/0.32 | 2.5 | 0.8 | 2.2 | 18 | 530 | 5.54 | 400 | 110 | |
8 | 0.75 | 30/0.18 | 1.1 | 0.8 | 2 | 14 | 250 | 26.6 | 500 | 90 |
1.25 | 50/0.18 | 1.5 | 0.8 | 2 | 15.5 | 325 | 16 | 500 | 100 | |
2 | 37/0.26 | 1.8 | 0.8 | 2.1 | 17 | 410 | 10.2 | 500 | 110 | |
3.5 | 45/0.32 | 2.5 | 0.8 | 2.3 | 19.5 | 615 | 5.54 | 400 | 120 | |
10 | 0.75 | 30/0.18 | 1.1 | 0.8 | 2.1 | 16.5 | 305 | 26.6 | 500 | 100 |
1.25 | 50/0.18 | 1.5 | 0.8 | 2.2 | 18 | 395 | 16 | 500 | 110 | |
2 | 37/0.26 | 1.8 | 0.8 | 2.3 | 19.5 | 500 | 10.2 | 500 | 120 | |
3.5 | 45/0.32 | 2.5 | 0.8 | 2.5 | 23 | 745 | 5.54 | 400 | 140 | |
12 | 0.75 | 30/0.18 | 1.1 | 0.8 | 2.1 | 17 | 335 | 26.6 | 500 | 110 |
1.25 | 50/0.18 | 1.5 | 0.8 | 2.2 | 18.5 | 440 | 16 | 500 | 120 | |
2 | 37/0.26 | 1.8 | 0.8 | 2.3 | 20 | 560 | 10.2 | 500 | 120 | |
3.5 | 45/0.32 | 2.5 | 0.8 | 2.5 | 24 | 845 | 5.54 | 400 | 150 | |
16 | 0.75 | 30/0.18 | 1.1 | 0.8 | 2.2 | 18.5 | 415 | 26.6 | 500 | 120 |
1.25 | 50/0.18 | 1.5 | 0.8 | 2.3 | 21 | 550 | 16 | 500 | 130 | |
2 | 37/0.26 | 1.8 | 0.8 | 2.4 | 22 | 705 | 10.2 | 500 | 140 | |
3.5 | 45/0.32 | 2.5 | 0.8 | 2.7 | 26 | 1,080 | 5.54 | 400 | 160 | |
20 | 0.75 | 30/0.18 | 1.1 | 0.8 | 2.3 | 21 | 505 | 26.6 | 500 | 130 |
1.25 | 50/0.18 | 1.5 | 0.8 | 2.5 | 23 | 680 | 16 | 500 | 140 | |
2 | 37/0.26 | 1.8 | 0.8 | 2.6 | 25 | 870 | 10.2 | 500 | 150 | |
3.5 | 45/0.32 | 2.5 | 0.8 | 2.8 | 29 | 1,340 | 5.54 | 400 | 180 | |
24 | 0.75 | 30/0.18 | 1.1 | 0.8 | 2.4 | 22 | 600 | 26.6 | 500 | 140 |
1.25 | 50/0.18 | 1.5 | 0.8 | 2.6 | 25 | 810 | 16 | 500 | 150 | |
2 | 37/0.26 | 1.8 | 0.8 | 2.7 | 27 | 1,050 | 10.2 | 500 | 170 | |
3.5 | 45/0.32 | 2.5 | 0.8 | 3 | 32 | 1,610 | 5.54 | 400 | 200 | |
30 | 0.75 | 30/0.18 | 1.1 | 0.8 | 2.5 | 24 | 715 | 26.6 | 500 | 150 |
1.25 | 50/0.18 | 1.5 | 0.8 | 2.7 | 27 | 965 | 16 | 500 | 170 | |
2 | 37/0.26 | 1.8 | 0.8 | 2.8 | 29 | 1,250 | 10.2 | 500 | 180 | |
3.5 | 45/0.32 | 2.5 | 0.8 | 3.1 | 34 | 1,930 | 5.54 | 400 | 210 |
