NF M87-202 Instrumentation Cable

These Instrumentation cables manufactured in accordance with French Standard NF M87-202, NF M87-202 is the French Standard (Norme Française) covering instrumentation cables for the petroleum and petrochemical industry, including:

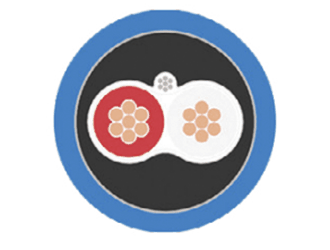

EGFA Cable	PVC Insulation, PET Binder Tape, Al/PET Overall Screen, PVC Inner Sheath, Double steel tape Armoring, PVC Sheath intrumentation cable
EGSF Cable	PVC Insulation, PET Binder Tape, Al/PET Overall Screen, PVC Sheath Instrumentation Cable
EIFA Cable	PVC Insulation, PET Binder Tape, Al/PET Individual & Overall Screen, PVC Inner Sheath, Double steel tape Armoring, PVC Sheath intrumentation cable
EISF Cable	PVC Insulation, PET Individual & Overall Binder Tape, Al/PET Individual & Overall Screen, PVC Individual Sheath, PVC Sheath intrumentation cable
EGPF Cable	PVC Insulation, PET Binder Tape, Al/PET Overall Screen, PVC Bedding, Lead cover, PVC Inner Sheath, Double steel tape Armoring, PVC Sheath intrumentation cable
EIPF Cable	PVC Insulation, PET Binder Tape, Al/PET Individual & Overall Screen, PVC Bedding, Lead cover, PVC Inner Sheath, Double steel tape Armoring, PVC Sheath intrumentation cable

It covers armoured and unarmoured instrumentation cables in pairs, 3-core, multiple pairs and multiple three-core extra-low voltage instrumentation cables for the transmission of AC or DC analogue signals in petroleum and petrochemical units.

We supply a comprehensive range of instrumentation cables for the oil & gas industry manufactured according to British and International Standards, including French, German and Norwegian. Details on NF M87-202 standard cables, our wider instrumentation range, and our technical services are also available in French. Please call us for technical support with cable selection or to discuss your project's specific requirements.

Dimensions and Weight

EGFA Cable

NF M 87-202	Number of beams x cross section	Cond. mm^2	Outer Diameter(mm)		Weight(kg/km)
			Min.	Max.
03 IP 05 EGFA	3X2X0.5	0.50	10.90	12.50	215
07 IP 05 EGFA	7X2X 0.5	0.50	13.60	15.60	320
12 IP 05 EGFA	12X2X 0.5	0.50	16.60	19.10	465
19 IP 05 EGFA	19X2X 0.5	0.50	20.00	22.90	640
27 IP 05 EGFA	27X2X 0.5	0.50	22.60	25.90	610
01 IQ 09 EGFA	1X4X0.88	0.88	10.00	11.40	195
01 IP 09 EGFA	1X2X0.88	0.88	9.10	10.50	160
03 IP 09 EGFA	3X2X0.88	0.88	13.50	15.50	310
07 IP 09 EGFA	7X2X0.88	0.88	17.20	19.70	475
12 IP 09 EGFA	12X2X0.88	0.88	21.30	24.40	720
19 IP 09 EGFA	19X2X0.88	0.88	25.70	29.40	1000
27 IP 09 EGFA	27X2X0.88	0.88	29.60	34.00	1300
07 IT 05 EGFA	7X3X0.50	0.50	15.10	17.30	405
12 IT 05 EGFA	12X3X0.50	0.50	18.40	21.10	580
01 IT 09 EGFA	1X3X0.88	0.88	9.40	10.80	175
07 IT 09 EGFA	7X3X0.88	0.88	19.20	22.00	625
12 IT 09 EGFA	12X3X0.88	0.88	23.70	27.10	955
01 IT 15 EGFA	1X3X1.50	1.50	10.50	12.00	220

EGSF Cable

NF M 87-202	Number of beams x cross section	Cond. mm^2	Outer Diameter(mm)		Weight(kg/km)
			Min.	Max.
03 IP 05 EGSF	3X2X0.5	0.50	8.00	9.30	95
07 IP 05 EGSF	7X2X0.5	0.50	10.50	12.10	160
12 IP 05 EGSF	12X2X0.5	0.50	13.40	15.40	255
19 IP 05 EGSF	19X2X0.5	0.50	16.60	19.00	380
27 IP 05 EGSF	27X2X0.5	0.50	19.20	22.00	510
01 IQ 09 EGSF	1X4X0.88	0.88	7.00	8.20	90
01 IP 09 EGSF	1X2X0.88	0.88	6.10	7.20	65
03 IP 09 EGSF	3X2X0.88	0.88	10.50	12.00	150
07 IP 09 EGSF	7X2X0.88	0.88	14.00	16.00	280
12 IP 09 EGSF	12X2X0.88	0.88	17.90	20.40	440
19 IP 09 EGSF	19X2X0.88	0.88	22.00	25.30	665
27 IP 09 EGSF	27X2X0.88	0.88	25.80	29.60	880
01 IP 15 EGSF	1X2X1.50	1.50	6.80	7.80	83
07 IT 05 EGSF	7X3X0.50	0.50	12.00	13.80	210
12 IT 05 EGSF	12X3X0.50	0.50	15.50	17.10	375
01 IT 09 EGSF	1X3X0.88	0.88	6.40	7.50	80
07 IT 09 EGSF	7X3X0.88	0.88	16.40	18.10	410
12 IT 09 EGSF	12X3X0.88	0.88	20.80	22.90	660
01 IT 15 EGSF	1X3X1.50	1.50	7.20	8.20	100

EIFA Cable

NF M 87-202	Number of beams x cross section	Cond. mm^2	Outer Diameter(mm)		Weight(kg/km)
			Min.	Max.
03 IP 05 EIFA	3X2X0.50	0.50	14.20	16.20	355
07 IP 05 EIFA	7X2X0.50	0.50	18.60	21.40	570
12 IP 05 EIFA	12X2X0.50	0.50	23.30	26.70	850
19 IP 05 EIFA	19X2X0.50	0.50	28.10	32.30	1210
27 IP 05 EIFA	27X2X0.50	0.50	32.80	37.60	1600
03 IP 09 EIFA	3X2X0.88	0.88	18.50	20.40	465
07 IP 09 EIFA	7X2X0.88	0.88	22.90	25.30	792
12 IP 09 EIFA	12X2X0.88	0.88	29.00	32.00	1205
19 IP 09 EIFA	19X2X0.88	0.88	34.80	38.40	1709
27 IP 09 EIFA	27X2X0.88	0.88	40.60	44.80	2275
03 IP 09 EIFA	3X2X0.88	0.88	16.70	19.20	270
07 IP 09 EIFA	7X2X0.88	0.88	22.40	25.70	800
12 IP 09 EIFA	12X2X0.88	0.88	28.10	32.30	1185
19 IP 09 EIFA	19X2X0.88	0.88	34.10	39.10	1720
27 IP 09 EIFA	27X2X0.88	0.88	39.80	45.70	2285
01 IP 15 EIFA	1X2X1.50	1.50	10.20	11.70	200
07 IT 05 EIFA	7X3X0.50	0.50	20.30	23.30	690
12 IT 05 EIFA	12X3X0.50	0.50	25.40	28.00	1005
12 IT 09 EIFA	12X3X0.88	0.88	25.00	28.70	1025
01 IT 15 EIFA	1X3X1.50	1.50	10.50	12.00	220

EISF Cable

NF M 87-202	Number of beams x cross section	Cond. mm^2	Outer Diameter(mm)		Weight(kg/km)
			Min.	Max.
03 IP 05 EISF	3X2X0.50	0.50	11.10	12.80	180
07 IP 05 EISF	7X2X0.50	0.50	15.40	17.70	335
12 IP 05 EISF	12X2X0.50	0.50	19.80	22.80	545
19 IP 05 EISF	19X2X0.50	0.50	24.50	28.10	820
27 IP 05 EISF	27X2X0.50	0.50	28.90	33.20	1135
03 IP 09 EISF	3X2X0.88	0.88	13.50	15.50	270
07 IP 09 EISF	7X2X0.88	0.88	19.00	21.80	500
12 IP 09 EISF	12X2X0.88	0.88	24.50	28.10	820
19 IP 09 EISF	19X2X0.88	0.88	30.30	34.80	1120
27 IP 09 EISF	27X2X0.88	0.88	35.80	41.10	1700
01 IP 15 EISF	1X2X1.50	1.50	7.20	8.40	90
07 IT 05 EISF	7X3X0.50	0.50	16.90	19.40	425
12 IT 05 EISF	12X3X0.50	0.50	21.50	24.60	695
07 IT 09 EISF	7X3X0.88	0.88	20.60	23.70	655
12 IT 09 EISF	12X3X0.88	0.88	26.50	30.40	1045
01 IT 15 EISF	1X3X1.50	1.50	7.50	8.80	110

EGPF Cable

NF M 87-202	Number of beams x cross section	Cond. mm^2	Outer Diameter(mm)		Weight(kg/km)
			Min.	Max.
01 IQ 05 EGPF	1X4X0.50	0.50	11.30	12.60	453
02 IP 05 EGPF	2X2X0.50	0.50	10.60	11.90	401
03 IP 05 EGPF	3X2X0.50	0.50	13.70	15.70	635
07 IP 05 EGPF	7X2X0.50	0.50	16.30	18.70	840
12 IP 05 EGPF	12X2X0.50	0.50	19.40	22.20	1160
19 IP 05 EGPF	19X2X0.50	0.50	22.90	26.30	1550
27 IP 05 EGPF	27X2X0.50	0.50	25.90	19.80	1855
01 IQ 09 EGPF	1X4X0.88	0.88	12.70	14.60	575
01 IP 09 EGPF	1X2X0.88	0.88	11.70	13.40	500
02 IP 09 EGPF	2X2X0.88	0.88	11.80	13.20	485
03 IP 09 EGPF	3X2X0.88	0.88	16.80	18.50	759
07 IP 09 EGPF	7X2X0.88	0.88	20.80	22.90	1136
12 IP 09 EGPF	12X2X0.88	0.88	25.20	27.80	1605
19 IP 09 EGPF	19X2X0.88	0.88	30.00	33.10	2185
27 IP 09 EGPF	27X2X0.88	0.88	34.30	37.90	2798
03 IP 09 EGPF	3X2X0.88	0.88	16.20	18.60	825
07 IP 09 EGPF	7X2X0.88	0.88	19.90	22.90	1205
12 IP 09 EGPF	12X2X0.88	0.88	24.20	27.80	1740
19 IP 09 EGPF	19X2X0.88	0.88	28.80	33.00	2300
27 IP 09 EGPF	27X2X0.88	0.88	33.00	37.80	2910
01 IP 15 EGPF	1X2X1.50	1.50	12.70	14.10	546
03 IP 15 EGPF	3X2X1.50	1.50	18.00	19.80	887
07 IP 15 EGPF	7X2X1.50	1.50	22.60	24.90	1362
12 IP 15 EGPF	12X2X1.50	1.50	27.70	30.60	2039
19 IP 15 EGPF	19X2X1.50	1.50	33.20	36.60	2783
27 IP 15 EGPF	27X2X1.50	1.50	37.80	41.70	3556
01 IT 05 EGPF	01X3X0.50	0.50	10.90	12.20	421
07 IT 05 EGPF	7X3X0.50	0.50	18.50	20.40	959
12 IT 05 EGPF	12X3X0.50	0.50	22.30	24.60	1353
19 IT 05 EGPF	19X3X0.50	0.50	26.30	29.00	1838
01 IQ 09 EGPF	1X4X0.88	0.88	13.00	14.40	573
01 IT 09 EGPF	1X3X0.88	0.88	12.00	13.70	530
07 IT 09 EGPF	7X3X0.88	0.88	23.10	25.50	1396
12 IT 09 EGPF	12X3X0.88	0.88	28.20	31.10	2071
19 IT 09 EGPF	19X3X0.88	0.88	33.60	37.00	2821
01 IT 15 EGPF	1X3X1.50	1.50	13.10	14.60	594
07 IT 15 EGPF	7X3X1.50	1.50	25.40	28.00	1785
12 IT 15 EGPF	12X3X1.50	1.50	30.80	33.90	2526
19 IT 15 EGPF	19X3X1.50	1.50	37.00	40.80	3617

EIPF Cable

NF M 87-202	Number of beams x cross section	Cond. mm^2	Outer Diameter(mm)		Weight(kg/km)
			Min.	Max.
03 IP 05 EIPF	3X2X0.50	0.50	17.10	19.60	950
07 IP 05 EIPF	7X2X0.50	0.50	21.80	25.00	1450
12 IP 05 EIPF	12X2X0.50	0.50	26.60	30.50	2025
19 IP 05 EIPF	19X2X0.50	0.50	31.60	36.30	2745
27 IP 05 EIPF	27X2X0.50	0.50	36.50	41.90	3400
03 IP 09 EIPF	3X2X0.88	0.88	19.50	22.30	1170
07 IP 09 EIPF	7X2X0.88	0.88	25.40	29.10	1810
12 IP 09 EIPF	12X2X0.88	0.88	31.60	36.30	2745
19 IP 09 EIPF	19X2X0.88	0.88	37.80	43.40	3770
27 IP 09 EIPF	27X2X0.88	0.88	43.90	50.40	4910
07 IT 05 EIPF	7X3X0.50	0.50	24.30	26.80	1549
12 IT 05 EIPF	12X3X0.50	0.50	29.30	32.30	2175
07 IT 09 EIPF	7X3X0.88	0.88	28.60	31.60	2074
12 IT 09 EIPF	12X3X0.88	0.88	34.70	38.30	1025

Other cross-sections and conductor counts available on request.
