Overview
The Aerial Bundle Cable Insulation Piercing Connector (IPC) is used to establish a tap connection from low voltage ABC (Aerial Bundled Conductors) to a low voltage aluminium alloy or copper bare main conductor. It is widely used for Low Voltage Aerial Bundled Conductor (LV ABC) lines up to 1KV.

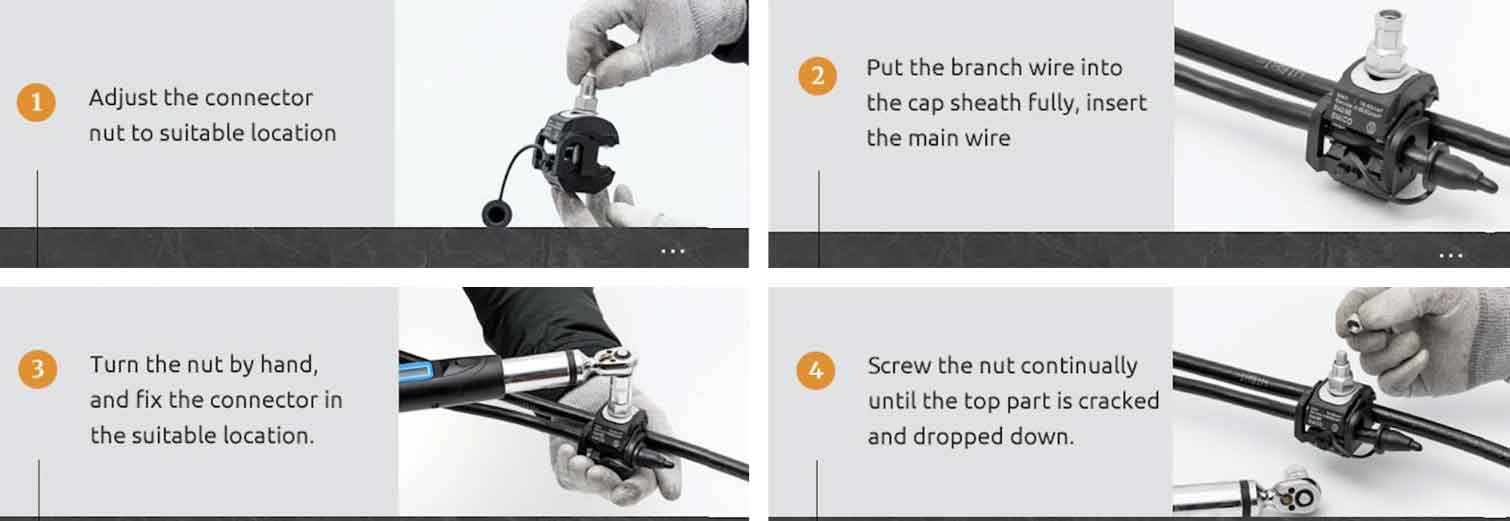

Arc surface design , apply to connection with the same (different) diameter, wide connection scope;The blades of the insulation piercing connectors are made of tin-plated copper or tin-plated brass or aluminium alloy allowing connections to Al or Cu conductors;The shell is made of high-quality insulation and flame retardant material, the shell is hard and not easy to break, corrosion-resistant, aging-resistant, much more durable;A single torque control nut draws the two parts of the connector together and shears off when the teeth have pierced the insulation and made contact with the conductor strands.
Application: Secondary URD Cable. Secondary underground distribution cables are used to run power from a pad mounted transformer to the service entry or meter of a structure. The cables are rated for installation in underground duct or directly buried in earth. They are offered in single conductor, duplex, triplex, and quadruplex.
Characteristics:
Insulation piercing design simplifies installation.
High resistance to environmental factors like UV and moisture.
Provides reliable electrical connections and mechanical support.
Parameter
| Type | Main Line (mm²) | Tap Line (mm²) |
| JBC/PG-1 | 35-70 | 6-35 |
| JBC/PG-2 | 35-120 | 35-120 |
| JBC/PG-3 | 50-240 | 50-240 |
