Overview

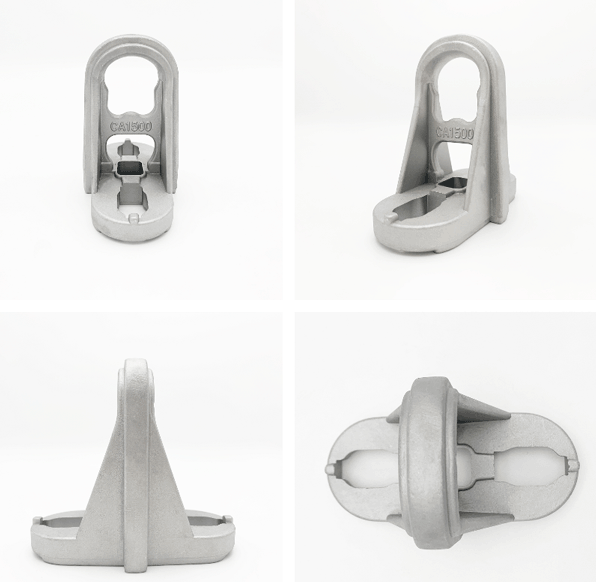

Bracket clamp is designed for tension support of ABC cables.Brackets made of aluminum alloy,developed to be used on wooden ,metal or concrete poles.
Mostly installed in LV-ABC line with anchor clamps for main cables by two stainless steel band (20mm) or one bolts 14,16 mm diameter.
Low voltage ABC line is carried out with two tension clamp PA 1500.
The assembly have passed the voltage tests,tension tests.Operation experience with temperatures ranging from -60°C up to +60°C test,temperature cycling test.
Characteristics:
Made from high-strength materials to withstand mechanical stress.
Provides reliable insulation and secure anchoring.
Designed for easy installation and long-term performance.
Bracket clamp is designed for tension support of ABC cables.Brackets made of aluminum alloy,developed to be used on wooden ,metal or concrete poles.
Mostly installed in LV-ABC line with anchor clamps for main cables by two stainless steel band (20mm) or one bolts 14,16 mm diameter.
Low voltage ABC line is carried out with two tension clamp PA 1500.
The assembly have passed the voltage tests,tension tests.Operation experience with temperatures ranging from -60°C up to +60°C test,temperature cycling test.
Characteristics:
Made from high-strength materials to withstand mechanical stress.
Provides reliable insulation and secure anchoring.
Designed for easy installation and long-term performance.
| Product code | Breaking load（KN） | Material |
| CA-1500.1 | 15 | aluminum alloy |
| CA-1500 | 15 | |
| CA-2000 | 20 |
