Overview

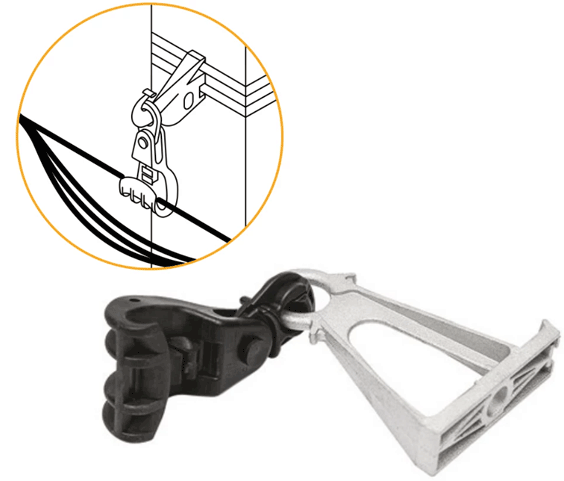

Suspension assembly ABC cable suspension clamp designed to suspend one core insulated connector in self-supporting aerial bundled cable system, up to 1 KV. ABC cable suspension clamp attach to towers, poles or walls,can be installed instraight direction, for angles up to 30° towards the pole and up to 50° away from the pole. Movable link allows the universal movement of the clamp body.
Suspension assembly PS-1500 applied on cables from 16 to 95 mm² in main or end use electrical connections.
Suspension assembly consist of suspension clamp PS-1500 whichis made of weather and Uv resistant fiberglass reinf orced plastic,and suspension brackets PS-1500 which is made of high strength aluminium.
Suspension assembly PS-1500 is a one-piece format, assists lines-men by hanging the neutral messenger in open position PS-1500 allows quick installation by locking adjustable grip clip despitedifferent cable sizes. Toolfree installation provides it's universality during the installation with the LV ABC hooks, pigtails, and stainless steel band.
Characteristics:
High mechanical strength and UV resistance.
Provides secure and stable cable support.
Easy to install with adjustable configurations.
Suspension assembly ABC cable suspension clamp designed to suspend one core insulated connector in self-supporting aerial bundled cable system, up to 1 KV. ABC cable suspension clamp attach to towers, poles or walls,can be installed instraight direction, for angles up to 30° towards the pole and up to 50° away from the pole. Movable link allows the universal movement of the clamp body.
Suspension assembly PS-1500 applied on cables from 16 to 95 mm² in main or end use electrical connections.
Suspension assembly consist of suspension clamp PS-1500 whichis made of weather and Uv resistant fiberglass reinf orced plastic,and suspension brackets PS-1500 which is made of high strength aluminium.
Suspension assembly PS-1500 is a one-piece format, assists lines-men by hanging the neutral messenger in open position PS-1500 allows quick installation by locking adjustable grip clip despitedifferent cable sizes. Toolfree installation provides it's universality during the installation with the LV ABC hooks, pigtails, and stainless steel band.
Characteristics:
High mechanical strength and UV resistance.
Provides secure and stable cable support.
Easy to install with adjustable configurations.
| Product code | PS-1500 |
| Cable type | Single core ABC |
| cable size, mm2 | 16-95 |
| MBL,kN | 8 |
| Overhead Line Application | Main / end use connections, up to 1 KV |
