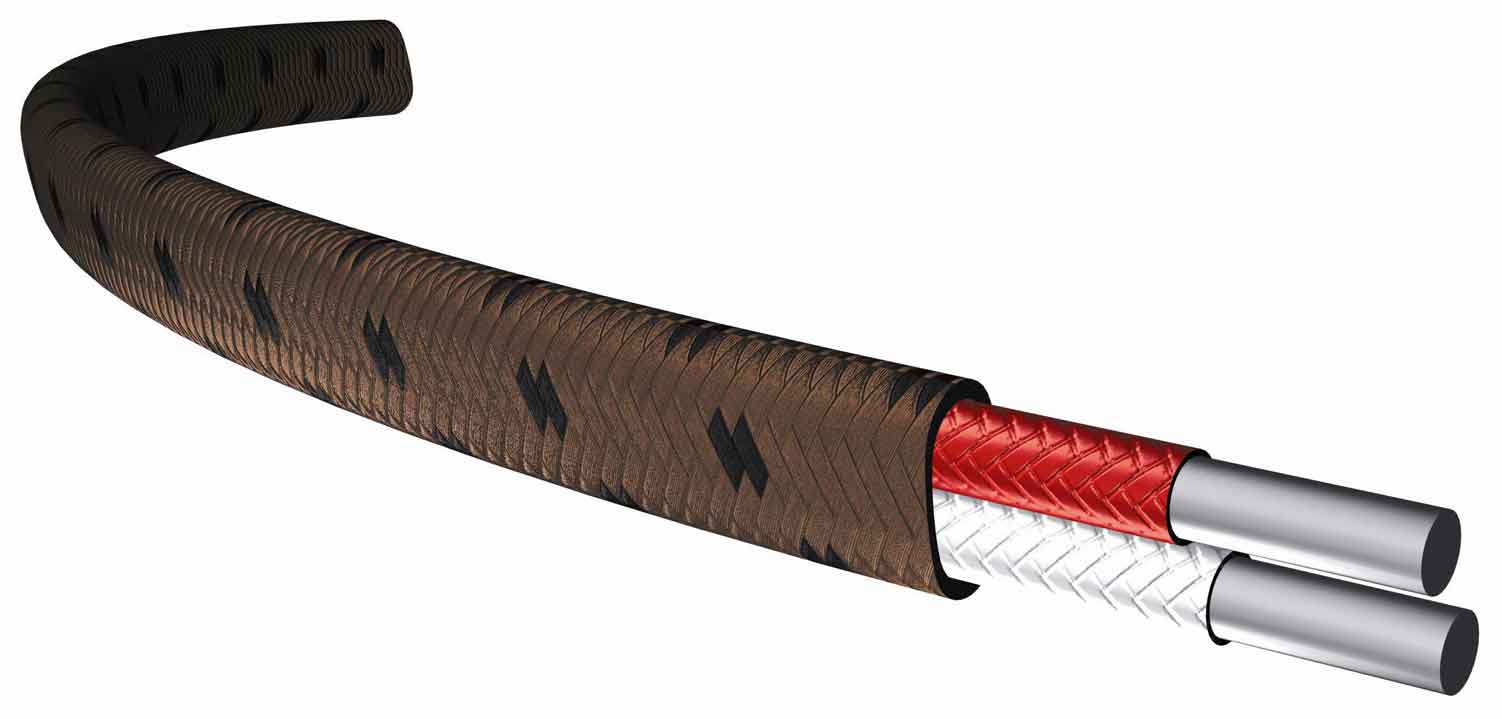

Fibreglass Insulated Thermocouple Wire / Cable
For the Fibreglass Thermocouple Cable, individual conductors are insulated with general-purpose fibreglass and with an overall fibreglass jacket. Designed for continuous use in temperatures rating up to 510 °C (950 °F). Industrial applications such as heat treatment, metal forgings, metal qualifications and aluminium can use Fibreglass Thermocouple Cable.Product Specifications
Conductors: Solid or stranded thermocouple wire per ASTM E230 & ANSI MC96.1
Insulation: Braided fiberglass with high-temperature impregnation* (24 to 30 AWG Served Glass)
Construction: Parallel conductors
Jacket: Braided fiberglass with high-temperature impregnation*
Operating Temperature: +950 °F (+510 °C) continuous +1200 °F (+650 °C) single exposure
Limits of Error: Conforms to ASTM E230, IEC 584, and ANSI MC 96.1
Color Code: Conforms to ASTM E230 and ANSI MC96.1 (International Color Codes Available)
*Impregnation maintained to +400 °F (+200 °C)
Available Options
Stabilized Type K & Type E Conductors
Fused PTFE Tape Moisture Barrier
Double Glass Braid Insulation
Twisted/Shielded Pair
Metal Coverings
