PTFE insulated, PFA sheathed unshielded/shielded thermocouple extension cables
ApplicationIntended for use as thermocouple extension cabling for appliances or electrical equipment
Characteristics
Temp low:-65o C
Temp >20,000 hrs:+200oC
MBR:
Fixed = 5x Ø
Flexing = 10x Ø
Standard
IEC / EN 60584-3
Current rating DIN VDE 0298-4
Cable identification (according to IEC 60584.3)
Cores :
EX: 1st: Violet (Positive leg), 2nd: White (Negative leg)
JX: 1st: Black (Positive leg), 2nd: White (Negative leg)
KX: 1st: Green (Positive leg), 2nd: White (Negative leg)
Sheath :
EX: Violet
JX: Black
KX: Green
| Unshielded | Shielded |
|

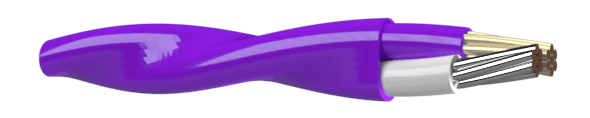

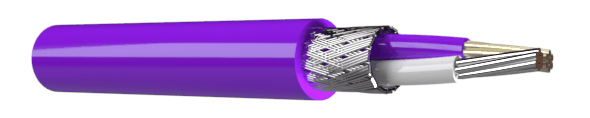

| TYPE EX |  |
 |

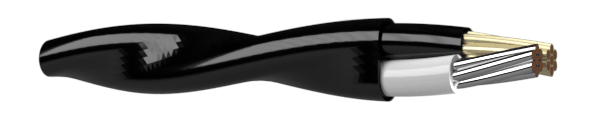

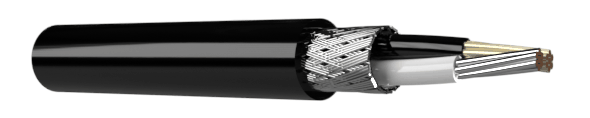

| TYPE JX |  |
 |

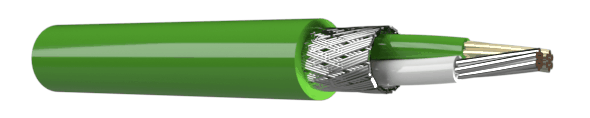

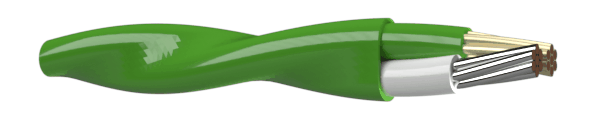

| TYPE KX |  |
 |
