FEP Insulated & Jacketed Thermocouple Cable
Product DescriptionSolid or stranded thermocouple alloy wires calibrated per ANSI MC 96.1
Extruded FEP insulation & jacket are impervious to chemicals, acids, fuels, solvents, and water
FDA Recognized as Food/Medical Grade (can be sterlized)
Many other constructions available: Parallel Pair/ Twisted Pair/Multi-pair, Unshielde/shielde
Conductors color coded per ANSI MC 96.1
International color codes available
Temperature Rating
-200º to 200ºC
Limits of Error
Guaranteed conformance to ASTM E230 and ANSI MC 96.1
Tighter tolerances than industry standards on alloy selection guarantee high system accuracy
| Calibration | Temperature Range | Standard Limits of Error | Special Limits of Error* |
| BX (Cu vs. Cu) | 0º to 100ºC | +/- 4.2ºC | NA |
| BX (PCLW vs. Cu) | 0º to 200ºC | +/- 3.7ºC | NA |
| E | 0º to 870ºC | +/- 1.7ºC or 0.5% | +/- 1.0ºC or 0.4% |
| EX | 0º to 200ºC | +/- 1.7ºC | +/- 1.0ºC |
| J | 0º to 760ºC | +/- 2.2ºC or 0.75% | +/- 1.1ºC or 0.4% |
| K or N | 0º to 1260ºC | +/- 2.2ºC or 0.75% | +/- 1.1ºC or 0.4% |
| KX or NX | 0º to 200ºC | +/- 2.2ºC | +/-1.1ºC |
| RX or SX | 0º to 200ºC | +/- 5.0ºC | NA |
| T | 0º to 370ºC | +/- 1.0ºC or 0.75% | +/- 0.5ºC to 0.4% |
| TX | 0º to 100ºC | +/- 1.0ºC | +/- 0.5ºC |
Approvals
RoHS Compliant
Parallel Pair Thermocouple Cable - Unshielded, FEP Insulated & Jacketed
| Temperature Rating -80º to 200ºC Applications Metal and Glass Foundries, Mills or Refractories Food & Beverage Plants Clean Room Environments |
 |
Twisted Pair TC Cable - Unshielded, FEP Insulated & Un-jacketed
| Applications Temperature Sensors Aerospace Transportation Cryogenics Autoclaves FDA Approved Applications Composites |
 |
Twisted Pair Thermocouple Cable - Shielded, FEP Insulated & Jacketed
| Applications Temperature Sensors Aerospace Transportation Cryogenics Autoclaves FDA Approved Applications Composites |
 |

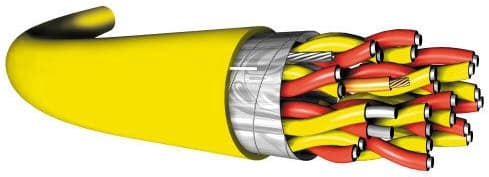

Multi-pair Thermocouple Extension Cable (300V)- Overall Shield, FEP Insulated & Jacketed
| Applications New Plant Constructions Utilities and Industrial Plants Petrochemical Plants Testing Rig set up Thermocouple Circuits Agricultural Industry FDA Approved Applications Suitable for 300 Volt Applications |
 |

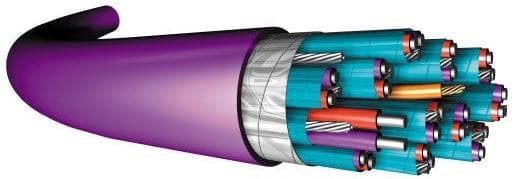

Multi-pair Thermocouple Extension Cable (300V) - Individual & O/A Shield, FEP Insulated & Jacketed
| Applications New Plant Constructions Utilities and Industrial Plants Petrochemical Plants Testing Rig set up Thermocouple Circuits Agricultural Industry FDA Approved Applications Suitable for 300 Volt Applications |
 |
