Solar Cable 4mm/6mm
Cable Specification
Conductor: Plain Annealed Copper Class 5 to BS EN 60228
Insulation: XLPO
Sheath: XLPO
Min Operating Temperature: -40°C
Max Operating Temperature: 90°C
Core Colours: Red or Black
Sheath Colours: Red or Black
Application:
Solar Cable 4mm or 6mm is applied to solar panels for power generation and related components of the wiring, and connection, particularly suitable for outdoor. Resistance to sunlight, anti-aging, using the low smoke halogen-free flame retardant materials, higher grade, more safety.
Solar Cable Advantage:
Solar Cable 4mm or 6mm modules operate at high temperatures and are exposed to a variety of environmental conditions.
The NEC limits various PV array applications to USE-2 or PV wire. These cables need to meet the required sunlight resistance and temperature ratings for the environment.
Solar Cable 6mm is manufactured for use in photovoltaic applications, while USE-2 cable types are typically manufactured for underground service entrance applications.
Both cable types commonly contain XLPO insulation and can be sunlight-resistant and/or rated for direct burial.

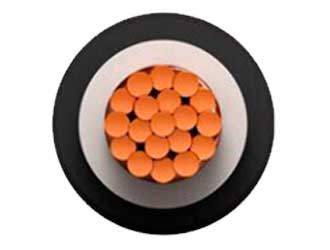

Cable Construction:
Conductor: Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.
Insulation: UV-resistant, cross-linkable, halogen-free, flame-retardant compound for core insulation.
Core Identification: Red, black, or natural Sheath: UV resistant, cross-linkable, halogen-free, flame retardant compound for Sheath over insulation.
Cable Colour: Black or Red
Standard:
Adapted to PV systems, 2 Pfg 1169 / 08.2007 and EN 50618:2015.
Electrical Parameters:
Voltage Rating: AC 0.6 / 1.0 kV Max. PV
System Voltage: DC up to 2.0 kV possible Max.
Permissible Operating Voltage in AC Systems: 0.7 / 1.2 kV Max.
Permissible Operating Voltage in DC Systems: 0.9 / 1.8 kV
Test Voltage: AC 6 kV / DC 10 kV (15 min.)
| Construction | Conductor Construction | Conductor | Outer | Resistance Max | Current Carring Capacity |
| n×mm2 | n×mm | mm | mm | Ω/Km | A |
| 1×1.5 | 30×0.25 | 1.58 | 4.90 | 13.3 | 30 |
| 1×2.5 | 50×0.256 | 2.06 | 5.45 | 7.98 | 41 |
| 1×4.0 | 56×0.3 | 2.58 | 6.15 | 4.75 | 55 |
| 1×6 | 84×0.3 | 3.15 | 7.15 | 3.39 | 70 |
| 1×10 | 142×0.3 | 4.0 | 9.05 | 1.95 | 98 |
| 1×16 | 228×0.3 | 5.7 | 10.2 | 1.24 | 132 |
| 1×25 | 361×0.3 | 6.8 | 12.0 | 0.795 | 176 |
| 1×35 | 494×0.3 | 8.8 | 13.8 | 0.565 | 218 |
| 1×50 | 418×0.39 | 10.0 | 16.0 | 0.393 | 280 |
| 1×70 | 589×0.39 | 11.8 | 18.4 | 0.277 | 350 |
| 1×95 | 798×0.39 | 13.8 | 21.3 | 0.210 | 410 |
| 1×120 | 1007×0.39 | 15.6 | 21.6 | 0.164 | 480 |
Being one of the leading produce solar cable 4mm/6mm, we always put quality in the first place. To guarantee the performance of 4mm/6mm solar panel cable, Uni produces the cable in strict accordance with international standards. PV wire 10 AWG is also the same as solar panel cable 6mm. We promise to provide qualified products for our customers.
