PV Wire 600v and 2KV

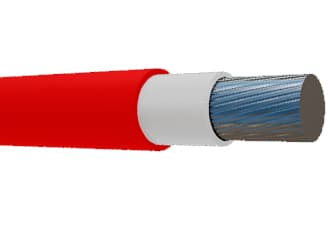

Uni Cable's PV Wire is a single conductor cross-linked polyethylene (XLP/XLPE) Type Photovoltaic (PV) wire that can operate up to 600 V, 1000 V (1kV) or 2000 V (2kV) depending on Type, and up to 90°C in wet and dry locations. Photovoltaic Wire is used for interconnection wiring of grounded and ungrounded photovoltaic power systems at various voltage levels. Our PV Wire is oil, gasoline and sunlight resistant. This versatile single-conductor cable is designed to meet the varying needs of the Solar Industry. Applications include connection to module junction boxes; required cable routing in balance of system (BOS) integration.Electrical Characteristics
--Maximum Operating Voltage: 600 VRMS (UL PV)
Physical Characteristics:
--Temperature Rating: -40°C to 90°C
--RoHS Compliant
--Flame Resistance:VW-1
--Conductor AWG: 12 to 2000 AWG
Standards
PV (Photovoltaic) with UL certificate standard
UL 4703 for TYPE PV
UL 44 for TYPE RHW-2
UL 854 for TYPE USE-2
Parameter
Copper conductor 1000V/2000V
| Size | Diameter of conductor | Min. Number of Strands |
Insulation Thickness |
Nominal O.D. | Net Weight | Maximum conductor resistance at temperature 20℃ |
| AWG or kcmil | mm | n | mm | mm | kg/km | Ω/km |
| 12 | 2.16 | 7 | 1.90 | 6.0 | 66 | 5.4300 |
| 10 | 2.72 | 7 | 1.90 | 6.5 | 88 | 3.4100 |
| 8 | 3.40 | 7 | 2.15 | 7.7 | 130 | 2.1400 |
| 6 | 4.29 | 7 | 2.15 | 8.6 | 183 | 1.3500 |
| 4 | 5.41 | 7 | 2.15 | 9.7 | 265 | 0.8480 |
| 3 | 6.02 | 7 | 2.15 | 10.3 | 321 | 0.6730 |
| 2 | 6.81 | 7 | 2.15 | 11.1 | 391 | 0.5340 |
| 1 | 7.59 | 18 | 2.66 | 12.9 | 506 | 0.4230 |
| 1/0 | 8.53 | 18 | 2.66 | 13.9 | 617 | 0.3350 |
| 2/0 | 9.55 | 18 | 2.66 | 14.9 | 754 | 0.2660 |
| 3/0 | 10.74 | 18 | 2.66 | 16.1 | 927 | 0.2110 |
| 4/0 | 12.07 | 18 | 2.66 | 17.4 | 1140 | 0.1670 |
| 250 | 13.21 | 35 | 3.04 | 19.3 | 1366 | 0.1420 |
| 300 | 14.48 | 35 | 3.04 | 20.6 | 1608 | 0.1180 |
| 350 | 15.65 | 35 | 3.04 | 21.7 | 1849 | 0.1010 |
| 400 | 16.74 | 35 | 3.04 | 22.8 | 2097 | 0.0885 |
| 450 | 17.78 | 35 | 3.04 | 23.9 | 2318 | 0.0787 |
| 500 | 18.69 | 35 | 3.04 | 24.8 | 2663 | 0.0709 |
| 550 | 19.69 | 58 | 3.43 | 26.6 | 2867 | 0.0644 |
| 600 | 20.65 | 58 | 3.43 | 27.5 | 3106 | 0.0590 |
| 650 | 21.46 | 58 | 3.43 | 28.3 | 3343 | 0.0545 |
| 700 | 22.28 | 58 | 3.43 | 29.1 | 3589 | 0.0506 |
| 750 | 23.06 | 58 | 3.43 | 29.9 | 3826 | 0.0472 |
| 800 | 23.83 | 58 | 3.43 | 30.7 | 4063 | 0.0443 |
| 900 | 25.37 | 58 | 3.43 | 32.2 | 4545 | 0.0393 |
| 1000 | 26.92 | 58 | 3.43 | 33.8 | 5027 | 0.0345 |
| Size | Diameter of conductor | Min. Number of Strands |
Insulation Thickness |
Nominal O.D. | Net Weight | Maximum conductor resistance at temperature 20℃ |
| AWG or kcmil | mm | n | mm | mm | kg/km | Ω/km |
| 12 | 2.16 | 7 | 1.52 | 5.2 | 61 | 5.4300 |
| 10 | 2.72 | 7 | 1.52 | 5.8 | 95 | 3.4100 |
| 8 | 3.40 | 7 | 1.90 | 7.2 | 131 | 2.1400 |
| 6 | 4.29 | 7 | 1.90 | 8.1 | 186 | 1.3500 |
| 4 | 5.41 | 7 | 1.90 | 9.2 | 262 | 0.8480 |
| 3 | 6.02 | 7 | 1.90 | 9.8 | 319 | 0.6730 |
| 2 | 6.81 | 7 | 1.90 | 10.6 | 416 | 0.5340 |
| 1 | 7.59 | 18 | 2.41 | 12.4 | 506 | 0.4230 |
| 1/0 | 8.53 | 18 | 2.41 | 13.4 | 617 | 0.3350 |
| 2/0 | 9.55 | 18 | 2.41 | 14.4 | 756 | 0.2660 |
| 3/0 | 10.74 | 18 | 2.41 | 15.6 | 929 | 0.2110 |
| 4/0 | 12.07 | 18 | 2.41 | 16.9 | 1172 | 0.1670 |
| 250 | 13.21 | 35 | 2.79 | 18.8 | 1369 | 0.1420 |
| 300 | 14.48 | 35 | 2.79 | 20.1 | 1609 | 0.1180 |
| 350 | 15.65 | 35 | 2.79 | 21.2 | 1848 | 0.1010 |
| 400 | 16.74 | 35 | 2.79 | 22.3 | 2095 | 0.0885 |
| 450 | 17.78 | 35 | 2.79 | 23.4 | 2314 | 0.0787 |
| 500 | 18.69 | 35 | 2.79 | 24.3 | 2706 | 0.0709 |
| 550 | 19.69 | 58 | 3.18 | 26.1 | 2864 | 0.0644 |
| 600 | 20.65 | 58 | 3.18 | 27.0 | 3101 | 0.0590 |
| 650 | 21.46 | 58 | 3.18 | 27.8 | 3338 | 0.0545 |
| 700 | 22.28 | 58 | 3.18 | 28.6 | 3583 | 0.0506 |
| 750 | 23.06 | 58 | 3.18 | 29.4 | 3819 | 0.0472 |
| 800 | 23.83 | 58 | 3.18 | 30.2 | 4067 | 0.0443 |
| 900 | 25.37 | 58 | 3.18 | 31.7 | 4548 | 0.0393 |
| 1000 | 26.92 | 58 | 3.18 | 33.3 | 4557 | 0.0345 |
