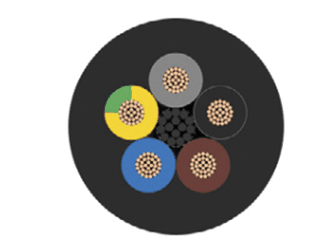

H07ZZ-F cable

Cable-uni's H07ZZ-F cable is used across a broad range of applications across almost all industry sectors including Airports, Automation & Process Control, Communications & Telecommunication, Marine & Offshore, Oil, Gas & Petrochemicals, Renewable Energy, and Water Treatment. With its Low Smoke Zero Halogen insulation and oversheath, it is suited to installation in buildings or industrial plants with a high density of people. The H07ZZ-F cable is suited to installation both indoors and outdoors.

Cable-uni’s H07ZZ-F cable is a Low Smoke Zero Halogen (LSZH) often considered an alternative to the H07RN-F Rubber Flexible cable - offering the same flexible power distribution solution but suited to where fire, smoke emission and toxic fumes create a potential.

Our H07ZZ-F halogen free flexible multi-core power cable is designed for applications with a voltage rating of 450/750V that are subjected to medium mechanical stresses such as supplying mobile power units, UPS installations, stage lighting and audio visual equipment.

The H07ZZ-F cable is also available in 2-core, 3-core, 4-core, 5-core and up to 37 cores as standard. The temperature rating of the H07ZZ-F is -5oC to +50oC when flexed and -20oC to +90oC when fixed.


Construction Table

	H07ZZ-F CABLE
VOLTAGE	450/750V
CONDUCTOR	Class 5 Flexible Stranded Copper
INSULATION	LSZH (Low Smoke Zero Halogen) Cross-Linked Compound
OUTER SHEATH	LSZH (Low Smoke Zero Halogen)

Please refer to the below H07ZZ-F datasheet PDF for further information.  For assistance with selecting the most appropriate rubber sheathed cable please speak to our technical experts.
