Application
XLPE insulated twisted cables are applied for underground installation

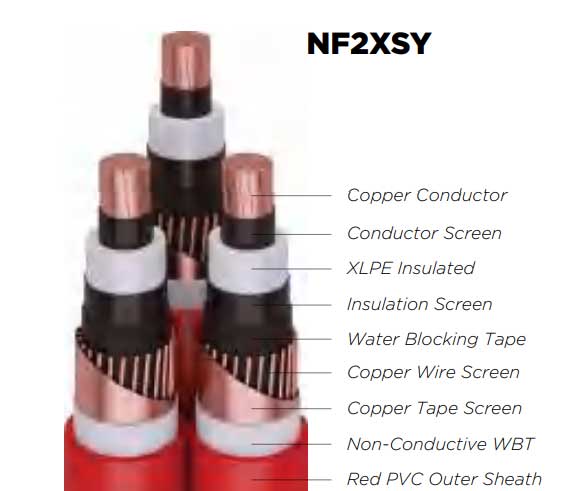

![](/d/file/nf2xsy-1-1.jpg)

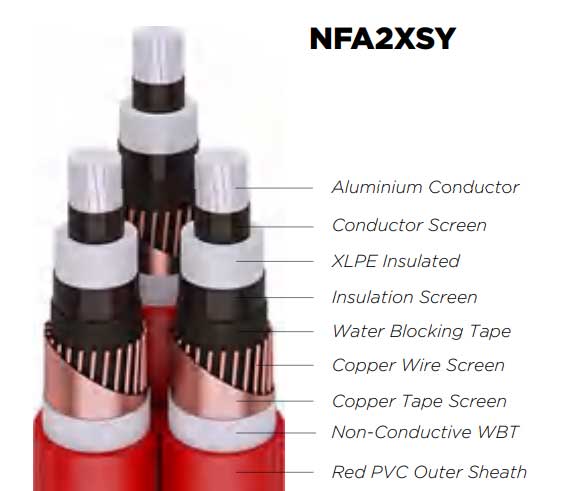

![](/d/file/nf2xsy-1-2.jpg)
Special Features on Request:
Oil Resistance
UV Resistance
Flame Retardant Cat. A, B, C
Flame Retardant Non Category
Heat Resistance
Anti Termite
Standard Specification :
SPLN 43-5, SNI IEC 60502-2, IEC 60502-2
Dimensions
XLPE insulated twisted cables are applied for underground installation
![](/d/file/nf2xsy-1-1.jpg)
![](/d/file/nf2xsy-1-2.jpg)
Special Features on Request:
Oil Resistance
UV Resistance
Flame Retardant Cat. A, B, C
Flame Retardant Non Category
Heat Resistance
Anti Termite
Standard Specification :
SPLN 43-5, SNI IEC 60502-2, IEC 60502-2
Dimensions
NF2XSY | ||||||||
Nom Cross Section Area | Approx. Overall Diameter | Approx. Cable Weight | Max. DC Resistance at 20 °C | Max. AC Resistance at 90 °C | Inductance | Max. (Amp) Current - Carrying Capacity At 30 °C | Max. Short Circuit Current at 1 Second |
|
Conductor | Screen | |||||||
mm² | mm | kg/km | ohm/km | ohm/km | mH/km | A | kA | kA |
3X35 | 56.0 | 3,000 | 0.5240 | 0.668 | 0.416 | 175 | 5.18 | 2.77 |
3X50 | 58.0 | 3,500 | 0.3870 | 0.494 | 0.399 | 207 | 7.36 | 2.92 |
3X70 | 62.0 | 4,300 | 0.2680 | 0.342 | 0.380 | 232 | 10.26 | 3.14 |
3X95 | 66.0 | 5,200 | 0.1930 | 0.247 | 0.362 | 302 | 13.88 | 3.38 |
3X120 | 70.0 | 6,100 | 0.1530 | 0.196 | 0.351 | 343 | 17.49 | 3.57 |
3X150 | 73.0 | 7,100 | 0.1240 | 0.159 | 0.343 | 385 | 21.81 | 4.66 |
3X185 | 77.0 | 8,200 | 0.0990 | 0.128 | 0.331 | 435 | 26.86 | 3.99 |
3X240 | 83.0 | 10,100 | 0.0750 | 0.098 | 0.318 | 504 | 34.78 | 4.31 |
3X300 | 88.0 | 12,100 | 0.0601 | 0.079 | 0.309 | 567 | 43.41 | 4.60 |
NFA2XSY | ||||||||
Nom Cross Section Area | Approx. Overall Diameter | Approx. Cable Weight | Max. DC Resistance at 20 °C | Max. AC Resistance at 90 °C | Inductance | Max. (Amp) Current - Carrying Capacity At 30 °C | Max. Short Circuit Current at 1 Second |
|
Conductor | Screen | |||||||
mm² | mm | kg/km | ohm/km | ohm/km | mH/km | A | kA | kA |
3X50 | 58.0 | 2,600 | 0.641 | 0.822 | 0.399 | 157 | 4.39 | 2.92 |
3X70 | 62.0 | 3,000 | 0.443 | 0.568 | 0.380 | 196 | 6.81 | 3.14 |
3X95 | 66.0 | 3,400 | 0.320 | 0.411 | 0.362 | 233 | 9.19 | 3.38 |
3X120 | 70.0 | 3,800 | 0.253 | 0.325 | 0.351 | 267 | 11.58 | 3.57 |
3X150 | 73.0 | 4,300 | 0.206 | 0.265 | 0.343 | 299 | 14.43 | 4.66 |
3X185 | 77.0 | 4,800 | 0.164 | 0.212 | 0.331 | 339 | 17.76 | 3.99 |
3X240 | 83.0 | 5,500 | 0.125 | 0.162 | 0.318 | 390 | 22.98 | 4.31 |
3X300 | 88.0 | 6,300 | 0.100 | 0.130 | 0.309 | 447 | 28.67 | 4.60 |
