Aluminum medium voltage power cables

Aluminum medium voltage power cables refer to electrical cables designed for transmitting electrical power at medium voltage levels, and they use aluminum conductors. Aluminum is chosen for its lighter weight and lower cost compared to copper, although it has a slightly lower electrical conductivity.

Special Features on Request :
Oil Resistance
UV Resistance
Flame Retardant Cat. A, B, C
Flame Retardant Non-Category
Heat Resistance
Anti Termite
Anti Rodent
Low Smoke Zero Halogen

Standard Specification :
SNI IEC 60502-2, IEC 60502-2


Type		Application

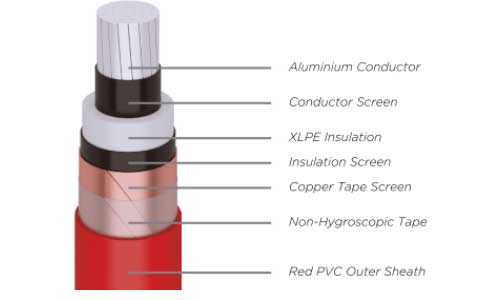

NA2XSY (Al/XLPE/CTS/PVC) (Aluminium Conductor, XLPE Insulated, Copper Tape Screen, PVC Sheathed)	1 Core	For power stations and switchgear as well stations because of the small bending radius in confined spaces indoors. As underground because of lightweight where installation conditions are difficult.

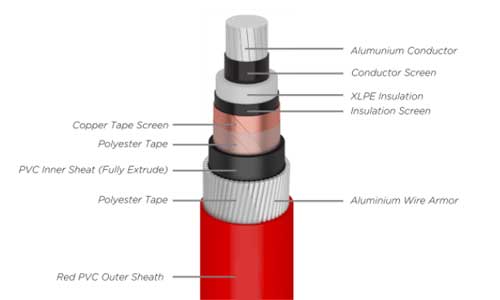

NA2XSRY (Al/XLPE/CTS/AWA/PVC) (Aluminium Conductor, XLPE Insulated, Copper Tape Screen, PVC Sheathed, AlumuniumWire Armor, PVC Sheathed)	1 Core	For installation indoors, in-ground direct buried, for power station and switchgear, if there is a risk that low mechanical damage may occur.

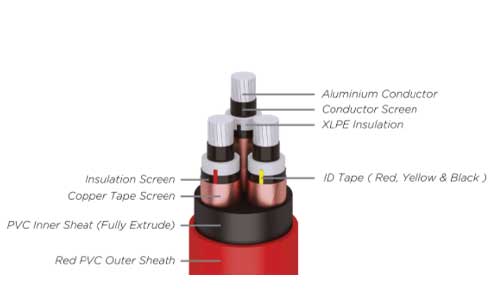

NA2XSEY (Al/XLPE/CTS/PVC) (Aluminium Conductor, XLPE Insulated, Copper Tape Screen, PVC Sheathed)	3 Core	Indoors, cable trunking, outdoors and in the ground; For power stations, industry, and switchgear.

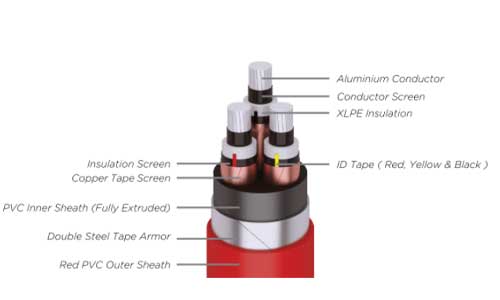

NA2XSEBY (Al/XLPE/CTS/DSTA/PVC) (Aluminium Conductor, XLPE Insulated, Copper Tape Screen, PVC Sheathed, Double Steel Tape Armor, PVC Sheathed)	3 Core	For installation indoors, in-ground direct buried, for power station and switchgear, if there is a risk that low mechanical damage may occur.

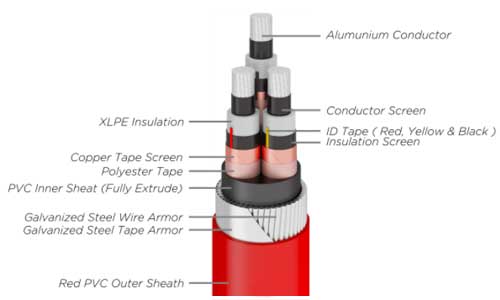

NA2XSERGBY (Al/XLPE/CTS/SWA/PVC) (Aluminium Conductor, XLPE Insulated, Copper Tape Screen, PVC Sheathed, Steel Wire Armor, PVC Sheathed)	3 Core	For installation indoors, in-ground direct buried, for power station and switchgear, if there is a risk that low mechanical damage may occur.

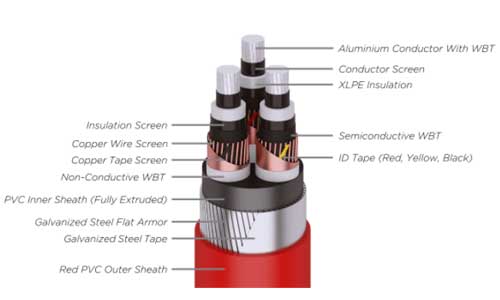

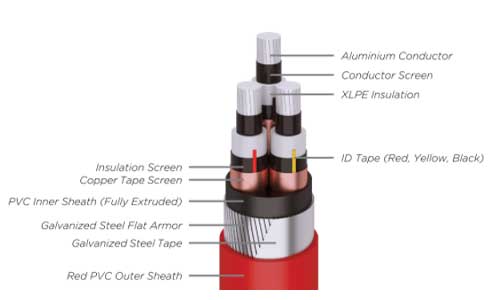

NA2XSEFGBY (Al/XLPE/CTS/SFA/PVC) (Aluminium Conductor, XLPE Insulated, Copper Tape Screen, PVC Inner Sheathed, Galvanized Steel Flat Armor, PVC Sheathed)	3 Core	For installation in the ground, indoors, cable trunking, and outdoors if increased mechanical protection is required or where high-pulling stresses may occur during installation or operation.

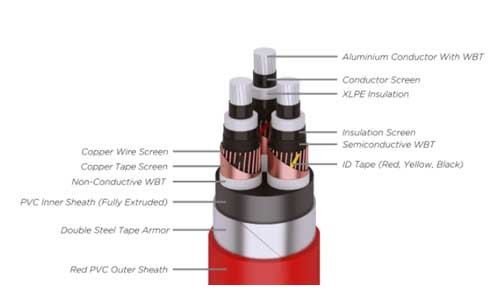

NA2XSEYBY (Al/XLPE/CWS/DSTA/PVC) (Aluminium Conductor, XLPE Insulated, Copper Wire Screen, PVC Inner Sheathed, Double Steel Tape Armor, PVC Sheathed)	3 Core	For installation in the ground, indoors, cable trunking, and outdoors if increased mechanical protection is required or where high-pulling stresses may occur during installation or operation.
NA2XSEYFGBY (Al/XLPE/CWS/SFA/PVC) (Aluminium Conductor, XLPE Insulated, Copper Wire Screen, PVC Inner Sheathed, Steel Flat Armor, PVC Sheathed)	3 Core	For installation in the ground, indoors, cable trunking, and outdoors if increased mechanical protection is required or where high-pulling stresses may occur during installation or operation.

NA2XSY (Al / XLPE / CTS / PVC)

PHYSICAL				PROPERTIES				ELECTRICAL PROPERTIES
Rating	Nom Cross  Section Area			Approx. Overall Diameter	Approx. Cable Weight	Conductor		L	X	C	Z	Max. Current - Carrying Capacity at 30 °C		Max. Short Circuit Current at 1 Second
						Max. DC Resistance at 20 °C	Max. AC Resistance at 90 °C
												in Air	in Ground
	mm²			mm	kg/mm	ohm/km	Ohm/km	mH/km	Ohm/km	µF/km	Ohm/km	A	A	kA
3.6/6 (7.2) kV	1 1 1 1 1 1 1 1 1 1 1 1 1	x x x x x x x x x x x x x	35 50 70 95 120 150 185 240 300 400 500 630 800	19.60 20.50 22.35 23.80 25.20 26.75 28.27 31.10 33.80 37.58 42.88 46.58 51.28	530 591 705 792 1,203 1,055 1,200 1,432 1,730 2,110 2,698 3,268 3,849	0.868 0.641 0.443 0.320 0.253 0.206 0.164 0.125 0.100 0.078 0.061 0.047 0.037	1.113 0.822 0.568 0.411 0.325 0.265 0.211 0.162 0.130 0.102 0.081 0.064 0.052	0.418 0.403 0.379 0.362 0.351 0.343 0.334 0.325 0.321 0.319 0.325 0.316 0.307	0.131 0.126 0.119 0.114 0.110 0.108 0.105 0.102 0.101 0.100 0.102 0.099 0.096	0.219 0.240 0.282 0.320 0.352 0.382 0.417 0.459 0.479 0.480 0.473 0.528 0.599	1.121 0.832 0.581 0.426 0.343 0.286 0.236 0.191 0.164 0.143 0.130 0.118 0.109	183 215 266 318 364 410 466 545 620 717 831 953 1076	196 229 279 330 374 417 470 541 608 692 787 893 997	3.29 4.70 6.58 8.93 11.28 14.10 17.39 22.56 28.20 37.60 47.00 59.22 75.20
6/10 (12) kV	1 1 1 1 1 1 1 1 1 1 1 1 1	x x x x x x x x x x x x x	35 50 70 95 120 150 185 240 300 400 500 630 800	21.40 22.30 23.95 25.60 27.00 28.75 30.27 32.90 35.00 38.58 43.48 46.98 51.68	606 670 753 876 1,291 1,164 1,314 1,542 1,768 2,183 2,749 3,249 3,884	0.868 0.641 0.443 0.320 0.253 0.206 0.164 0.125 0.100 0.078 0.061 0.047 0.037	1.113 0.822 0.568 0.411 0.325 0.265 0.211 0.161 0.130 0.102 0.081 0.064 0.052	0.448 0.431 0.404 0.386 0.373 0.363 0.353 0.340 0.331 0.326 0.328 0.319 0.309	0.141 0.135 0.127 0.121 0.117 0.114 0.111 0.107 0.104 0.102 0.103 0.100 0.097	0.182 0.199 0.232 0.261 0.286 0.310 0.337 0.379 0.416 0.441 0.455 0.508 0.576	1.122 0.833 0.582 0.428 0.345 0.288 0.238 0.194 0.166 0.144 0.131 0.119 0.110	187 221 271 325 371 417 473 552 624 720 832 953 1078	198 232 281 333 377 419 472 543 609 693 787 893 998	3.29 4.70 6.58 8.93 11.28 14.10 17.39 22.56 28.20 37.60 47.00 59.22 75.20
8.7/15 (17.5) kV	1 1 1 1 1 1 1 1 1 1 1 1 1	x x x x x x x x x x x x x	35 50 70 95 120 150 185 240 300 400 500 630 800	23.40 24.30 26.15 27.80 29.40 30.95 32.67 35.10 37.20 40.78 45.68 49.18 54.08	671 736 857 986 1,419 1,288 1,458 1,642 1,909 2,340 2,922 3,431 4,107	0.868 0.641 0.443 0.320 0.253 0.206 0.164 0.125 0.100 0.078 0.061 0.047 0.037	1.113 0.822 0.568 0.411 0.325 0.265 0.211 0.161 0.130 0.102 0.081 0.063 0.051	0.480 0.461 0.432 0.411 0.397 0.386 0.375 0.360 0.350 0.342 0.342 0.332 0.321	0.151 0.145 0.136 0.129 0.125 0.121 0.118 0.113 0.110 0.107 0.107 0.104 0.101	0.154 0.168 0.194 0.217 0.237 0.256 0.277 0.311 0.340 0.363 0.380 0.423 0.477	1.123 0.835 0.584 0.430 0.348 0.291 0.242 0.197 0.170 0.148 0.134 0.122 0.113	192 226 278 333 379 425 482 560 634 731 843 965 1090	200 234 284 336 379 422 475 546 613 697 792 899 1004	3.29 4.70 6.58 8.93 11.28 14.10 17.39 22.56 28.20 37.60 47.00 59.22 75.20
12/20 (24) kV	1 1 1 1 1 1 1 1 1 1 1 1 1	x x x x x x x x x x x x x	35 50 70 95 120 150 185 240 300 400 500 630 800	25.40 26.30 28.15 30.00 31.60 33.15 34.67 37.10 39.40 42.98 47.88 51.38 56.08	764 832 959 1,106 1,545 1,422 1,544 1,770 2,063 2,509 3,109 3,626 4,293	0.868 0.641 0.443 0.320 0.253 0.206 0.164 0.125 0.100 0.078 0.061 0.047 0.037	1.113 0.822 0.568 0.411 0.325 0.265 0.211 0.161 0.130 0.102 0.080 0.063 0.051	0.506 0.486 0.454 0.433 0.417 0.405 0.393 0.376 0.365 0.356 0.355 0.343 0.332	0.159 0.153 0.143 0.136 0.131 0.127 0.123 0.118 0.115 0.112 0.111 0.108 0.104	0.138 0.149 0.171 0.191 0.207 0.223 0.241 0.270 0.294 0.315 0.333 0.369 0.416	1.124 0.836 0.586 0.432 0.350 0.294 0.244 0.200 0.173 0.151 0.137 0.125 0.116	197 231 284 339 385 432 488 568 642 739 851 974 1101	202 236 286 338 381 425 477 550 616 700 796 903 1010	3.29 4.70 6.58 8.93 11.28 14.10 17.39 22.56 28.20 37.60 47.00 59.22 75.20
18/30 (36) kV	1 1 1 1 1 1 1 1 1 1 1 1 1	x x x x x x x x x x x x x	35 50 70 95 120 150 185 240 300 400 500 630 800	30.60 31.70 33.55 35.40 36.80 38.35 39.87 42.50 44.80 48.18 53.08 56.78 61.48	1,040 1,127 1,269 1,433 1,868 1,723 1,892 2,157 2,470 2,877 3,512 4,136 4,843	0.868 0.641 0.443 0.320 0.253 0.206 0.164 0.125 0.100 0.078 0.061 0.047 0.037	1.113 0.822 0.568 0.411 0.325 0.265 0.211 0.161 0.129 0.102 0.080 0.063 0.051	0.561 0.540 0.504 0.479 0.461 0.447 0.433 0.414 0.400 0.389 0.384 0.370 0.356	0.176 0.169 0.158 0.150 0.145 0.140 0.136 0.130 0.126 0.122 0.120 0.116 0.112	0.112 0.120 0.137 0.151 0.163 0.175 0.187 0.208 0.225 0.243 0.259 0.286 0.320	1.127 0.839 0.590 0.437 0.356 0.299 0.251 0.207 0.180 0.159 0.145 0.132 0.123	207 242 296 352 400 446 505 585 660 757 870 995 1124	206 240 290 343 387 430 483 556 623 707 803 912 1021	3.29 4.70 6.58 8.93 11.28 14.10 17.39 22.56 28.20 37.60 47.00 59.22 75.20

Please consult us for more product parameters. Get a free quote by E-mail：info@cable-uni.com
