0.6/1 kV NAYY Cable
Application
NAYY cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV. which can be used in fixed industrial power applications, underground tunnels, etc. Using steel wire armour offers great mechanical protection, making it rigid with a large radius. NAYY is used in power plants industrial and switching installations, in secondary distribution networks and other.Standard and Approval
VDE 0276 part 603IEC 60502
IEC 60228

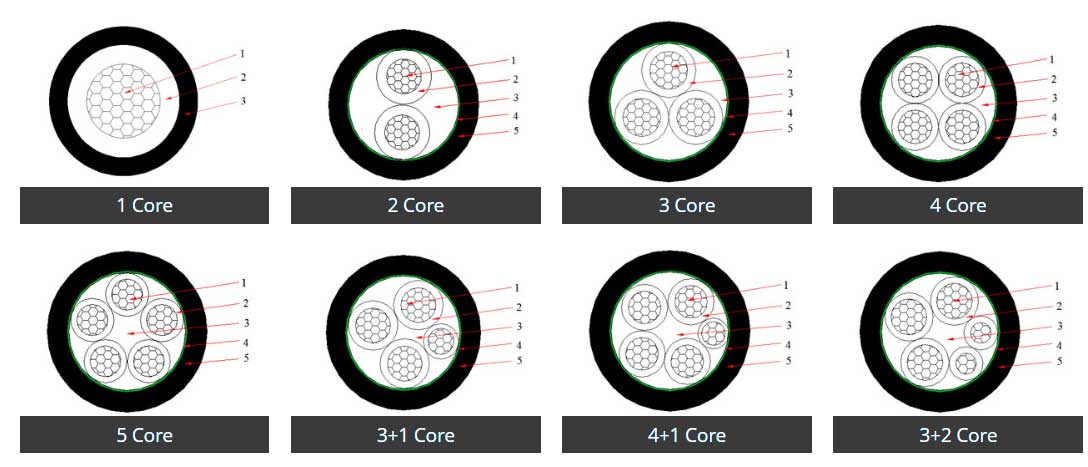

Construction
Conductors: Al, class 1 or 2 according to EN 60228
Insulation: PVC compound DIV 4
Bedding: Extruded elastomere or plastomere
compound or plastic tape
Sheath: PVC compound DMV 5
Cable Parameter
0.6/1kV-1 Core Aluminum Conductor PVC Insulated PVC Sheathed Power Cable| No. of cores and nominal cross section | Thickness of Insulation | Thickness of Sheath | Approx. overall Diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In Air(A) | In Ground(A) |
| 1X10 | 1.0 | 1.4 | 8.6 | 97 | 3.08 | 42 | 65 |
| 1X16 | 1.0 | 1.4 | 9.6 | 125 | 1.91 | 58 | 85 |
| 1X25 | 1.2 | 1.4 | 11.2 | 171 | 1.2 | 74 | 105 |
| 1X35 | 1.2 | 1.4 | 12.2 | 206 | 0.868 | 90 | 125 |
| 1X50 | 1.4 | 1.4 | 13.6 | 265 | 0.641 | 110 | 150 |
| 1X70 | 1.4 | 1.4 | 15.5 | 343 | 0.443 | 140 | 185 |
| 1X95 | 1.6 | 1.5 | 17.7 | 453 | 0.32 | 170 | 225 |
| 1X120 | 1.6 | 1.5 | 19.1 | 545 | 0.253 | 200 | 255 |
| 1X150 | 1.8 | 1.6 | 21 | 675 | 0.206 | 230 | 285 |
| 1X185 | 2.0 | 1.7 | 23.3 | 821 | 0.164 | 265 | 323 |
| 1X240 | 2.2 | 1.8 | 26.2 | 1044 | 0.125 | 320 | 380 |
| 1X300 | 2.4 | 1.9 | 29 | 1284 | 0.1 | 370 | 430 |
| 1X400 | 2.6 | 2 | 32.3 | 1638 | 0.0778 | 435 | 490 |
| 1X500 | 2.8 | 2.1 | 36.2 | 2063 | 0.0605 | 510 | 565 |
| 1X630 | 2.8 | 2.2 | 40 | 2515 | 0.0469 | 600 | 655 |
0.6/1kV-2 Core Aluminum Conductor PVC Insulated PVC Sheathed Power Cable
| No. of cores and nominal cross section | Thickness of Insulation | Thickness of Sheath | Approx. overall Diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In Air(A) | In Ground(A) |
| 2X2.5 | 0.8 | 1.8 | 10.9 | 118 | 12.1 | 19 | - |
| 2X4 | 1 | 1.8 | 12.7 | 156 | 7.41 | 26 | - |
| 2X6 | 1 | 1.8 | 13.7 | 185 | 4.61 | 34 | - |
| 2X10 | 1 | 1.8 | 16.2 | 255 | 3.08 | 44 | 65 |
| 2X16 | 1 | 1.8 | 18.4 | 330 | 1.91 | 59 | 85 |
| 2X25 | 1.2 | 1.8 | 21.7 | 454 | 1.2 | 76 | 110 |
| 2X35 | 1.2 | 1.8 | 23.0 | 538 | 0.868 | 93 | 135 |
| 2X50 | 1.4 | 1.8 | 26.4 | 699 | 0.641 | 115 | 160 |
| 2X70 | 1.4 | 1.9 | 29.7 | 899 | 0.443 | 145 | 195 |
| 2X95 | 1.6 | 2.0 | 34.2 | 1196 | 0.32 | 170 | 235 |
| 2X120 | 1.6 | 2.1 | 37.2 | 1436 | 0.253 | 205 | 270 |
| 2X150 | 1.8 | 2.2 | 41.2 | 1776 | 0.206 | 235 | 305 |
| 2X185 | 2 | 2.4 | 45.5 | 2165 | 0.164 | 275 | 345 |
0.6/1kV-3 Core Aluminum Conductor PVC Insulated PVC Sheathed Power Cable
| No. of cores and nominal cross section | Thickness of Insulation | Thickness of Sheath | Approx. overall Diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In Air(A) | In Ground(A) |
| 3X2.5 | 0.8 | 1.8 | 11.4 | 137 | 12.1 | 17 | - |
| 3X4 | 1.0 | 1.8 | 13.3 | 188 | 7.41 | 22 | - |
| 3X6 | 1.0 | 1.8 | 14.5 | 224 | 4.61 | 29 | - |
| 3X10 | 1.0 | 1.8 | 17.1 | 307 | 3.08 | 38 | 55 |
| 3X16 | 1.0 | 1.8 | 19.5 | 403 | 1.91 | 51 | 73 |
| 3X25 | 1.2 | 1.8 | 23.1 | 559 | 1.2 | 65 | 94 |
| 3X35 | 1.2 | 1.8 | 24.5 | 673 | 0.868 | 80 | 110 |
| 3X50 | 1.4 | 1.8 | 28.2 | 882 | 0.641 | 98 | 135 |
| 3X70 | 1.4 | 1.9 | 31.8 | 1150 | 0.443 | 120 | 165 |
| 3X95 | 1.6 | 2.1 | 36.6 | 1538 | 0.32 | 150 | 200 |
| 3X120 | 1.6 | 2.2 | 39.9 | 1855 | 0.253 | 180 | 230 |
| 3X150 | 1.8 | 2.3 | 44.2 | 2301 | 0.206 | 200 | 255 |
| 3X185 | 2 | 2.5 | 48.8 | 2810 | 0.164 | 235 | 290 |
| 3X240 | 2.2 | 2.7 | 55.0 | 3597 | 0.125 | 280 | 335 |
| 3X300 | 2.4 | 2.8 | 60.8 | 4428 | 0.1 | 320 | 375 |
0.6/1kV-4 Core Aluminum Conductor PVC Insulated PVC Sheathed Power Cable
| No. of cores and nominal cross section | Thickness of Insulation | Thickness of Sheath | Approx. overall Diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In Air(A) | In Ground(A) |
| 4X2.5 | 0.8 | 1.8 | 12.3 | 160 | 12.1 | 17 | - |
| 4X4 | 1 | 1.8 | 14.4 | 224 | 7.41 | 22 | - |
| 4X6 | 1 | 1.8 | 15.7 | 270 | 4.61 | 29 | - |
| 4X10 | 1 | 1.8 | 18.7 | 373 | 3.08 | 38 | 55 |
| 4X16 | 1 | 1.8 | 21.3 | 494 | 1.91 | 51 | 73 |
| 4X25 | 1.2 | 1.8 | 25.3 | 692 | 1.2 | 65 | 94 |
| 4X35 | 1.2 | 1.8 | 26.9 | 838 | 0.868 | 80 | 110 |
| 4X50 | 1.4 | 1.9 | 31.2 | 1118 | 0.641 | 98 | 135 |
| 4X70 | 1.4 | 2.0 | 35.3 | 1464 | 0.443 | 120 | 165 |
| 4X95 | 1.6 | 2.2 | 40.7 | 1962 | 0.32 | 150 | 200 |
| 4X120 | 1.6 | 2.3 | 44.3 | 2371 | 0.253 | 180 | 230 |
| 4X150 | 1.8 | 2.5 | 49.2 | 2946 | 0.206 | 200 | 255 |
| 4X185 | 2 | 2.6 | 54.4 | 3603 | 0.164 | 235 | 290 |
| 4X240 | 2.2 | 2.9 | 61.3 | 4619 | 0.125 | 280 | 335 |
| 4X300 | 2.4 | 3.1 | 67.8 | 5694 | 0.1 | 320 | 375 |
0.6/1kV-5 Core Aluminum Conductor PVC Insulated PVC Sheathed Power Cable
| No. of cores and nominal cross section | Thickness of Insulation | Thickness of Sheath | Approx. overall Diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In Air(A) | In Ground(A) |
| 5X2.5 | 0.8 | 1.8 | 13.3 | 195.8 | 12.1 | 22 | - |
| 5X4 | 1 | 1.8 | 15.6 | 271.3 | 7.41 | 29 | - |
| 5X6 | 1 | 1.8 | 17.1 | 320.4 | 4.61 | 38 | - |
| 5X10 | 1 | 1.8 | 20.4 | 455.3 | 3.08 | 51 | 55 |
| 5X16 | 1 | 1.8 | 23.4 | 593.7 | 1.91 | 65 | 73 |
| 5X25 | 1.2 | 1.8 | 27.9 | 837.1 | 1.2 | 80 | 94 |
| 5X35 | 1.2 | 1.9 | 29.7 | 1026.1 | 0.868 | 98 | 110 |
| 5X50 | 1.4 | 2.0 | 34.6 | 1377.5 | 0.641 | 120 | 135 |
| 5X70 | 1.4 | 2.2 | 39.2 | 1806.4 | 0.443 | 150 | 165 |
| 5X95 | 1.6 | 2.3 | 45.2 | 2425.6 | 0.32 | 180 | 200 |
| 5X120 | 1.6 | 2.5 | 49.3 | 2934.6 | 0.253 | 200 | 230 |
| 5X150 | 1.8 | 2.6 | 54.8 | 3650.9 | 0.206 | 235 | 255 |
| 5X185 | 2 | 2.8 | 60.5 | 4468.0 | 0.164 | 280 | 290 |
| 5X240 | 2.2 | 3.1 | 68.3 | 5734.5 | 0.125 | 320 | 335 |
| 5X300 | 2.4 | 3.3 | 75.5 | 7074.1 | 0.1 | 380 | 375 |
0.6/1kV-3+1 Core Aluminum Conductor PVC Insulated PVC Sheathed Power Cable
| No. of cores and nominal cross section | Thickness of Insulation | Thickness of Sheath | Approx. overall Diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In Air(A) | In Ground(A) |
| 3*4+1*2.5 | 1.0/0.8 | 1.8 | 13.9 | 217 | 7.41/12.1 | 29 | - |
| 3*6+1*4 | 1.0/1.0 | 1.8 | 15.4 | 259 | 4.61/7.41 | 38 | - |
| 3*10+1*6 | 1.0/1.0 | 1.8 | 18.0 | 347 | 3.08/4.61 | 51 | 55 |
| 3*16+1*10 | 1.0/1.0 | 1.8 | 20.7 | 464 | 1.91/3.08 | 65 | 73 |
| 3*25+1*16 | 1.2/1.0 | 1.8 | 24.4 | 659 | 1.2/1.91 | 80 | 94 |
| 3*35+1*16 | 1.2/1.0 | 1.8 | 25.6 | 764 | 0.868/1.91 | 98 | 110 |
| 3*50+1*25 | 1.4/1.2 | 1.9 | 29.8 | 1025 | 0.641/1.2 | 120 | 135 |
| 3*70+1*35 | 1.4/1.2 | 2.0 | 33.3 | 1323 | 0.443/0.868 | 150 | 165 |
| 3*95+1*50 | 1.6/1.4 | 2.1 | 38.4 | 1765 | 0.32/0.641 | 180 | 200 |
| 3*120+1*70 | 1.6/1.4 | 2.2 | 42.2 | 2145 | 0.253/0.443 | 200 | 230 |
| 3*150+1*70 | 1.8/1.4 | 2.4 | 45.9 | 2537 | 0.206/0.443 | 235 | 255 |
| 3*185+1*95 | 2.0/1.6 | 2.5 | 51.0 | 3207 | 0.164/0.32 | 280 | 290 |
| 3*240+1*120 | 2.2/1.6 | 2.7 | 57.2 | 4033 | 0.125/0.253 | 320 | 335 |
| 3*300+1*150 | 2.4/1.8 | 2.9 | 63.3 | 4980 | 0.1/0.206 | 380 | 375 |
0.6/1kV-4+1core Aluminum Conductor PVC Insulated PVC Sheathed Power Cable
| No. of cores and nominal cross section | Thickness of Insulation | Thickness of Sheath | Approx. overall Diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In Air(A) | In Ground(A) |
| 4*4+1*2.5 | 1.0/0.8 | 1.8 | 15.2 | 249 | 7.41/12.1 | 29 | - |
| 4*6+1*4 | 1.0/1.0 | 1.8 | 16.8 | 309 | 4.61/7.41 | 38 | - |
| 4*10+1*6 | 1.0/1.0 | 1.8 | 19.7 | 420 | 3.08/4.61 | 51 | 55 |
| 4*16+1*10 | 1.0/1.0 | 1.8 | 22.8 | 563 | 1.91/3.08 | 65 | 73 |
| 4*25+1*16 | 1.2/1.0 | 1.8 | 27.0 | 792 | 1.2/1.91 | 80 | 94 |
| 4*35+1*16 | 1.2/1.0 | 1.8 | 28.4 | 932 | 0.868/1.91 | 98 | 110 |
| 4*50+1*25 | 1.4/1.2 | 2.0 | 33.2 | 1282 | 0.641/1.2 | 120 | 135 |
| 4*70+1*35 | 1.4/1.2 | 2.1 | 37.3 | 1648 | 0.443/0.868 | 150 | 165 |
| 4*95+1*50 | 1.6/1.4 | 2.3 | 43.1 | 2245 | 0.32/0.641 | 180 | 200 |
| 4*120+1*70 | 1.6/1.4 | 2.4 | 47.3 | 2731 | 0.253/0.443 | 200 | 230 |
| 4*150+1*70 | 1.8/1.4 | 2.5 | 51.6 | 3229 | 0.206/0.443 | 235 | 255 |
| 4*185+1*95 | 2.0/1.6 | 2.7 | 57.5 | 4042 | 0.164/0.32 | 280 | 290 |
| 4*240+1*120 | 2.2/1.6 | 3.0 | 64.5 | 5143 | 0.125/0.253 | 320 | 335 |
| 4*300+1*150 | 2.4/1.8 | 3.2 | 71.4 | 6342 | 0.1/0.206 | 380 | 375 |
0.6/1kV-3+2 Core Aluminum Conductor PVC Insulated PVC Sheathed Power Cable
| No. of cores and nominal cross section | Thickness of Insulation | Thickness of Sheath | Approx. overall Diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In Air(A) | In Ground(A) |
| 3*4+2*2.5 | 1.0/0.8 | 1.8 | 14.7 | 234 | 7.41/12.1 | 29 | - |
| 3*6+2*4 | 1.0/1.0 | 1.8 | 16.5 | 298 | 4.61/7.41 | 38 | - |
| 3*10+2*6 | 1.0/1.0 | 1.8 | 19.0 | 394 | 3.08/4.61 | 51 | 55 |
| 3*16+2*10 | 1.0/1.0 | 1.8 | 22.2 | 533 | 1.91/3.08 | 65 | 73 |
| 3*25+2*16 | 1.2/1.0 | 1.8 | 26.0 | 739 | 1.2/1.91 | 80 | 94 |
| 3*35+2*16 | 1.2/1.0 | 1.8 | 27.0 | 841 | 0.868/1.91 | 98 | 110 |
| 3*50+2*25 | 1.4/1.2 | 1.9 | 32.0 | 1212 | 0.641/1.2 | 120 | 135 |
| 3*70+2*35 | 1.4/1.2 | 2.0 | 35.4 | 1486 | 0.443/0.868 | 150 | 165 |
| 3*95+2*50 | 1.6/1.4 | 2.2 | 41.0 | 2004 | 0.32/0.641 | 180 | 200 |
| 3*120+2*70 | 1.6/1.4 | 2.3 | 45.3 | 2477 | 0.253/0.443 | 200 | 230 |
| 3*150+2*70 | 1.8/1.4 | 2.4 | 48.5 | 2859 | 0.206/0.443 | 235 | 255 |
| 3*185+2*95 | 2.0/1.6 | 2.6 | 54.4 | 3628 | 0.164/0.32 | 280 | 290 |
| 3*240+2*120 | 2.2/1.6 | 2.8 | 60.7 | 4570 | 0.125/0.253 | 320 | 335 |
| 3*300+2*150 | 2.4/1.8 | 3.0 | 67.2 | 5624 | 0.1/0.206 | 380 | 375 |
