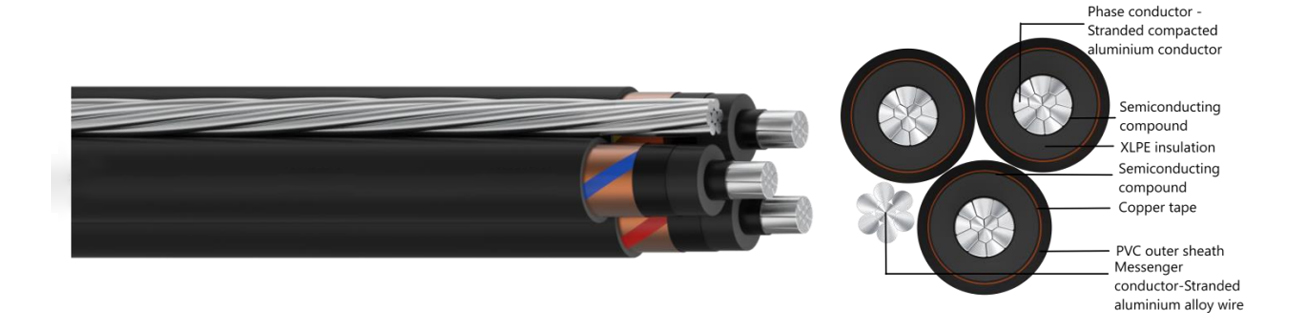

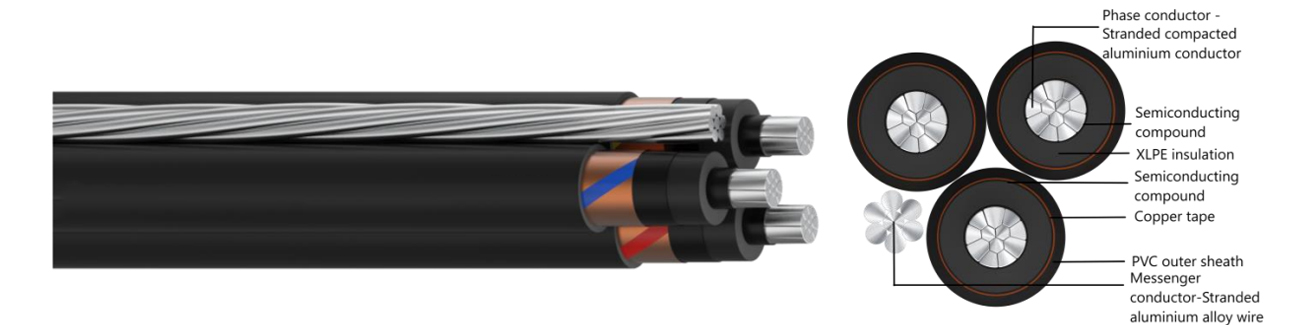

Conductor:
Phase conductor: High conductivity annealed stranded aluminium conductor produced in-house from state-of-the art machine
Messenger conductor: Stranded circular or compacted heat-treated aluminium magnesium alloy wire
Screen: Conductor screened by semi-conducting compound for HT phase conductor
Insulation:
Phase conductor: in-house developed compounded XLPE
Messenger conductor: in-house developed compounded XLPE (optional)
Screen: Insulation screened by semi-conducting compound followed by copper tape for HT phase conductor
Sheath: Extruded sheathing over insulation screen for HT phase conductor.
Uni assures the highest quality standard in every product by having stringent quality control with requisite testing which are applied at every single stage from raw material to finished goods.
The construction is based on the application and requirement of the user against IS 7098-2.

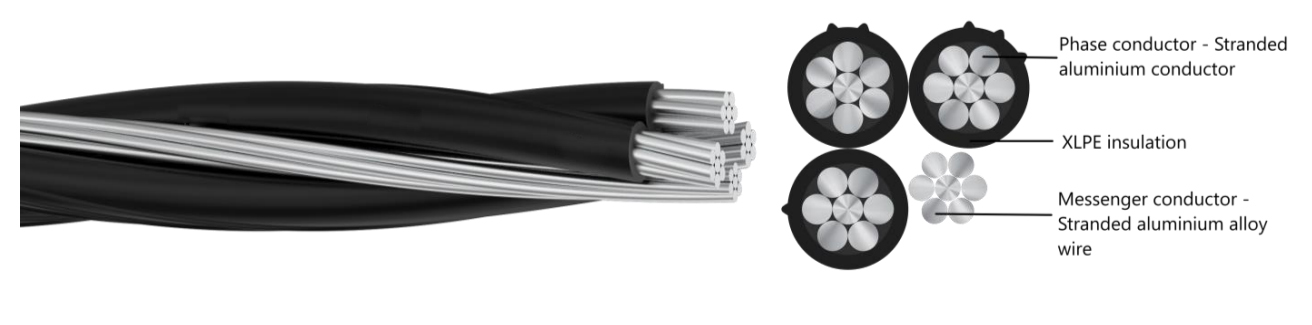

Aerial Bunched Cable (ABC) Overhead Power Distribution Cable, 1.9/3.3kV
Application: Aerial Bunched Cable (ABC) is recommended as overhead distribution feeder in rural or residential areas and hill area where underground installation is not possible.

Phase Conductor+Messenger(Bare)
Construction (Phase+ Messenger) nx  mm²	Insulation thickness mm	Phase conductor Overall diameter mm	messenger Overall diameter mm	Weight (Approx.)	Minimum Breaking load of messenger KN
3x25+1x25	2.20	14.42	6.42	802	7.7
3x35+1x35	2.20	15.56	7.60	965	10.8
3x50+1x50	2.20	17.15	9.11	1208	15.5
3x70+1x50	2.20	19.20	9.11	1508	15.5
3x95+1x55	2.20	21.00	9.53	1821	17.0
3x120+1x70	2.20	22.61	10.77	2152	21.6
3x150+lx75	2.20	24.29	11.13	2499	23.1
3x185+1x95	2.20	26.04	12.55	2932	29.4
3x240+lx125	2.20	28.49	14.36	3593	38.5
3x300+1x150	2.20	31.30	15.75	4378	46.3
Phase Conductor+Messenger(Insulated)
Construction (Phase+ Messenger) nx  mm²	Insulation thickness mm		Phase conductor Overall diameter mm	messenger Overall diameter mm	Weight (Approx.)	Minimum Breaking load of messenger KN
	Phase mm	Messenger mm
3x25+1x25	2.20	2.20	14.4	10.8	866	7.7
3x35+1x35	2.20	2.20	15.6	12.0	1038	10.8
3x50+1x50	2.20	2.20	17.2	13.5	1292	15.5
3x70+1x50	2.20	2.20	19.2	13.5	1593	15.5
3x95+1x55	2.20	2.20	21.0	13.9	1909	17.0
3x120+1x70	2.20	2.20	22.6	15.2	2249	21.6
3x150+1x75	2.20	2.20	24.3	15.5	2599	23.1
3x185+1x95	2.20	2.20	26.0	16.9	3043	29.4
3x240+1x125	2.20	2.20	28.5	18.8	3716	38.5
3x300+1x150	2.20	2.20	31.3	20.2	4512	46.3

Electrical characteristics
Current carrying capacity and maximum DC conductor resistance.

Construction (Phase+Messenger) n x mm²	Maximum DC conductor resistance at 20°C		Reactance Q/km	Current carrying capacity in Air @40℃ Amp.
	Phase Ω/km	Messenger Q/km
3x25+1x25	1.2	1.33	0.115	118
3x35+1x35	0.868	0.95	0.109	142
3x50+1x50	0.641	0.66	0.100	169
3x70+1x50	0.443	0.66	0.0971	212
3x95+1x55	0.32	0.605	0.0931	256
3x120+1x70	0.253	0.474	0.0893	296
3x150+1x75	0.206	0.444	0.0868	333
3x185+1x95	0.164	0.349	0.0846	383
3x240+1x125	0.125	0.268	0.0821	444
3x300+lx150	0.1	0.223	0.0804	502

De-Rating Factor
De-ratting factor for various ambient temperature.

Air-Temperature	25℃	30℃	35℃	40°℃	45℃	50℃	55℃	60℃
De-rating factor	1.14	1.1	1.05	1	0.95	0.89	0.84	0.77

Aerial Bunched Cable (ABC) Overhead Power Distribution Cable, 6.35/11KV(E) AC

Application: Aerial Bunched Cable (ABC) is recommended as overhead distribution feeder in rural or residential areas and hill area where underground installation is not possible.

Phase Conductor+Messenger(Bare)
Construction nx  mm²	Insulation thickness mm	Phase conductor Overall diameter mm	messenger Overall diameter mm	Weight (Approx.)	Minimum Breaking load of messenger KN
3x25+1x50	3.60	20.10	9.1l	1487	15.5
3x35+1x50	3.60	21.24	9.11	1660	15.5
3x50+1x70	3.60	22.83	10.77	1969	21.6
3x70+1x70	3.60	24.48	10.77	2266	21.6
3x95+1x80	3.60	26.28	11.49	2647	24.7
3x120+1x95	3.60	27.89	12.55	3027	29.4
3x150+1x125	3.60	29.97	14.36	3585	38.5
3x185+1x125	3.60	31.72	14.36	4020	38.5
3x240+1x150	3.60	34.17	15.75	4750	46.3
3x300+1x185	3.60	36.58	17.49	5547	57.1
Phase Conductor +Messenger(Insulated)
Construction nx  mm²	Insulation thickness mm		Phase conductor Overall diameter mm	messenger Overall diameter mm	Weight (Approx.)	Minimum Breaking load of messenger KN
	Phase mm	Messenger mm
3x25+1x50	3.60	3.60	20.10	16.3	1643	15.5
3x35+1x50	3.60	3.60	21.24	16.3	1816	15.5
3x50+1x70	3.60	3.60	22.83	18.0	2145	21.6
3x70+1x70	3.60	3.60	24.48	18.0	2442	21.6
3x95+1x80	3.60	3.60	26.28	18.7	2832	24.7
3x120+1x95	3.60	3.60	27.89	19.7	3225	29.4
3x150+1x125	3.60	3.60	29.97	21.6	3804	38.5
3x185+1x125	3.60	3.60	31.72	21.6	4240	38.5
3x240+1x150	3.60	3.60	34.17	23.0	4987	46.3
3x300+1x185	3.60	3.60	36.58	24.7	5805	57.1

Electrical characteristics
Current carrying capacity and maximum DC conductor resistance.

Construction (Phase+Messenger) nx  mm²	Maximum DC conductor resistance at 20C		Reactance Q/km	Current carrying capacity in Air @40℃ Amp.
	Phase Q/km	Messenger Q/km
3x25+1x50	1.2	0.663	0.135	119
3x35+1x50	0.868	0.663	0.129	143
3x50+1x70	0.641	0.474	0.118	171
3x70+1x70	0.443	0.474	0.112	213
3x95+lx80	0.32	0.416	0.107	258
3x120+1x95	0.253	0.349	0.103	298
3x150+1x125	0.206	0.268	0.100	335
3x185+1x125	0.164	0.268	0.0970	384
3x240+lx150	0.125	0.223	0.0935	446
3x300+1x185	0.1	0.181	0.0902	503

De-Rating Factor
De-ratting factor for various ambient temperature.

Air-Temperature	25℃	30℃	35℃	40°℃	45℃	50℃	55℃	60℃
De-rating factor	1.14	1.1	1.05	1	0.95	0.89	0.84	0.77

Aerial Bunched Cable (ABC) Overhead Power Distribution Cable, 19/33KV(E) AC

Application: Aerial Bunched Cable (ABC) is recommended as overhead distribution feeder in rural or residential areas and hill areas where underground installation is not possible.

Phase Conductor+Messenger(Bare)
Construction nx  mm²	Insulation thickness mm	Phase conductor Overall diameter mm	messenger Overall diameter mm	Weight (Approx.)	Minimum Breaking load of messenger KN
3x25+1x95	8.80	30.90	12.55	3100	29.39
3x35+1x100	8.80	32.04	12.85	3345	30.82
3x50+1x125	8.80	33.63	14.36	3749	38.50
3x70+1x125	8.80	35.28	14.36	4131	38.50
3x95+1x150	8.80	37.08	15.75	4648	46.32
3x120+1x150	8.80	38.69	15.75	5068	46.32
3x150+1x185	8.80	40.77	17.49	5760	57.12
3x185+1x185	8.80	42.52	17.49	6286	57.12
3x240+1x240	8.80	45.37	19.93	7362	74.12
3x300+1x240	8.80	47.78	19.93	8194	74.12
Phase Conductor+Messenger(Insulated)
Construction nx  mm²	Insulation thickness mm		Phase conductor Overall diameter mm	messenger Overall diameter mm	Weight (Approx.)	Minimum Breaking load of messenger KN
	Phase mm	Messenger mm
3x25+1x95	8.80	8.80	30.90	30.1	3738	29.39
3x35+1x100	8.80	8.80	32.04	30.4	3992	30.82
3x50+1x125	8.80	8.80	33.63	32.0	4442	38.50
3x70+1x125	8.80	8.80	35.28	32.0	4823	38.50
3x95+1x150	8.80	8.80	37.08	33.4	5382	46.32
3x120+1x150	8.80	8.80	38.69	33.4	5802	46.32
3x150+1x185	8.80	8.80	40.77	35.1	6546	57.12
3x185+1x185	8.80	8.80	42.52	35.1	7072	57.12
3x240+1x240	8.80	8.80	45.37	37.5	8221	74.12
3x300+1x240	8.80	8.80	47.78	37.5	9053	74.12

Electrical characteristics
Current carrying capacity and maximum DC conductor resistance.

Nominal cross sectional area mm²	Maximum DC conductor resistance at 20°C		Reactance Q/km	Current carrying capacity in Air @ 40°℃ Amp.
	Phase Ω/km	Messenger Ω/km
3x25+1x95	1.2	0.349	0.162
3x35+1x100	0.868	0.333	0.154	146
3x50+1x125	0.641	0.268	0.143	177
3x70+1x125	0.443	0.268	0.135	220
3x95+lx150	0.32	0.223	0.129	264
3x120+1x150	0.253	0.223	0.123	303
3x150+1x185	0.206	0.181	0.119	340
3x185+1x185	0.164	0.181	0.115	387
3x240+1x240	0.125	0.139	0.111	449
3x300+1x240	0.1	0.139	0.107	501

De-Rating Factor
De-ratting factor for various ambient temperature.

Air-Temperature	25℃	30℃	35℃	40°℃	45℃	50℃	55℃	60℃
De-rating factor	1.14	1.1	1.05	1	0.95	0.89	0.84	0.77
