Duplex Service Drop Cable
Application
This duplexed cable is suited for use as drop cable from a pole mounted transformer to the service entrance of a structure, or as secondary distribution between poles. The cable should be limited to 600V phase to phase and not exceed 90˚C.
Construction
One insulated phase conductors twisted around a bare aluminum alloy or ACSR neutral conductor.
Conductors: Aluminum alloy 1350-H19 wire.
Insulation: Black thermoset cross-linked polyethylene (XLPE).
Neutral: Bare aluminum alloy or ACSR
Additional Standards
ASTM B-230: Aluminum 1350-H19 wire for electrical purposes.
ASTM B-231: Concentric lay stranded aluminum 1350 conductors.
ICEA S-76-474: Neutral supported power cable assemblies with weather resistant extruded insulation rated at 600V.
ASTM B-232: Concentric lay stranded aluminum conductors coated-steel reinforced
Dimensions
Triplex Service Drop Cable
Application
This triplexed cable is suited for use as drop cable from a pole mounted transformer to the service entrance of a structure, or as secondary distribution between poles. The cable should be limited to 600V phase to phase and not exceed 90˚C.
Construction
Two insulated phase conductors twisted around a bare aluminum alloy or ACSR neutral conductor.
Conductors: Aluminum alloy 1350-H19 wire.
Insulation: Black thermoset cross-linked polyethylene (XLPE).
Neutral: Bare aluminum alloy or ACSR
Additional Standards
ASTM B-230: Aluminum 1350-H19 wire for electrical purposes.
ASTM B-231: Concentric lay stranded aluminum 1350 conductors.
ICEA S-76-474: Neutral supported power cable assemblies with weather resistant extruded insulation rated at 600V.
Dimensions

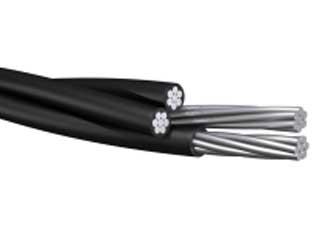

Quadruplex Service Drop Cable
Application
This quadruplexed cable is suited for use as drop cable from a pole mounted transformer to the service entrance of a structure, or as secondary distribution between poles. The cable should be limited to 600V phase to phase and not exceed 90˚C.
Construction
Three insulated phase conductors twisted around a bare aluminum alloy or ACSR neutral conductor.
Conductors: Aluminum alloy 1350-H19 wire.
Insulation: Black thermoset cross-linked polyethylene (XLPE).
Neutral: Bare aluminum alloy or ACSR
Additional Standards
ASTM B-230: Aluminum 1350-H19 wire for electrical purposes.
ASTM B-231: Concentric lay stranded aluminum 1350 conductors.
ICEA S-76-474: Neutral supported power cable assemblies with weather resistant extruded insulation rated at 600V.
Dimensions
Application
This duplexed cable is suited for use as drop cable from a pole mounted transformer to the service entrance of a structure, or as secondary distribution between poles. The cable should be limited to 600V phase to phase and not exceed 90˚C.
Construction
One insulated phase conductors twisted around a bare aluminum alloy or ACSR neutral conductor.
Conductors: Aluminum alloy 1350-H19 wire.
Insulation: Black thermoset cross-linked polyethylene (XLPE).
Neutral: Bare aluminum alloy or ACSR
Additional Standards
ASTM B-230: Aluminum 1350-H19 wire for electrical purposes.
ASTM B-231: Concentric lay stranded aluminum 1350 conductors.
ICEA S-76-474: Neutral supported power cable assemblies with weather resistant extruded insulation rated at 600V.
ASTM B-232: Concentric lay stranded aluminum conductors coated-steel reinforced
Dimensions
| PRODUCT | PHASE CONDUCTOR SIZE | PHASE CONDUCTOR STRANDING | BARE NEUTRAL MESSENGER SIZE | BARE NEUTRAL MESSENGER STRANDING | NEUTRAL TYPE |
| Pekingese | 6 | 1 | 6 | 7 | AAC |
| Collie | 6 | 7 | 6 | 7 | AAC |
| Dachshund | 4 | 1 | 4 | 7 | AAC |
| Spaniel | 4 | 7 | 4 | 7 | AAC |
| Doberman | 2 | 7 | 2 | 7 | AAC |
| Malemute | 1/0 | 19 | 1/0 | 7 | AAC |
| Setter | 6 | 1 | 6 | 6/1 | ACSR |
| Shepherd | 6 | 7 | 6 | 6/1 | ACSR |
| Eskimo | 4 | 1 | 4 | 6/1 | ACSR |
| Terrier | 4 | 7 | 4 | 6/1 | ACSR |
| Chow | 2 | 7 | 2 | 6/1 | ACSR |
| Bull | 1/0 | 19 | 1/0 | 6/1 | ACSR |
| Chihuahua | 6 | 1 | 6 | 7 | 6201 Alloy |
| Vizsla | 6 | 7 | 6 | 7 | 6201 Alloy |
| Harrier | 4 | 1 | 4 | 7 | 6201 Alloy |
| Whippet | 4 | 7 | 4 | 7 | 6201 Alloy |
| Schnauzer | 2 | 7 | 2 | 7 | 6201 Alloy |
| Heeler | 1/0 | 19 | 1/0 | 7 | 6201 Alloy |
Triplex Service Drop Cable
Application
This triplexed cable is suited for use as drop cable from a pole mounted transformer to the service entrance of a structure, or as secondary distribution between poles. The cable should be limited to 600V phase to phase and not exceed 90˚C.
Construction
Two insulated phase conductors twisted around a bare aluminum alloy or ACSR neutral conductor.
Conductors: Aluminum alloy 1350-H19 wire.
Insulation: Black thermoset cross-linked polyethylene (XLPE).
Neutral: Bare aluminum alloy or ACSR
Additional Standards
ASTM B-230: Aluminum 1350-H19 wire for electrical purposes.
ASTM B-231: Concentric lay stranded aluminum 1350 conductors.
ICEA S-76-474: Neutral supported power cable assemblies with weather resistant extruded insulation rated at 600V.
Dimensions
| PRODUCT | PHASE CONDUCTOR SIZE | PHASE CONDUCTOR STRANDING | BARE NEUTRAL MESSENGER SIZE | BARE NEUTRAL MESSENGER STRANDING | NEUTRAL TYPE |
| Patella | 6 | 7 | 6 | 7 | AAC |
| Oyster | 4 | 7 | 4 | 7 | AAC |
| Clam | 2 | 7 | 2 | 7 | AAC |
| Murex | 1/0 | 7 | 1/0 | 7 | AAC |
| Purpura | 1/0 | 19 | 1/0 | 7 | AAC |
| Nassa | 2/0 | 7 | 2/0 | 7 | AAC |
| Trophon | 2/0 | 19 | 2/0 | 7 | AAC |
| Melita | 3/0 | 19 | 3/0 | 19 | AAC |
| Portunus | 4/0 | 19 | 4/0 | 19 | AAC |
| Nannynose | 336.4 | 19 | 336.4 | 19 | AAC |
| Paludina | 6 | 1 | 6 | 41426 | ACSR |
| Voluta | 6 | 7 | 6 | 41426 | ACSR |
| Scallop | 4 | 1 | 6 | 41426 | ACSR |
| Whelk | 4 | 1 | 4 | 41426 | ACSR |
| Strombus | 4 | 7 | 6 | 41426 | ACSR |
| Periwinkle | 4 | 7 | 4 | 41426 | ACSR |
| Cockle | 2 | 7 | 4 | 41426 | ACSR |
| Conch | 2 | 7 | 2 | 41426 | ACSR |
| Janthina | 1/0 | 7 | 2 | 41426 | ACSR |
| Neritina | 1/0 | 7 | 1/0 | 41426 | ACSR |
| Ranella | 1/0 | 19 | 2 | 41426 | ACSR |
| Cenia | 1/0 | 19 | 1/0 | 41426 | ACSR |
| Cavolinia | 2/0 | 7 | 1 | 41426 | ACSR |
| Runcina | 2/0 | 7 | 2/0 | 41426 | ACSR |
| Clio | 2/0 | 19 | 1 | 41426 | ACSR |
| Triton | 2/0 | 19 | 2/0 | 41426 | ACSR |
| Aega | 3/0 | 19 | 1/0 | 41426 | ACSR |
| Mursia | 3/0 | 19 | 3/0 | 41426 | ACSR |
| Cerapus | 4/0 | 19 | 2/0 | 41426 | ACSR |
| Zuzara | 4/0 | 19 | 4/0 | 41426 | ACSR |
| Limpet | 336.4 | 19 | 336.4 | 18/1 | ACSR |
| Minex | 6 | 1 | 6 | 7 | 6201 Alloy |
| Hippa | 6 | 7 | 6 | 7 | 6201 Alloy |
| Artemia | 4 | 1 | 6 | 7 | 6201 Alloy |
| Prawn | 4 | 1 | 4 | 7 | 6201 Alloy |
| Crab | 4 | 7 | 6 | 7 | 6201 Alloy |
| Barnacle | 4 | 7 | 4 | 7 | 6201 Alloy |
| Solaster | 2 | 7 | 4 | 7 | 6201 Alloy |
| Shrimp | 2 | 7 | 2 | 7 | 6201 Alloy |
| Sandcrab | 1/0 | 7 | 2 | 7 | 6201 Alloy |
| Gammarus | 1/0 | 7 | 1/0 | 7 | 6201 Alloy |
| Echinus | 1/0 | 19 | 2 | 7 | 6201 Alloy |
| Leda | 1/0 | 19 | 1/0 | 7 | 6201 Alloy |
| Dungenese | 2/0 | 7 | 2/0 | 7 | 6201 Alloy |
| Cyclops | 2/0 | 19 | 2/0 | 7 | 6201 Alloy |
| Fulgar | 3/0 | 19 | 1/0 | 7 | 6201 Alloy |
| Flustra | 3/0 | 19 | 3/0 | 7 | 6201 Alloy |
| Arca | 4/0 | 19 | 2/0 | 7 | 6201 Alloy |
| Lepas | 4/0 | 19 | 4/0 | 7 | 6201 Alloy |
Quadruplex Service Drop Cable
Application
This quadruplexed cable is suited for use as drop cable from a pole mounted transformer to the service entrance of a structure, or as secondary distribution between poles. The cable should be limited to 600V phase to phase and not exceed 90˚C.
Construction
Three insulated phase conductors twisted around a bare aluminum alloy or ACSR neutral conductor.
Conductors: Aluminum alloy 1350-H19 wire.
Insulation: Black thermoset cross-linked polyethylene (XLPE).
Neutral: Bare aluminum alloy or ACSR
Additional Standards
ASTM B-230: Aluminum 1350-H19 wire for electrical purposes.
ASTM B-231: Concentric lay stranded aluminum 1350 conductors.
ICEA S-76-474: Neutral supported power cable assemblies with weather resistant extruded insulation rated at 600V.
Dimensions
| PRODUCT | PHASE CONDUCTOR SIZE | PHASE CONDUCTOR STRANDING | BARE NEUTRAL MESSENGER SIZE | BARE NEUTRAL MESSENGER STRANDING | NEUTRAL TYPE |
| Clydesdale | 4 | 1 | 4 | 7 | AAC |
| Pinto | 4 | 7 | 4 | 7 | AAC |
| Mustang | 2 | 7 | 2 | 7 | AAC |
| Criollo | 1/0 | 19 | 1/0 | 7 | AAC |
| Percheron | 2/0 | 19 | 2/0 | 7 | AAC |
| Hanovarian | 3/0 | 19 | 3/0 | 19 | AAC |
| Oldenburg | 4/0 | 19 | 4/0 | 19 | AAC |
| Bay | 6 | 1 | 6 | 7 | ACSR |
| French Coach | 6 | 7 | 6 | 7 | ACSR |
| German Coach | 4 | 1 | 4 | 7 | ACSR |
| Arabian | 4 | 7 | 4 | 7 | ACSR |
| Belgian | 2 | 7 | 2 | 7 | ACSR |
| Shetland | 1/0 | 19 | 1/0 | 7 | ACSR |
| Thoroughbred | 2/0 | 19 | 2/0 | 7 | ACSR |
| Trotter | 3/0 | 19 | 3/0 | 7 | ACSR |
| Walking | 4/0 | 19 | 4/0 | 7 | ACSR |
| Morochuca | 6 | 1 | 6 | 6/1 | 6201 Alloy |
| Chola | 6 | 7 | 6 | 6/1 | 6201 Alloy |
| Morgan | 4 | 1 | 4 | 6/1 | 6201 Alloy |
| Hackney | 4 | 7 | 4 | 6/1 | 6201 Alloy |
| Palomino | 2 | 7 | 2 | 6/1 | 6201 Alloy |
| Costena | 1/0 | 19 | 1/0 | 6/1 | 6201 Alloy |
| Grullo | 2/0 | 19 | 2/0 | 6/1 | 6201 Alloy |
| Suffolk | 3/0 | 19 | 3/0 | 6/1 | 6201 Alloy |
| Appaloosa | 4/0 | 19 | 4/0 | 6/1 | 6201 Alloy |
| Bronco | 336.4 | 19 | 336.4 | 6/1 | 6201 Alloy |
| Gelding | 336.4 | 19 | 4/0 | 6/1 | 6201 Alloy |
