Type 241 Mining Feeder Cable 1.1 To 22kv Application
These Type 241 Cables Are Designed For Various Uses, Including Main Feeder Cable For Continuous Miners,Pump Cable, And Power Supply Cable. The Overall Semiconductive Screen Provides Protective Earth Contactfor Any Obiect Breaching The Sheath Prior To Contact With Power Conductors. This Type 241 Cable Is A General Use Cable Used As A Flexible Feeder For Longwall Systems And Other applications Requiring Mechanical Strength And Crushing Resistance. This Cable Could Also Be Suitable Foruse In Underground Coal Mining Applications.
Type 241 Mining Feeder Cable 1.1 To 22kvstandard
AS/NZS 1125,
AS/NZS 3808,
AS/NZS 1802.
AS/NZS 5000.1
Type 241 Mining Feeder Cable 1.1 To 22kv Construction
These Type 241 Cables Are Designed For Various Uses, Including Main Feeder Cable For Continuous Miners,Pump Cable, And Power Supply Cable. The Overall Semiconductive Screen Provides Protective Earth Contactfor Any Obiect Breaching The Sheath Prior To Contact With Power Conductors. This Type 241 Cable Is A General Use Cable Used As A Flexible Feeder For Longwall Systems And Other applications Requiring Mechanical Strength And Crushing Resistance. This Cable Could Also Be Suitable Foruse In Underground Coal Mining Applications.
Type 241 Mining Feeder Cable 1.1 To 22kvstandard
AS/NZS 1125,
AS/NZS 3808,
AS/NZS 1802.
AS/NZS 5000.1

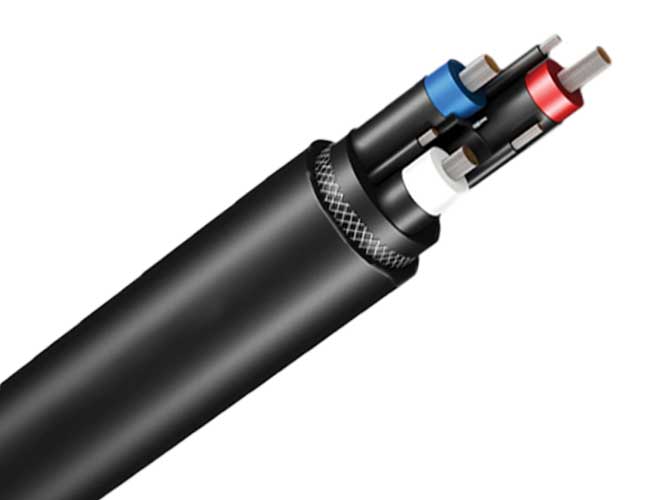

Type 241 Mining Feeder Cable 1.1 To 22kv Construction

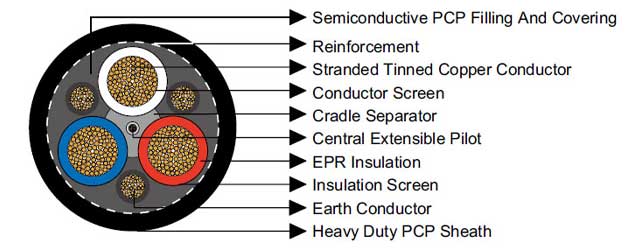

| 3×Conductors | Flexible stranded tinned annealed copper conductor. |
| Conductor Screen | Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above). |
| Insulation | EPR. |
| Insulation Screen | Semiconductive elastomer. |
| Cradle Separator | Semiconductive PCP. |
| Overall Core Screen | Semiconductive PCP filling and covering. |
| 3×Interstitial Earth Conductor | Semiconductive PCP covered flexible stranded tinned copper conductor. |
| 1×Central Extensible Pilot | EPR covered flexible stranded tinned copper conductor. |
| Textile Reinforcement | Open-weave braid reinforcement. |
| Sheath | Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request. |
Dimensions and Weight :
| Nominal Conductor Area |
Strand Size | Insulation Thickness |
Core Screen | Pilot Conductor | Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
||
| Strand Size | Area of Screen |
Strand Size | Thickness of Covering |
||||||
| mm² | No/mm | mm | No/mm | mm² | No/mm | mm | mm | mm | kg/100m |
| Type 241.1 | |||||||||
| 6 | 84/0.30 | 1.5 | 18/0.30 | 1.0 | 24/0.20 | 0.8 | 3.8 | 28.5 | 106 |
| 10 | 77/0.40 | 1.5 | 27/0.30 | 1.0 | 24/0.20 | 0.8 | 3.8 | 31.1 | 127 |
| 16 | 126/0.40 | 1.6 | 42/0.30 | 1.0 | 24/0.20 | 0.8 | 3.9 | 34.1 | 164 |
| 25 | 209/0.40 | 1.6 | 66/0.30 | 1.0 | 24/0.20 | 0.8 | 4.2 | 37.9 | 208 |
| 35 | 285/0.40 | 1.6 | 90/0.30 | 1.0 | 24/0.20 | 0.8 | 4.4 | 41.2 | 254 |
| 50 | 380/0.40 | 1.7 | 120/0.30 | 1.0 | 40/0.20 | 0.8 | 4.9 | 45.9 | 328 |
| 70 | 203/0.67 | 1.8 | 39/0.67 | 1.0 | 40/0.20 | 0.8 | 5.3 | 52.2 | 480 |
| 95 | 259/0.67 | 2.0 | 39/0.67 | 1.0 | 40/0.20 | 0.8 | 5.8 | 56.7 | 600 |
| 120 | 336/0.67 | 2.1 | 42/0.67 | 1.2 | 40/0.20 | 0.8 | 6.3 | 62.7 | 710 |
| 150 | 427/0.67 | 2.3 | 54/0.67 | 1.2 | 40/0.20 | 0.8 | 6.7 | 68.3 | 865 |
| 185 | 518/0.67 | 2.5 | 63/0.67 | 1.4 | 40/0.20 | 0.8 | 7.3 | 74.9 | 1030 |
| 240 | 672/0.67 | 2.8 | 77/0.67 | 1.4 | 40/0.20 | 0.8 | 8.0 | 83.3 | 1300 |
| 300 | 854/0.67 | 3.0 | 98/0.67 | 1.4 | 40/0.20 | 0.8 | 8.7 | 91.2 | 1600 |
| Type 241.3 | |||||||||
| 16 | 126/0.40 | 3.0 | 42/0.30 | 1.0 | 24/0.20 | 0.8 | 5.0 | 43.8 | 249 |
| 25 | 209/0.40 | 3.0 | 66/0.30 | 1.0 | 24/0.20 | 0.8 | 5.3 | 47.7 | 315 |
| 35 | 285/0.40 | 3.0 | 90/0.30 | 1.0 | 24/0.20 | 0.8 | 5.6 | 51.1 | 376 |
| 50 | 380/0.40 | 3.0 | 120/0.30 | 1.2 | 40/0.20 | 0.8 | 6.0 | 55.2 | 450 |
| 70 | 203/0.67 | 3.0 | 39/0.67 | 1.2 | 40/0.20 | 0.8 | 6.4 | 60.3 | 576 |
| 95 | 259/0.67 | 3.0 | 48/0.67 | 1.2 | 40/0.20 | 0.8 | 6.8 | 63.8 | 675 |
| 120 | 336/0.67 | 3.0 | 60/0.67 | 1.2 | 40/0.20 | 0.8 | 7.2 | 69.1 | 810 |
| 150 | 427/0.67 | 3.0 | 77/0.67 | 1.2 | 40/0.20 | 0.8 | 7.6 | 73.8 | 952 |
| 185 | 518/0.67 | 3.0 | 91/0.67 | 1.4 | 40/0.20 | 0.8 | 8.0 | 79.2 | 1130 |
| 240 | 672/0.67 | 3.0 | 112/0.67 | 1.4 | 40/0.20 | 0.8 | 8.6 | 86.0 | 1380 |
| 300 | 854/0.67 | 3.0 | 144/0.67 | 1.4 | 40/0.20 | 0.8 | 9.1 | 92.6 | 1660 |
| Type 241.6 | |||||||||
| 16 | 126/0.40 | 5.0 | 42/0.30 | 1.4 | 24/0.20 | 0.8 | 6.1 | 54.9 | 365 |
| 25 | 209/0.40 | 5.0 | 66/0.30 | 1.4 | 24/0.20 | 0.8 | 6.4 | 58.8 | 440 |
| 35 | 285/0.40 | 5.0 | 90/0.30 | 1.4 | 24/0.20 | 0.8 | 6.7 | 62.2 | 509 |
| 50 | 380/0.40 | 5.0 | 120/0.30 | 1.4 | 40/0.20 | 0.8 | 7.1 | 66.2 | 592 |
| 70 | 203/0.67 | 5.0 | 39/0.67 | 1.4 | 40/0.20 | 0.8 | 7.4 | 71.2 | 727 |
| 95 | 259/0.67 | 5.0 | 48/0.67 | 1.4 | 40/0.20 | 0.8 | 7.9 | 74.8 | 835 |
| 120 | 336/0.67 | 5.0 | 60/0.67 | 1.4 | 40/0.20 | 0.8 | 8.3 | 80.2 | 990 |
| 150 | 427/0.67 | 5.0 | 77/0.67 | 1.4 | 40/0.20 | 0.8 | 8.6 | 84.6 | 1140 |
| 185 | 518/0.67 | 5.0 | 91/0.67 | 1.4 | 40/0.20 | 0.8 | 9.0 | 90.0 | 1311 |
| 240 | 672/0.67 | 5.0 | 119/0.67 | 1.4 | 40/0.20 | 0.8 | 9.6 | 96.8 | 1576 |
| 300 | 854/0.67 | 5.0 | 156/0.67 | 1.4 | 40/0.20 | 0.8 | 10.2 | 103.6 | 1900 |
| Type 241.11 | |||||||||
| 25 | 209/0.40 | 7.6 | 66/0.30 | 1.8 | 24/0.20 | 0.8 | 7.8 | 73.2 | 645 |
| 35 | 285/0.40 | 7.6 | 90/0.30 | 1.8 | 24/0.20 | 0.8 | 8.1 | 76.6 | 724 |
| 50 | 380/0.40 | 7.6 | 120/0.30 | 1.8 | 40/0.20 | 0.8 | 8.5 | 80.6 | 825 |
| 70 | 203/0.67 | 7.6 | 39/0.67 | 1.8 | 40/0.20 | 0.8 | 8.9 | 85.7 | 975 |
| 95 | 259/0.67 | 7.6 | 48/0.67 | 1.8 | 40/0.20 | 0.8 | 9.3 | 89.1 | 1088 |
| 120 | 336/0.67 | 7.6 | 60/0.67 | 1.8 | 40/0.20 | 0.8 | 9.7 | 94.4 | 1258 |
| 150 | 427/0.67 | 7.6 | 77/0.67 | 1.8 | 40/0.20 | 0.8 | 10.0 | 98.9 | 1423 |
| 185 | 518/0.67 | 7.6 | 91/0.67 | 1.8 | 40/0.20 | 0.8 | 10.4 | 104.2 | 1610 |
