Type 409 Mining Feeder Cable 1.1 To 22kv Application
Type 409 Series Cable Is Mainly Used As A Flexible Feeder To Machinery, More Suitable As A Trailing Cablerather Than For Reeling. Smaller Cables Are Used For Drills And Hand-Held Tools And Equipment, While Largerones Are Used For Power Supply To Draglines, Shovels, And Drills.
This Cable Includes A Central Semiconductive Cradle For Support And Protection Of Power Cores, And Itcontains A Central Pilot. Not Suitable For Use In Underground Coal Mining Applications
Type 409 Mining Feeder Cable 1.1 To 22kv Standard
AS/NZS 2802:2000
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1
Type 409 Mining Feeder Cable 1.1 To 22kv construction
Type 409 Series Cable Is Mainly Used As A Flexible Feeder To Machinery, More Suitable As A Trailing Cablerather Than For Reeling. Smaller Cables Are Used For Drills And Hand-Held Tools And Equipment, While Largerones Are Used For Power Supply To Draglines, Shovels, And Drills.
This Cable Includes A Central Semiconductive Cradle For Support And Protection Of Power Cores, And Itcontains A Central Pilot. Not Suitable For Use In Underground Coal Mining Applications
Type 409 Mining Feeder Cable 1.1 To 22kv Standard
AS/NZS 2802:2000
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

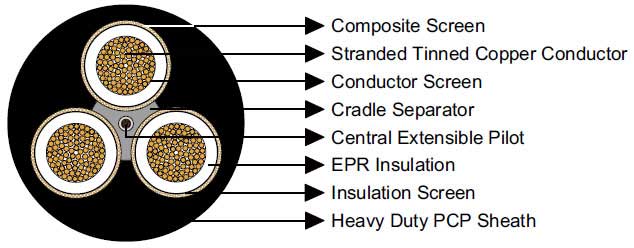

Type 409 Mining Feeder Cable 1.1 To 22kv construction
| 3×Conductors | Flexible stranded tinned annealed copper conductor. |
| Conductor Screen | Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above). |
| Insulation | EPR. |
| Insulation Screen | Semiconductive elastomer. |
| Composite Screen (earth conductor) | Tinned annealed copper braiding interwove with polyester yarn. |
| Cradle Separator | Semiconductive PCP. |
| 1×Central Extensible Pilot | EPR covered flexible stranded tinned copper conductor. |
| Sheath | Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request. |
Dimensions and Weight :
| Nominal Conductor Area |
Strand Size | Insulation Thickness |
Core Screen | Pilot Conductor | Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
||
| Strand Size | Area of Screen |
Strand Size | Thickness of Covering |
||||||
| mm² | No/mm | mm | No/mm | mm² | No/mm | mm | mm | mm | kg/100m |
| Type 409.1 Class2 | |||||||||
| 6 | 84/0.30 | 1.5 | 7/0.25 | 7.2 | 24/0.20 | 0.8 | 3.8 | 30.0 | 129 |
| 10 | 77/0.40 | 1.5 | 7/0.25 | 8.6 | 24/0.20 | 0.8 | 3.8 | 32.6 | 157 |
| 16 | 126/0.40 | 1.6 | 7/0.25 | 9.6 | 24/0.20 | 0.8 | 4.0 | 35.8 | 197 |
| 25 | 209/0.40 | 1.6 | 7/0.25 | 11.3 | 24/0.20 | 0.8 | 4.3 | 39.7 | 255 |
| 35 | 285/0.40 | 1.6 | 7/0.25 | 12.4 | 24/0.20 | 0.8 | 4.6 | 43.1 | 312 |
| 50 | 380/0.40 | 1.7 | 7/0.25 | 14.1 | 40/0.20 | 0.8 | 5.0 | 47.7 | 386 |
| 70 | 203/0.67 | 1.8 | 7/0.25 | 16.5 | 40/0.20 | 0.8 | 5.4 | 53.9 | 503 |
| 95 | 259/0.67 | 2.0 | 7/0.30 | 21.8 | 40/0.20 | 0.8 | 6.0 | 59.3 | 622 |
| 120 | 336/0.67 | 2.1 | 7/0.30 | 24.7 | 40/0.20 | 0.8 | 6.4 | 65.1 | 760 |
| 150 | 427/0.67 | 2.3 | 7/0.40 | 36.1 | 40/0.20 | 0.8 | 6.9 | 72.1 | 960 |
| 185 | 518/0.67 | 2.5 | 7/0.40 | 40.5 | 40/0.20 | 0.8 | 7.4 | 78.6 | 1160 |
| 240 | 672/0.67 | 2.8 | 7/0.50 | 57.7 | 40/0.20 | 0.8 | 8.2 | 88.6 | 1490 |
| 300 | 854/0.67 | 3.0 | 7/0.50 | 63.2 | 40/0.20 | 0.8 | 8.8 | 96.3 | 1800 |
| Type 409.3 Class2 | |||||||||
| 16 | 126/0.40 | 3.0 | 7/0.25 | 13.1 | 24/0.20 | 0.8 | 5.3 | 46.2 | 301 |
| 25 | 209/0.40 | 3.0 | 7/0.25 | 14.8 | 24/0.20 | 0.8 | 5.6 | 50.1 | 371 |
| 35 | 285/0.40 | 3.0 | 7/0.25 | 15.8 | 24/0.20 | 0.8 | 5.9 | 53.5 | 430 |
| 50 | 380/0.40 | 3.0 | 7/0.25 | 17.2 | 40/0.20 | 0.8 | 6.3 | 57.6 | 511 |
| 70 | 203/0.67 | 3.0 | 7/0.25 | 18.6 | 40/0.20 | 0.8 | 6.6 | 62.5 | 624 |
| 95 | 259/0.67 | 3.0 | 7/0.25 | 20.3 | 40/0.20 | 0.8 | 7.1 | 66.2 | 724 |
| 120 | 336/0.67 | 3.0 | 7/0.30 | 27.2 | 40/0.20 | 0.8 | 7.4 | 72.0 | 880 |
| 150 | 427/0.67 | 3.0 | 7/0.40 | 39.6 | 40/0.20 | 0.8 | 7.8 | 78.0 | 1079 |
| 185 | 518/0.67 | 3.0 | 7/0.40 | 42.2 | 40/0.20 | 0.8 | 8.2 | 83.4 | 1251 |
| 240 | 672/0.67 | 3.0 | 7/0.40 | 46.6 | 40/0.20 | 0.8 | 8.8 | 90.3 | 1502 |
| 300 | 854/0.67 | 3.0 | 7/0.50 | 63.2 | 40/0.20 | 0.8 | 9.4 | 98.4 | 1840 |
| Type 409.6 Class2 | |||||||||
| 16 | 126/0.40 | 5.0 | 7/0.25 | 17.2 | 24/0.20 | 0.8 | 6.4 | 57.3 | 440 |
| 25 | 209/0.40 | 5.0 | 7/0.25 | 18.6 | 24/0.20 | 0.8 | 6.7 | 61.2 | 516 |
| 35 | 285/0.40 | 5.0 | 7/0.25 | 18.6 | 24/0.20 | 0.8 | 7.0 | 64.6 | 584 |
| 50 | 380/0.40 | 5.0 | 7/0.25 | 21.3 | 40/0.20 | 0.8 | 7.3 | 68.5 | 669 |
| 70 | 203/0.67 | 5.0 | 7/0.25 | 23.4 | 40/0.20 | 0.8 | 7.7 | 73.7 | 804 |
| 95 | 259/0.67 | 5.0 | 7/0.30 | 29.2 | 40/0.20 | 0.8 | 8.1 | 77.8 | 934 |
| 120 | 336/0.67 | 5.0 | 7/0.30 | 31.7 | 40/0.20 | 0.8 | 8.5 | 83.1 | 1090 |
| 150 | 427/0.67 | 5.0 | 7/0.40 | 45.7 | 40/0.20 | 0.8 | 8.9 | 89.1 | 1310 |
| 185 | 518/0.67 | 5.0 | 7/0.40 | 48.4 | 40/0.20 | 0.8 | 9.3 | 94.5 | 1479 |
| 240 | 672/0.67 | 5.0 | 7/0.40 | 52.8 | 40/0.20 | 0.8 | 9.9 | 101.4 | 1749 |
| 300 | 854/0.67 | 5.0 | 7/0.50 | 71.5 | 40/0.20 | 0.8 | 10.4 | 109.3 | 2120 |
| Type 409.11 Class2 | |||||||||
| 25 | 209/0.40 | 7.6 | 7/0.25 | 23.7 | 24/0.20 | 0.8 | 8.1 | 75.6 | 750 |
| 35 | 285/0.40 | 7.6 | 7/0.30 | 30.2 | 24/0.20 | 0.8 | 8.4 | 79.7 | 859 |
| 50 | 380/0.40 | 7.6 | 7/0.30 | 31.7 | 40/0.20 | 0.8 | 8.7 | 83.6 | 954 |
| 70 | 203/0.67 | 7.6 | 7/0.30 | 34.1 | 40/0.20 | 0.8 | 9.1 | 88.8 | 1105 |
| 95 | 259/0.67 | 7.6 | 7/0.40 | 47.5 | 40/0.20 | 0.8 | 9.6 | 93.7 | 1290 |
| 120 | 336/0.67 | 7.6 | 7/0.40 | 51.0 | 40/0.20 | 0.8 | 9.9 | 98.8 | 1460 |
| 150 | 427/0.67 | 7.6 | 7/0.40 | 53.7 | 40/0.20 | 0.8 | 10.3 | 103.5 | 1636 |
| 185 | 518/0.67 | 7.6 | 7/0.40 | 57.2 | 40/0.20 | 0.8 | 10.7 | 108.8 | 1830 |
| Type 409.22 Class2 | |||||||||
| 35 | 285/0.40 | 10.5 | 7/0.40 | 55.4 | 24/0.20 | 0.8 | 10.0 | 105.0 | 1405 |
| 50 | 380/0.40 | 10.5 | 7/0.40 | 58.1 | 40/0.20 | 0.8 | 10.3 | 108.9 | 1525 |
| 70 | 203/0.67 | 10.5 | 7/0.40 | 60.7 | 40/0.20 | 0.8 | 10.7 | 114.0 | 1710 |
