Type 450 Mining Reeling Cable 3.3 To 33kv

Type 450 Mining Reeling Cable 3.3 To 33kv Application
These type 450 mining cables are suitable for the supply of power to a wide range of applications, from dragline cable to slow reeling applications, where copper screened cable is required but lightweight and smaller dimensions are also desired.
This type 450 cable is a general purpose cable with metal screened power cores with three pilot cores. It is3.3/3.3 kv to 33/33 kv reeling cables for use with drag-lines, shovels, excavators, wharf cranes, and materials handling equipment. This cable is suitable for slow reeling and trailing applications. This cable is not suitable for use in underground coal mining applications
Type 450 Mining Reeling Cable 3.3 To 33kv Standard
AS/NZS 2802:2000
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

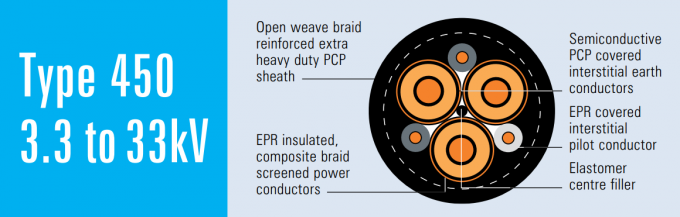

Type 450 Mining Reeling Cable 3.3 To 33kv Construction

3×Conductors	Flexible stranded tinned annealed copper conductor.
Conductor Screen	Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above).
Insulation	EPR
Insulation Screen	Semiconductive elastomer.
Composite Screen	Tinned annealed copper braiding interwove with polyester yarn, covered with semiconductive tape.
Filler	Elastomer centre filler.
2×Interstitial Earth Conductor	CSP covered flexible stranded tinned copper conductor.
1×Interstitial Pilot	EPR covered flexible stranded tinned copper conductor.
Textile Reinforcement	Open-weave braid reinforcement.
Sheath	Extra-heavy duty PCP sheath. Extra-heavy duty CPE/CSP sheath can be offered upon request.

Dimensions and Weight :

Nominal Conductor Area	Strand Size	Insulation Thickness	Core Screen		Pilot/Earth Conductor		Thickness of Sheath	Nominal Overall Diameter	Nominal Weight
			Strand Size	Thickness of Covering	Strand Size	Thickness of Covering
mm²	No/mm	mm	No/mm	mm²	No/mm	mm	mm	mm	kg/100m
Type 450.3 Class1
16	126/0.40	2.2	128/0.25	6.3	120/0.30	1.4	4.5	42.8	266
25	209/0.40	2.2	118/0.30	8.3	120/0.30	1.4	4.8	46.9	338
35	285/0.40	2.2	127/0.30	9.0	120/0.30	1.4	5.1	50.3	392
50	380/0.40	2.4	141/0.30	10.0	183/0.30	1.4	5.6	55.5	487
70	203/0.67	2.4	117/0.40	14.7	54/0.67	1.4	6.0	61.1	637
95	259/0.67	2.4	123/0.40	15.5	70/0.67	1.6	6.3	64.3	734
120	336/0.67	2.4	135/0.40	17.0	84/0.67	1.6	6.4	69.0	867
150	427/0.67	2.4	144/0.40	18.1	112/0.67	1.6	6.6	73.3	1022
185	518/0.67	2.4	144/0.40	18.1	132/0.67	1.6	6.7	78.1	1175
240	672/0.67	2.4	136/0.50	26.7	168/0.67	1.6	6.9	84.5	1440
300	854/0.67	2.4	144/0.50	28.3	228/0.67	1.6	7.0	90.4	1741
Type 450.6 Class1
16	126/0.40	3.0	118/0.30	8.3	120/0.30	1.4	5.0	47.6	317
25	209/0.40	3.0	129/0.30	9.1	120/0.30	1.6	5.2	51.2	382
35	285/0.40	3.0	139/0.30	9.8	120/0.30	1.6	5.5	54.7	443
50	380/0.40	3.0	149/0.30	10.5	177/0.30	1.6	5.9	58.8	534
70	203/0.67	3.0	123/0.40	15.5	54/0.67	1.6	6.3	64.3	682
95	259/0.67	3.0	130/0.40	16.3	70/0.67	1.8	6.4	67.1	771
120	336/0.67	3.0	141/0.40	17.7	84/0.67	1.8	6.5	71.9	912
150	427/0.67	3.0	144/0.40	18.1	112/0.67	1.8	6.6	76.0	1073
185	518/0.67	3.0	144/0.40	18.1	132/0.67	1.8	6.8	80.9	1222
240	672/0.67	3.0	141/0.50	27.7	168/0.67	1.8	7.0	87.4	1502
300	854/0.67	3.0	144/0.50	28.3	228/0.67	1.8	7.1	93.2	1790
Type 450.11 Class1
25	209/0.40	5.0	120/0.40	15.1	120/0.30	2.0	6.3	62.8	542
35	285/0.40	5.0	127/0.40	16.0	120/0.30	2.0	6.4	65.8	601
50	380/0.40	5.0	135/0.40	17.0	183/0.30	2.0	6.5	69.3	692
70	203/0.67	5.0	144/0.40	18.1	54/0.67	2.0	6.6	73.8	826
95	259/0.67	5.0	144/0.40	18.1	70/0.67	2.2	6.7	76.6	926
120	336/0.67	5.0	144/0.40	18.1	84/0.67	2.2	6.9	81.6	1082
150	427/0.67	5.0	139/0.50	27.3	112/0.67	2.2	7.0	86.1	1263
185	518/0.67	5.0	144/0.50	28.3	132/0.67	2.2	7.1	90.8	1433
240	627/0.67	5.0	144/0.50	28.3	168/0.67	2.2	7.3	96.8	1690
300	854/0.67	5.0	144/0.50	28.3	228/0.67	2.2	7.4	102.7	2000
Type 450.22 Class1
35	285/0.40	7.6	144/0.40	18.1	120/0.30	2.5	6.8	78.4	805
50	380/0.40	7.6	144/0.40	18.1	183/0.30	2.5	6.9	81.8	900
70	203/0.67	7.6	140/0.50	27.5	54/0.67	2.5	7.0	86.8	1070
95	259/0.67	7.6	144/0.50	28.3	70/0.67	2.5	7.2	89.8	1180
120	336/0.67	7.6	144/0.50	28.3	84/0.67	2.5	7.3	94.5	1350
150	427/0.67	7.6	144/0.50	28.3	112/0.67	2.5	7.4	98.6	1520
185	518/0.67	7.6	144/0.50	28.3	132/0.67	2.5	7.5	103.4	1700
240	627/0.67	7.6	144/0.50	28.3	168/0.67	2.5	7.7	109.4	1980
300	854/0.67	7.6	144/0.50	28.3	228/0.67	2.5	7.9	115.4	2310
Type 450.33 Class1
50	380/0.40	10.5	144/0.50	28.3	183/0.30	2.5	7.4	96.9	1222
70	203/0.67	10.5	144/0.50	28.3	54/0.67	2.5	7.5	101.4	1385
95	259/0.67	10.5	144/0.50	28.3	70/0.67	2.5	7.7	104.4	1505
120	336/0.67	10.5	144/0.50	28.3	84/0.67	2.5	7.8	109.2	1680
185	518/0.67	10.5	144/0.50	28.3	132/0.67	2.5	8.0	118.0	2060
240	627/0.67	10.5	144/0.50	28.3	168/0.67	2.5	8.2	124.0	2360
300	854/0.67	10.5	144/0.50	28.3	228/0.67	2.5	8.4	130.1	2710
