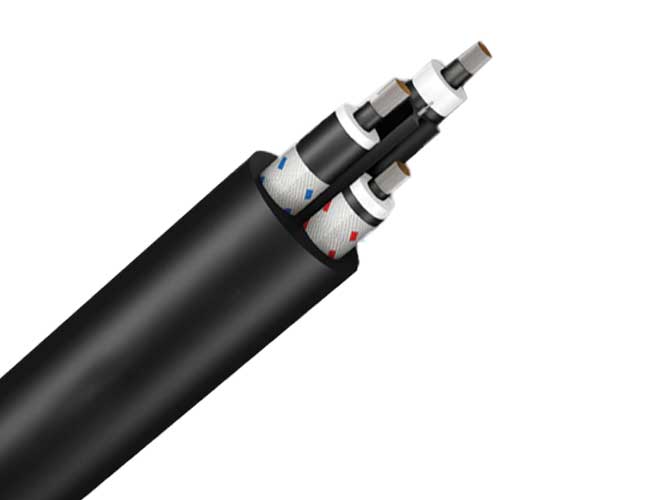

Type 209 Mining Trailing Cable 1.1 To 11kv Application
Type 209 series cable is mainly used as a flexible feeder to machinery, more suitable as a trailing cablerather than for reeling, Smaller cables are used for drills and hand-held tools and equipment. This cablecan be used as a trailing cable to be a flexible feeder to machinery. Smaller conductor sizes may also beused for power feeder cable to equipment such as drills, pumps, crusher, etc. Suitable for use inunderground coal mining applications.
Type 209 Mining Trailing Cable 1.1 To 11kv Standard
AS/NZS 1125,
AS/NZS 3808
AS/NZS 1802
AS/NZS 5000.1
Type 209 Mining Trailing Cable 1.1 To 11kv Construction
Type 209 series cable is mainly used as a flexible feeder to machinery, more suitable as a trailing cablerather than for reeling, Smaller cables are used for drills and hand-held tools and equipment. This cablecan be used as a trailing cable to be a flexible feeder to machinery. Smaller conductor sizes may also beused for power feeder cable to equipment such as drills, pumps, crusher, etc. Suitable for use inunderground coal mining applications.
Type 209 Mining Trailing Cable 1.1 To 11kv Standard
AS/NZS 1125,
AS/NZS 3808
AS/NZS 1802
AS/NZS 5000.1

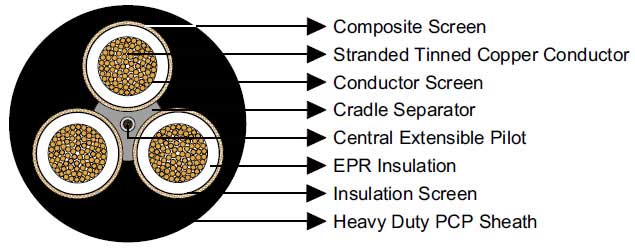

Type 209 Mining Trailing Cable 1.1 To 11kv Construction
| 3×Conductors | Flexible stranded tinned annealed copper conductor. |
| Conductor Screen | Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above). |
| Insulation | EPR. |
| Insulation Screen | Semiconductive elastomer. |
| Composite Screen (earth conductor) | Tinned annealed copper braiding interwove with polyester yarn. |
| Cradle Separator | Semiconductive PCP. |
| 1×Central Extensible Pilot | EPR covered flexible stranded tinned copper conductor. |
| Sheath | Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request. |
Dimensions and Weight
| Nominal Conductor Area |
Strand Size | Insulation Thickness |
Core Screen | Pilot Conductor | Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
||
| Strand Size | Area of Screen |
Strand Size | Thickness of Covering |
||||||
| mm² | No/mm | mm | No/mm | mm² | No/mm | mm | mm | mm | kg/100m |
| 6 | 84/0.30 | 1.5 | 7/0.25 | 7.2 | 24/0.20 | 0.8 | 3.8 | 30.0 | 129 |
| 10 | 77/0.40 | 1.5 | 7/0.25 | 8.6 | 24/0.20 | 0.8 | 3.8 | 32.6 | 157 |
| 16 | 126/0.40 | 1.6 | 7/0.25 | 9.6 | 24/0.20 | 0.8 | 4.0 | 35.8 | 197 |
| 25 | 209/0.40 | 1.6 | 7/0.25 | 11.3 | 24/0.20 | 0.8 | 4.3 | 39.7 | 255 |
| 35 | 285/0.40 | 1.6 | 7/0.25 | 12.4 | 24/0.20 | 0.8 | 4.6 | 43.1 | 312 |
| 50 | 380/0.40 | 1.7 | 7/0.25 | 14.1 | 40/0.20 | 0.8 | 5.0 | 47.7 | 386 |
| 70 | 203/0.67 | 1.8 | 7/0.25 | 16.5 | 40/0.20 | 0.8 | 5.4 | 52.8 | 503 |
| 95 | 259/0.67 | 2.0 | 7/0.25 | 18.2 | 40/0.20 | 0.8 | 6.0 | 58.6 | 605 |
| 120 | 336/0.67 | 2.1 | 7/0.25 | 20.3 | 40/0.20 | 0.8 | 6.4 | 64.4 | 741 |
| 150 | 427/0.67 | 2.3 | 7/0.25 | 22.3 | 40/0.20 | 0.8 | 6.9 | 70.2 | 896 |
| 185 | 518/0.67 | 2.5 | 7/0.30 | 30.2 | 40/0.20 | 0.8 | 7.4 | 77.4 | 1092 |
| 240 | 672/0.67 | 2.8 | 7/0.30 | 33.6 | 40/0.20 | 0.8 | 8.2 | 86.0 | 1365 |
| 300 | 854/0.67 | 3.0 | 7/0.40 | 50.1 | 40/0.20 | 0.8 | 8.8 | 95.1 | 1715 |
| Type 209.3 | |||||||||
| 16 | 126/0.40 | 3.0 | 7/0.25 | 13.1 | 24/0.20 | 0.8 | 5.3 | 46.2 | 301 |
| 25 | 209/0.40 | 3.0 | 7/0.25 | 14.8 | 24/0.20 | 0.8 | 5.6 | 50.1 | 369 |
| 35 | 285/0.40 | 3.0 | 7/0.25 | 15.8 | 24/0.20 | 0.8 | 5.9 | 53.5 | 431 |
| 50 | 380/0.40 | 3.0 | 7/0.25 | 17.2 | 40/0.20 | 0.8 | 6.3 | 57.6 | 507 |
| 70 | 203/0.67 | 3.0 | 7/0.25 | 18.6 | 40/0.20 | 0.8 | 6.6 | 62.5 | 624 |
| 95 | 259/0.67 | 3.0 | 7/0.25 | 20.3 | 40/0.20 | 0.8 | 7.1 | 66.2 | 719 |
| 120 | 336/0.67 | 3.0 | 7/0.30 | 27.2 | 40/0.20 | 0.8 | 7.4 | 72.0 | 876 |
| 150 | 427/0.67 | 3.0 | 7/0.40 | 39.6 | 40/0.20 | 0.8 | 7.8 | 78.0 | 1072 |
| 185 | 518/0.67 | 3.0 | 7/0.40 | 42.2 | 40/0.20 | 0.8 | 8.2 | 83.4 | 1236 |
| 240 | 672/0.67 | 3.0 | 7/0.40 | 46.6 | 40/0.20 | 0.8 | 8.8 | 90.3 | 1500 |
| 300 | 854/0.67 | 3.0 | 7/0.50 | 63.2 | 40/0.20 | 0.8 | 9.4 | 98.4 | 1840 |
| Type 209.6 | |||||||||
| 16 | 126/0.40 | 5.0 | 7/0.25 | 17.2 | 24/0.20 | 0.8 | 6.4 | 57.3 | 435 |
| 25 | 209/0.40 | 5.0 | 7/0.25 | 18.6 | 24/0.20 | 0.8 | 6.7 | 61.2 | 512 |
| 35 | 285/0.40 | 5.0 | 7/0.25 | 18.6 | 24/0.20 | 0.8 | 7.0 | 64.6 | 582 |
| 50 | 380/0.40 | 5.0 | 7/0.25 | 21.3 | 40/0.20 | 0.8 | 7.3 | 68.5 | 668 |
| 70 | 203/0.67 | 5.0 | 7/0.25 | 23.4 | 40/0.20 | 0.8 | 7.7 | 73.7 | 799 |
| 95 | 259/0.67 | 5.0 | 7/0.30 | 29.2 | 40/0.20 | 0.8 | 8.1 | 77.8 | 935 |
| 120 | 336/0.67 | 5.0 | 7/0.30 | 31.7 | 40/0.20 | 0.8 | 8.5 | 83.1 | 1090 |
| 150 | 427/0.67 | 5.0 | 7/0.40 | 45.7 | 40/0.20 | 0.8 | 8.9 | 89.1 | 1310 |
| 185 | 518/0.67 | 5.0 | 7/0.40 | 48.4 | 40/0.20 | 0.8 | 9.3 | 94.5 | 1480 |
| 240 | 672/0.67 | 5.0 | 7/0.40 | 52.8 | 40/0.20 | 0.8 | 9.9 | 101.4 | 1750 |
| 300 | 854/0.67 | 5.0 | 7/0.50 | 71.5 | 40/0.20 | 0.8 | 10.4 | 109.3 | 2120 |
| Type 209.11 | |||||||||
| 25 | 209/0.40 | 7.6 | 7/0.25 | 23.7 | 24/0.20 | 0.8 | 8.1 | 75.6 | 750 |
| 35 | 285/0.40 | 7.6 | 7/0.30 | 30.2 | 24/0.20 | 0.8 | 8.4 | 79.7 | 858 |
| 50 | 380/0.40 | 7.6 | 7/0.30 | 31.7 | 40/0.20 | 0.8 | 8.7 | 83.6 | 960 |
| 70 | 203/0.67 | 7.6 | 7/0.30 | 34.1 | 40/0.20 | 0.8 | 9.1 | 88.8 | 1093 |
| 95 | 259/0.67 | 7.6 | 7/0.40 | 47.5 | 40/0.20 | 0.8 | 9.6 | 93.7 | 1267 |
| 120 | 336/0.67 | 7.6 | 7/0.40 | 51.0 | 40/0.20 | 0.8 | 9.9 | 98.8 | 1436 |
| 150 | 427/0.67 | 7.6 | 7/0.40 | 53.7 | 40/0.20 | 0.8 | 10.3 | 103.5 | 1614 |
| 185 | 518/0.67 | 7.6 | 7/0.40 | 57.2 | 40/0.20 | 0.8 | 10.7 | 108.8 | 1830 |
