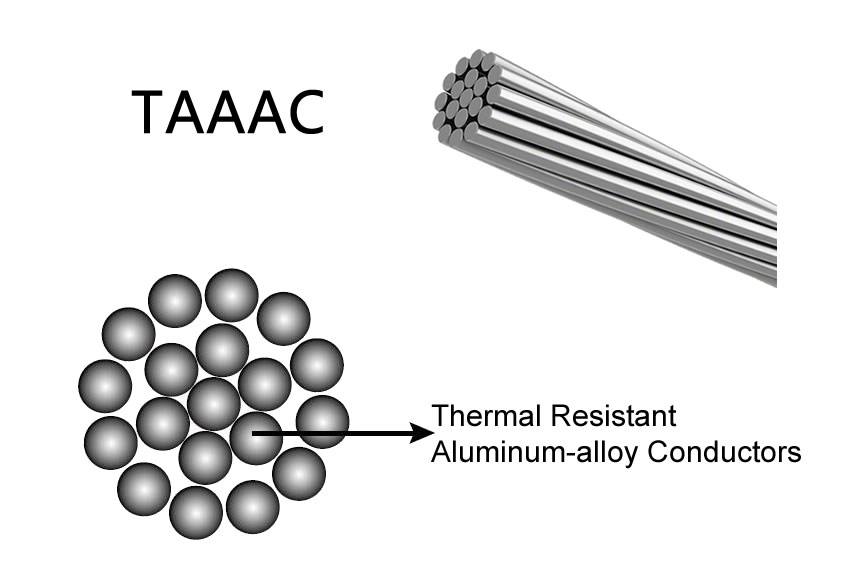

TAAAC conductor overview
TAAAC Conductor (Thermally Activated Aluminum Alloy Conductor) is an advanced aluminum alloy overhead conductor designed for high-temperature applications in power transmission lines. With its heat-resistant aluminum alloy composition, TAAAC Conductor provides low-sag performance, making it ideal for modern smart grid infrastructure. Compared to traditional conductors like ACSR and ACSS, TAAAC offers superior mechanical strength, corrosion resistance, and high conductivity for energy-efficient power transmission.
TAAAC conductor technical specifications
Material: Thermally upgraded aluminum alloy
Operating Temperature: High-temperature resistant
Mechanical Strength: High-strength aluminum conductor
Electrical Conductivity: High-conductivity aluminum conductor
Corrosion Resistance: Advanced composite aluminum conductor for extended lifespan
TAAAC Conductor parameter
TAAAC Conductor-Thermal Resistant Aluminum-alloy Conductors JEC 197
|
Cross Sectional area |
Na/Dia of wire |
Approximately |
DC conduvtor Resistance at 20℃，max |
Calcuated breaking load min |
Current Carrying capacity |
Standard Delivery lenght |
||
|
Overall diameter |
Net weight |
|||||||
|
mm² |
Pcs/mm |
mm |
Kg/km |
Ω/km |
kgf |
n |
A |
m |
|
150 |
19/3.20 |
16 |
419 |
0.1910 |
2270 |
22268 |
700 |
5000 |
|
200 |
19/3.70 |
18.5 |
560 |
0.1430 |
3030 |
29724 |
850 |
5000 |
|
240 |
19/4.00 |
20 |
655 |
0.1220 |
3490 |
34236 |
945 |
3000 |
|
300 |
37/3.20 |
22.4 |
821 |
0.0958 |
4430 |
43458 |
1090 |
3000 |
|
400 |
37/3.70 |
25.9 |
1097 |
0.0737 |
5890 |
57780 |
1325 |
2000 |
|
510 |
37/4.20 |
29.4 |
1414 |
0.0571 |
7460 |
73182 |
1565 |
2000 |
|
660 |
61/3.70 |
33.3 |
1812 |
0.0448 |
9720 |
95353 |
1840 |
1500 |
|
850 |
61/4.20 |
37.8 |
2335 |
0.0347 |
12300 |
120663 |
2175 |
1000 |
|
980 |
91/3.70 |
40.7 |
2716 |
0.0302 |
14500 |
142245 |
2380 |
1000 |
|
1030 |
91/3.80 |
41.8 |
2865 |
0.0286 |
15320 |
150289 |
2465 |
1000 |
|
1260 |
91/4.20 |
46.2 |
3501 |
0.0234 |
18350 |
180013 |
2800 |
500 |
TAAAC Conductor-Thermal Resistant Aluminum-alloy Conductors JEC 3046-95
|
Nominal Cross section area |
Structure [number x diameter of wire] |
Calculation area cross cestion |
Approx. Diameter of conductor |
Min.breaking strength |
DC Resistance of conductor at 20℃ |
Approx Mass of conductor |
Current Carrying capacity |
|
|
mm² |
n |
mm |
mm² |
mm |
kN |
Ω/km |
Kg/km |
A |
|
120 |
19 |
2.80 |
117.0 |
14.00 |
17.5 |
0.2493 |
320.1 |
566 |
|
150 |
19 |
3.15 |
148.1 |
15.75 |
22.2 |
0.1970 |
405.1 |
659 |
|
200 |
19 |
3.65 |
198.8 |
18.25 |
29.2 |
0.1467 |
543.9 |
798 |
|
240 |
19 |
4.00 |
238.8 |
20.00 |
34.2 |
0.1220 |
654.5 |
897 |
|
300 |
37 |
3.20 |
297.6 |
22.40 |
44.5 |
0.0986 |
816.0 |
1036 |
|
400 |
37 |
3.70 |
397.8 |
25.90 |
58.0 |
0.0737 |
1097.0 |
1258 |
|
510 |
37 |
4.20 |
512.6 |
29.40 |
73.3 |
0.0571 |
1413.0 |
1491 |
|
660 |
61 |
3.70 |
655.9 |
33.30 |
95.6 |
0.0448 |
1812.0 |
1753 |
|
850 |
61 |
4.20 |
845.1 |
37.80 |
120.9 |
0.0342 |
2334.0 |
2073 |
|
980 |
61 |
3.70 |
978.4 |
40.70 |
142.7 |
0.0302 |
2714.0 |
2272 |
|
1030 |
91 |
3.80 |
1032.1 |
41.80 |
150.5 |
0.0286 |
2864.0 |
2353 |
|
1260 |
91 |
4.20 |
1260.8 |
46.20 |
180.3 |
0.0234 |
3499.0 |
2672 |
|
1600 |
127 |
4.00 |
1595.9 |
52.00 |
228.5 |
0.0186 |
4440.0 |
3083 |
|
2020 |
127 |
4.50 |
2019.5 |
58.50 |
289.0 |
0.0147 |
5616.0 |
3540 |
|
2500 |
127 |
5.00 |
2493.7 |
65.00 |
357.0 |
|||
Why Choose TAAAC Conductor?
High-Temperature Performance: The thermally activated aluminum conductor can withstand extreme conditions, reducing the risk of line sagging and power losses.
Energy-Efficient Transmission: With its enhanced mechanical performance, TAAAC Conductor supports smart grid expansion and renewable energy projects.
Eco-Friendly and Cost-Effective: As an eco-friendly aluminum conductor, TAAAC offers corrosion-resistant properties that minimize maintenance costs.
High Strength and Durability: Designed for overhead transmission line aluminum conductor applications, TAAAC provides low sag and long lifespan, making it a reliable choice for modern power networks.
TAAAC Conductor applications
Overhead power transmission lines
Renewable energy projects (solar and wind power integration)
Smart grid aluminum conductor solutions
Urban and rural electrical distribution networks
Where to Buy TAAAC Conductor?
We are a leading TAAAC conductor manufacturer in China, offering custom TAAAC conductor production and wholesale supply. If you’re looking for the best aluminum conductor for high-temperature applications, we provide:
✅ Bulk orders at competitive TAAAC conductor price per meter
✅ OEM and custom solutions tailored to your project needs
✅ Fast global shipping for international customers
Contact Us for TAAAC Conductor Solutions
Looking for a high-efficiency power transmission conductor for your project? Contact us today to get the best aluminum conductor for high-temperature applications at factory-direct pricing!
