Overview
The body is made of UV resistant, glass fibre reinforced synthetic material.
-The wedge is made of UV resistant synthetic material. 4 channels ensure the clamping of 2 or 4 conductors by
distributing the loads, protecting the insulation. It is connected to the handle via its integrated link.
-The hook can be adjusted once positioned (toothed rack with 10cm stroke).
-All of the elements are captive.

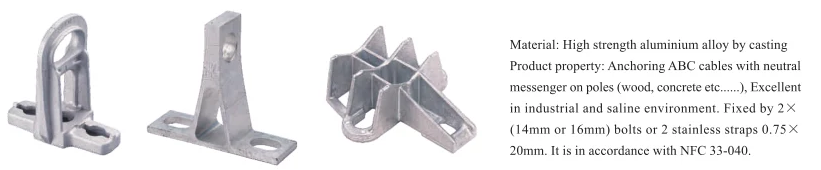

These elements are made of high strenght aluminium alloy.
The fixing clamp is designed for single anchoring whereas the bracket offers up to 6 fixing points.
Their specific design allows fixing on wooden, metal or concrete poles.
The fixing clamp is implemented using a 10mm diameter bolt or using a 20x0.7mm stainless steel strap (tensile strength: 200daN).
The ABC cable pole bracket is implemented using a 14 or 16mm diameter bolt or using two 20x0.7mm stainless steel straps (tensile strength: 200daN/anchoring point).
This anchoring assembly meets the criteria of the NF C 33-042 and EN 50-483 standards
Characteristics:
Constructed to comply with NFC standards for quality and performance.
Offers high mechanical strength and weather resistance.
Ensures reliable cable support and insulation.
The body is made of UV resistant, glass fibre reinforced synthetic material.
-The wedge is made of UV resistant synthetic material. 4 channels ensure the clamping of 2 or 4 conductors by
distributing the loads, protecting the insulation. It is connected to the handle via its integrated link.
-The hook can be adjusted once positioned (toothed rack with 10cm stroke).
-All of the elements are captive.
These elements are made of high strenght aluminium alloy.
The fixing clamp is designed for single anchoring whereas the bracket offers up to 6 fixing points.
Their specific design allows fixing on wooden, metal or concrete poles.
The fixing clamp is implemented using a 10mm diameter bolt or using a 20x0.7mm stainless steel strap (tensile strength: 200daN).
The ABC cable pole bracket is implemented using a 14 or 16mm diameter bolt or using two 20x0.7mm stainless steel straps (tensile strength: 200daN/anchoring point).
This anchoring assembly meets the criteria of the NF C 33-042 and EN 50-483 standards
Characteristics:
Constructed to comply with NFC standards for quality and performance.
Offers high mechanical strength and weather resistance.
Ensures reliable cable support and insulation.
