Overview

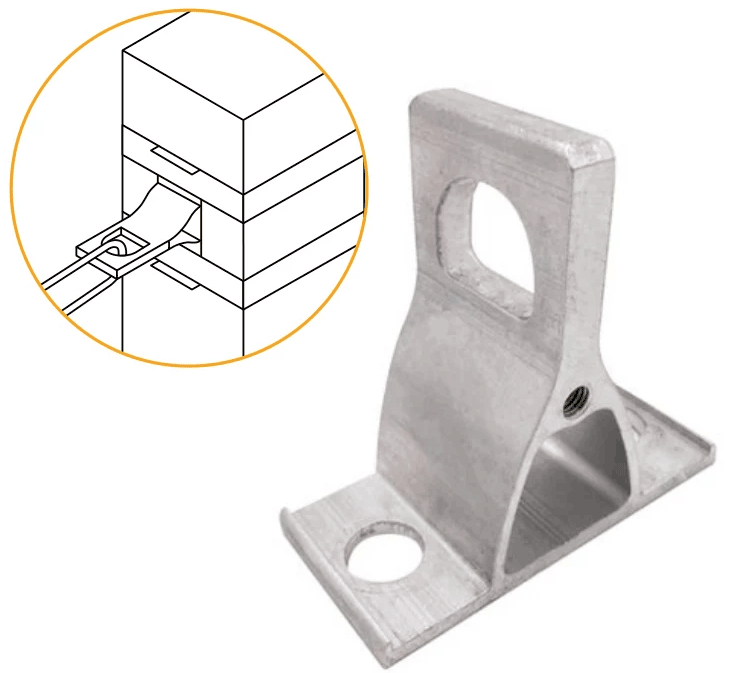

These elements are made of high strenght aluminium alloy.
The fixing clamp is designed for single anchoring whereas the bracket offers up to 6 fixing points.
Their specific design allows fixing on wooden, metal or concrete poles.
The fixing clamp is implemented using a 10mm diameter bolt or using a 20x0.7mm stainless steel strap (tensile strength: 200daN).
The ABC cable pole bracket is implemented using a 14 or 16mm diameter bolt or using two 20x0.7mm stainless steel straps (tensile strength: 200daN/anchoring point).
This anchoring assembly meets the criteria of the NF C 33-042 and EN 50-483 standards
Characteristics:
Constructed from robust materials like galvanized steel.
Offers excellent corrosion resistance and long-term reliability.
Compatible with different ABC cable sizes and configurations.
