Equipment for single tension support of MV ABC
Description:
Equipment for single tension support of MV ABC is designed for single tension support of MV ABC cables. It is composed of: universal counterplate with supporting ring, support bracket for twisted double clevis, twisted double clevis and anchoring clamp for MV ABC.
Body material: Aluminum alloy / Galvanized steel
Bolt / Nut / Washer: Galvanized steel (other per client request)
SML: 25kN
Equipment for double tension support of MV ABC
Description:
Designed for double tension support of MV ABC cables. It is composed of: universal counterplate with supporting ring, double support bracket for twisted double clevis, two twisted double clevises and two anchoring clamps for MV ABC.
Body material: Aluminum alloy / Galvanized steel
Bolt / Nut / Washer: Galvanized steel (other per client request)
SML: 25kN
Pole diameter (mm): 100-160mm
Dimensions

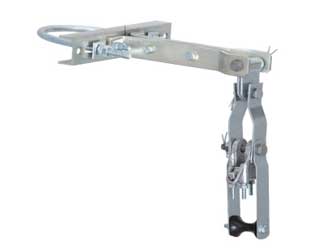

Equipment for suspension support of MV ABC
Description:
Designed for suspension support of MV ABC cables. It is composed of: universal counterplate with supporting ring, support bracket for twisted double clevis, twisted double clevis and suspension clamp for MV ABC.
Body material: Aluminum alloy / Galvanized steel
Bolt / Nut / Washer: Galvanized steel (other per client request)
SML: 25kN
Dimensions
Description:
Equipment for single tension support of MV ABC is designed for single tension support of MV ABC cables. It is composed of: universal counterplate with supporting ring, support bracket for twisted double clevis, twisted double clevis and anchoring clamp for MV ABC.
Body material: Aluminum alloy / Galvanized steel
Bolt / Nut / Washer: Galvanized steel (other per client request)
SML: 25kN
Dimensions

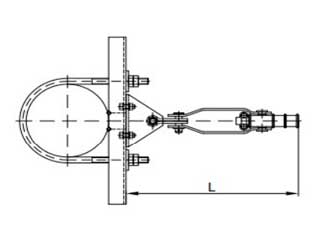

| No. | Pole diameter (mm) | L(mm) | SML (kN) of set | Weight (g) |
| 1 | 100-160 | 420 | 25 | 7 180.00 |
| 2 | 160-200 | 420 | 25 | 7 350.00 |
| 3 | 200-250 | 420 | 25 | 7 530.00 |
| 4 | 250-315 | 420 | 25 | 7 780.00 |
| 5 | 315-400 | 420 | 25 | 8 170.00 |
Equipment for double tension support of MV ABC
Description:
Designed for double tension support of MV ABC cables. It is composed of: universal counterplate with supporting ring, double support bracket for twisted double clevis, two twisted double clevises and two anchoring clamps for MV ABC.
Body material: Aluminum alloy / Galvanized steel
Bolt / Nut / Washer: Galvanized steel (other per client request)
SML: 25kN
Pole diameter (mm): 100-160mm
Dimensions

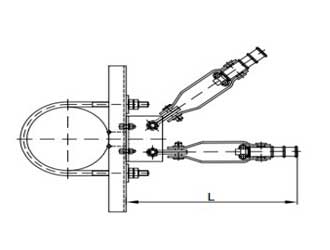

| No. | Pole diameter (mm) | L(mm) | SML (kN) of set | Weight (g) |
| 1 | 100-160 | 420 | 25 | 9780,00 |
| 2 | 160-200 | 420 | 25 | 9950,00 |
| 3 | 200-250 | 420 | 25 | 10130,00 |
| 4 | 250-315 | 420 | 25 | 10380,00 |
| 5 | 315-400 | 420 | 25 | 10770,00 |
Equipment for suspension support of MV ABC
Description:
Designed for suspension support of MV ABC cables. It is composed of: universal counterplate with supporting ring, support bracket for twisted double clevis, twisted double clevis and suspension clamp for MV ABC.
Body material: Aluminum alloy / Galvanized steel
Bolt / Nut / Washer: Galvanized steel (other per client request)
SML: 25kN
Dimensions

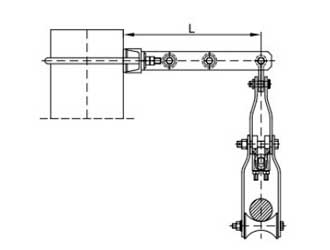

| No. | Pole diameter (mm) | L(mm) | SML (kN) of set | Weight (g) |
| 1 | 100-160 | 360 | 20 | 8990,00 |
| 2 | 160-200 | 360 | 20 | 9160,00 |
| 3 | 200-250 | 360 | 20 | 9340,00 |
| 4 | 250-315 | 360 | 20 | 9590,00 |
| 5 | 315-400 | 360 | 20 | 9980,00 |
