Multipair thermocouple cables
ApplicationThese cables are used in thermocouple circuits, petrochemical plants, utilities and industrial plants.
Specification
Conductor: Solid
Type applicable: KX, EX, JX, TX, NX, KCA, KCB, RCA, RCB, SCA, RCB, BC
Insulation: PVC, PE, XLPE or LSZH thermoplastic material
Wrapping: At least 1 layer of plastic tape
Overall screen: 24 μm aluminium / PETP tape over 7-stranded tinned copper drain wire, 0.5 mm²
Outer sheath: PVC or LSZH thermoplastic material
Color code: According to IEC 60584-3
Flame retardancy: IEC 60332-1
Flame propagation: IEC 60332 cat. C
Temperature range: -30°C up to 70°C during operation. -5°C up to 50°C during installation.

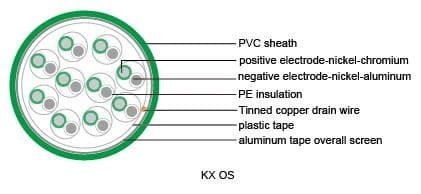

| Single pair/multipair Overall Screen |  |

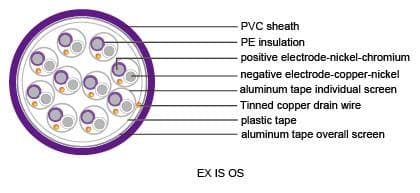

| Multipair Individual/Overall Screen |  |

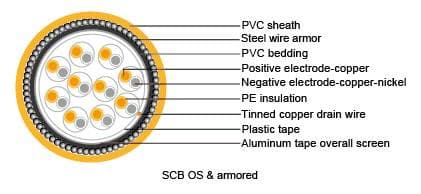

| Single pair/multipair Overall Screen with Armor |  |
| Multipair Individual/Overall Screen with Armor |  |

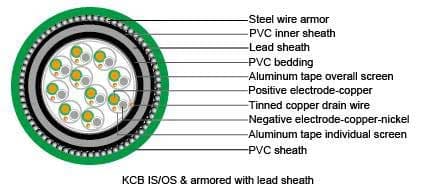

| Multipair Individual/Overall Screen with Armor and Lead Sheath |  |
