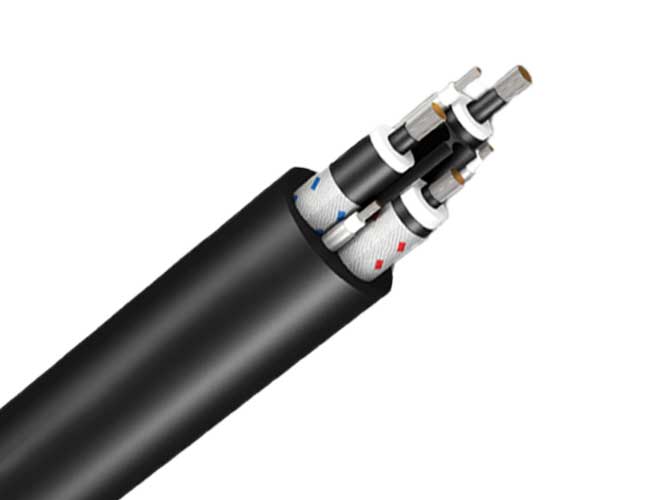

Type 240 Mining Power Cable 1.1 To 11kv Application
These Type 240 Cables Are Mainly Used As Feeder Cables For Power Supply To Machinery Or Longwall Supply. This Cable Used Extensively For Feeder Connection Between The Transformer And Gate-End Box Or Similar, Or as Continuous Miner Cable Or Feeder Cables To Pumps. Having Three Pilots, The Cable Can Be Used In Long Runs, Without Compromising Pilot Control Protection system Resistance Limitations. This Cable Could Also Be Suitable For Use In Underground Coal Mining applications.
Type 240 Mining Power Cable 1.1 To 11kv Standard
AS/NZS 1125
AS/NZS 3808
AS/NZS 1802,
AS/NZS 5000.1
Type 240 Mining Power Cable 1.1 To 11kv Construction
These Type 240 Cables Are Mainly Used As Feeder Cables For Power Supply To Machinery Or Longwall Supply. This Cable Used Extensively For Feeder Connection Between The Transformer And Gate-End Box Or Similar, Or as Continuous Miner Cable Or Feeder Cables To Pumps. Having Three Pilots, The Cable Can Be Used In Long Runs, Without Compromising Pilot Control Protection system Resistance Limitations. This Cable Could Also Be Suitable For Use In Underground Coal Mining applications.
Type 240 Mining Power Cable 1.1 To 11kv Standard
AS/NZS 1125
AS/NZS 3808
AS/NZS 1802,
AS/NZS 5000.1

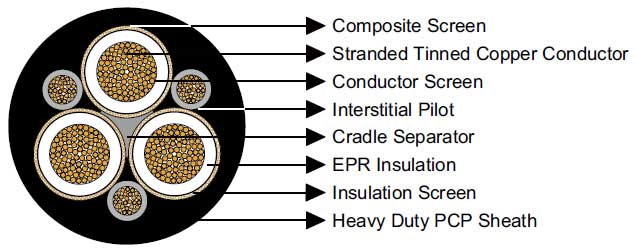

Type 240 Mining Power Cable 1.1 To 11kv Construction
| 3×Conductors | Flexible stranded tinned annealed copper conductor. |
| Conductor Screen | Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above). |
| Insulation | EPR. |
| Insulation Screen | Semiconductive elastomer. |
| Composite Screen (earth conductor) | Tinned annealed copper braiding interwove with polyester yarn. |
| 3×Interstitial Pilot | EPR covered flexible stranded tinned copper conductor. |
| Cradle Separator | Semiconductive PCP. |
| Sheath | Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request. |
Dimensions and Weight :
| Nominal Conductor Area |
Strand Size | Insulation Thickness |
Core Screen | Pilot Conductor | Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
||
| Strand Size | Area of Screen |
Strand Size | Thickness of Covering |
||||||
| mm² | No/mm | mm | No/mm | mm² | No/mm | mm | mm | mm | kg/100m |
| Type 240.1 | |||||||||
| 6 | 84/0.30 | 1.5 | 7/0.25 | 7.2 | 18/0.30 | 1.0 | 3.8 | 30.0 | 131 |
| 10 | 77/0.40 | 1.5 | 7/0.25 | 8.6 | 27/0.30 | 1.0 | 3.8 | 32.6 | 159 |
| 16 | 126/0.40 | 1.6 | 7/0.25 | 9.6 | 42/0.30 | 1.0 | 4.0 | 35.8 | 202 |
| 25 | 209/0.40 | 1.6 | 7/0.25 | 11.3 | 66/0.30 | 1.2 | 4.3 | 39.7 | 265 |
| 35 | 285/0.40 | 1.6 | 7/0.25 | 12.4 | 90/0.30 | 1.2 | 4.6 | 43.1 | 326 |
| 50 | 380/0.40 | 1.7 | 7/0.25 | 14.1 | 120/0.30 | 1.2 | 5.0 | 47.7 | 404 |
| 70 | 203/0.67 | 1.8 | 7/0.25 | 16.5 | 39/0.67 | 1.2 | 5.4 | 53.9 | 533 |
| 95 | 259/0.67 | 2.0 | 7/0.25 | 18.2 | 39/0.67 | 1.2 | 6.0 | 58.6 | 635 |
| 120 | 336/0.67 | 2.1 | 7/0.25 | 20.3 | 42/0.67 | 1.4 | 6.4 | 64.4 | 775 |
| 150 | 427/0.67 | 2.3 | 7/0.25 | 22.3 | 54/0.67 | 1.4 | 6.9 | 70.2 | 940 |
| 185 | 518/0.67 | 2.5 | 7/0.30 | 30.2 | 63/0.67 | 1.4 | 7.4 | 77.4 | 1150 |
| 240 | 672/0.67 | 2.8 | 7/0.30 | 33.6 | 77/0.67 | 1.6 | 8.2 | 86.0 | 1440 |
| 300 | 854/0.67 | 3.0 | 7/0.40 | 50.1 | 98/0.67 | 1.6 | 8.8 | 95.1 | 1810 |
| Type 240.3 | |||||||||
| 16 | 126/0.40 | 3.0 | 7/0.25 | 13.1 | 42/0.30 | 1.4 | 5.3 | 46.2 | 306 |
| 25 | 209/0.40 | 3.0 | 7/0.25 | 14.8 | 66/0.30 | 1.4 | 5.6 | 50.1 | 379 |
| 35 | 285/0.40 | 3.0 | 7/0.25 | 15.8 | 90/0.30 | 1.4 | 5.9 | 53.5 | 444 |
| 50 | 380/0.40 | 3.0 | 7/0.25 | 17.2 | 120/0.30 | 1.4 | 6.3 | 57.6 | 525 |
| 70 | 203/0.67 | 3.0 | 7/0.25 | 18.6 | 39/0.67 | 1.4 | 6.6 | 62.5 | 656 |
| 95 | 259/0.67 | 3.0 | 7/0.25 | 20.3 | 39/0.67 | 1.4 | 7.1 | 66.2 | 750 |
| 120 | 336/0.67 | 3.0 | 7/0.30 | 27.2 | 42/0.67 | 1.6 | 7.4 | 72.0 | 910 |
| 150 | 427/0.67 | 3.0 | 7/0.40 | 39.6 | 54/0.67 | 1.6 | 7.8 | 78.0 | 1115 |
| 185 | 518/0.67 | 3.0 | 7/0.40 | 42.2 | 63/0.67 | 1.8 | 8.2 | 83.4 | 1280 |
| 240 | 672/0.67 | 3.0 | 7/0.40 | 46.6 | 77/0.67 | 1.8 | 8.8 | 90.3 | 1540 |
| 300 | 854/0.67 | 3.0 | 7/0.50 | 63.2 | 98/0.67 | 1.8 | 9.4 | 98.4 | 1920 |
| Type 240.6 | |||||||||
| 16 | 126/0.40 | 5.0 | 7/0.25 | 17.2 | 42/0.30 | 1.4 | 6.4 | 57.3 | 440 |
| 25 | 209/0.40 | 5.0 | 7/0.25 | 18.6 | 66/0.30 | 1.4 | 6.7 | 61.2 | 521 |
| 35 | 285/0.40 | 5.0 | 7/0.25 | 18.6 | 90/0.30 | 1.6 | 7.0 | 64.6 | 593 |
| 50 | 380/0.40 | 5.0 | 7/0.25 | 21.3 | 120/0.30 | 1.6 | 7.3 | 68.5 | 685 |
| 70 | 203/0.67 | 5.0 | 7/0.25 | 23.4 | 39/0.67 | 1.6 | 7.7 | 73.7 | 830 |
| 95 | 259/0.67 | 5.0 | 7/0.30 | 29.2 | 39/0.67 | 1.6 | 8.1 | 77.8 | 954 |
| 120 | 336/0.67 | 5.0 | 7/0.30 | 31.7 | 42/0.67 | 1.8 | 8.5 | 83.1 | 1111 |
| 150 | 427/0.67 | 5.0 | 7/0.40 | 45.7 | 54/0.67 | 1.8 | 8.9 | 89.1 | 1335 |
| 185 | 518/0.67 | 5.0 | 7/0.40 | 48.4 | 63/0.67 | 1.8 | 9.3 | 94.5 | 1515 |
| 240 | 672/0.67 | 5.0 | 7/0.40 | 52.8 | 77/0.67 | 1.8 | 9.9 | 101.4 | 1810 |
| 300 | 854/0.67 | 5.0 | 7/0.50 | 71.5 | 98/0.67 | 1.8 | 10.4 | 109.3 | 2190 |
| Type 240.11 | |||||||||
| 25 | 209/0.40 | 7.6 | 7/0.25 | 23.7 | 66/0.30 | 2.0 | 8.1 | 75.6 | 752 |
| 35 | 285/0.40 | 7.6 | 7/0.30 | 30.2 | 90/0.30 | 2.0 | 8.4 | 79.7 | 860 |
| 50 | 380/0.40 | 7.6 | 7/0.30 | 31.7 | 120/0.30 | 2.0 | 8.7 | 83.6 | 961 |
| 70 | 203/0.67 | 7.6 | 7/0.30 | 34.1 | 39/0.67 | 2.0 | 9.1 | 88.8 | 1125 |
| 95 | 259/0.67 | 7.6 | 7/0.40 | 47.5 | 39/0.67 | 2.0 | 9.6 | 93.7 | 1300 |
| 120 | 336/0.67 | 7.6 | 7/0.40 | 51.0 | 42/0.67 | 2.2 | 9.9 | 98.8 | 1470 |
| 150 | 427/0.67 | 7.6 | 7/0.40 | 53.7 | 54/0.67 | 2.2 | 10.3 | 103.5 | 1659 |
| 185 | 518/0.67 | 7.6 | 7/0.40 | 57.2 | 63/0.67 | 2.2 | 10.7 | 108.8 | 1880 |
