YY (YSLY/HSLH) Control Cable
YY cables are versatile multi-core power and signal control cables suitable for a wide variety of industrial applications.YY control cable refers to a general unshielded control cable. They are commonly known by their constructional reference: YSLY cables. These include use as an interconnecting cable in manufacturing plants and other automated production facilities for measuring, controlling or regulating equipment including assembly and production lines, conveyors and computer units. These unshielded control cables are highly flexible for easy installation both outdoors, when protected against direct sunlight, and indoors in dry or moist conditions. The tough outer sheathing protects against the effects of light mechanical and environmental stresses.Our low smoke zero halogen (LSZH) YY cables are particularly suitable for installation where smoke emission and toxic fumes would create a potential threat to life or equipment in the event of fire.

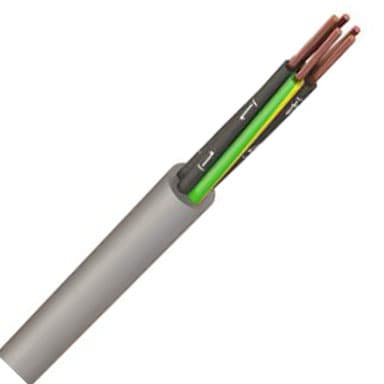

As standard, we supply insulated black cores with white numbering for 2 core cables and with a green/yellow core included for 3 cores and above. Coloured cores, with and without green/yellow are available upon request.The voltage rating of these unscreened flexible cables is 300/500V or 450/750V, with the exception of the YSLY-JZ 0.6/1kV cable.
Construction Table
| YY LSZH (HSLH) CONTROL CABLE | YY PVC (YSLY) CONTROL CABLE | YSLY 0.6/1KV BLACK CABLE | |
| VOLTAGE | 300/500V or 450/750V | 0.6/1kV | |
| CONDUCTOR | Class 5 Flexible Stranded Copper | ||
| INSULATION | LSZH (Low Smoke Zero Halogen) | PVC (Polyvinyl Chloride) | |
| OUTER SHEATH | LSZH (Low Smoke Zero Halogen) | PVC (Polyvinyl Chloride) | |
More information
Uni Cable's Multicore YY cable for wide range use applications. Available in Number coded or Colour-coded core indentification.
| HSLH-OZ | LSZH sheathed cable with black numbered cores | YSLY-OZ | PVC sheathed cable with black numbered cores |
| HSLH-JZ | LSZH sheathed cable with black numbered cores and G/Y earth | YSLY-JZ | PVC sheathed cable with black numbered cores and G/Y earth |

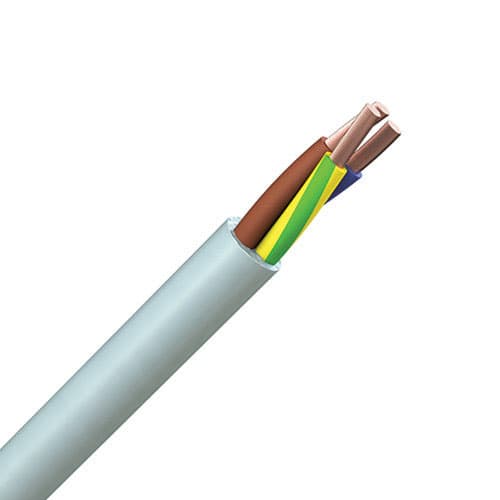

| HSLH-OB | LSZH sheathed cable with colored cores | YSLY-OB | PVC sheathed cable with colored cores |
| HSLH-JB | LSZH sheathed cable with colored cores including G/Y earth | YSLY-JB | PVC sheathed cable with colored cores including G/Y earth |
There also has a harmonised control cable for use indoors in dry, damp, or wet conditions. H05VV5-F harmonized PVC control cable, oil-resistant, flexible, and numbered for various applications, U0/U: 300/500 V
➤ A harmonized control cable for use indoors in dry, damp, or wet conditions
➤ Suitable for where free movement is required without tensile stress and positive guidance systems
➤ This version is intended as a connection cable for control equipment on machine tools, conveyor belts, handling systems, and production lines
The wider control cable range includes CY cable with tinned copper wire braiding for electromagnetic screening, and SY cable with galvanized steel wire braid for mechanical protection.
