SY (YSLYSY / HSLHSH) Control Cable
Uni-Cable's SY cables, also known as armored flexible control cable, shielded flex, or simply armored flex, are strong and durable cables suitable for internal dry, damp, or wet environments (including oil-water mixtures), and can be used outdoors when protected against direct sunlight.
Due to the mechanical strength provided by their galvanized steel wire braid (GSWB), SY cables, including the Veriflex SY PVC cable, are widely used in industrial applications as interconnecting cables in control equipment or machines where they are subjected to medium mechanical stresses. These flexible multi-core control cables with the mechanical protection of a steel wire braid have a voltage rating of 300/500V unless specified otherwise. For applications requiring power and control, there is an SY cable designed with a voltage rating of 0.6/1kV.
Construction Table
Due to the mechanical strength provided by their galvanized steel wire braid (GSWB), SY cables, including the Veriflex SY PVC cable, are widely used in industrial applications as interconnecting cables in control equipment or machines where they are subjected to medium mechanical stresses. These flexible multi-core control cables with the mechanical protection of a steel wire braid have a voltage rating of 300/500V unless specified otherwise. For applications requiring power and control, there is an SY cable designed with a voltage rating of 0.6/1kV.
| SY PVC (YSLYSY) CONTROL CABLE | SY LSZH CONTROL FLEXIBLE CABLE | |
| VOLTAGE | 300/500V | |
| CONDUCTOR | Class 5 Flexible Stranded Copper | |
| INSULATION | PVC (Polyvinyl Chloride) | LSZH (Low Smoke Zero Halogen) |
| BEDDING | PVC (Polyvinyl Chloride) | LSZH (Low Smoke Zero Halogen) |
| BRAID | GSWB (Galvanised Steel Wire Braid) | |
| OUTER SHEATH | PVC (Polyvinyl Chloride) | LSZH (Low Smoke Zero Halogen) |
More information

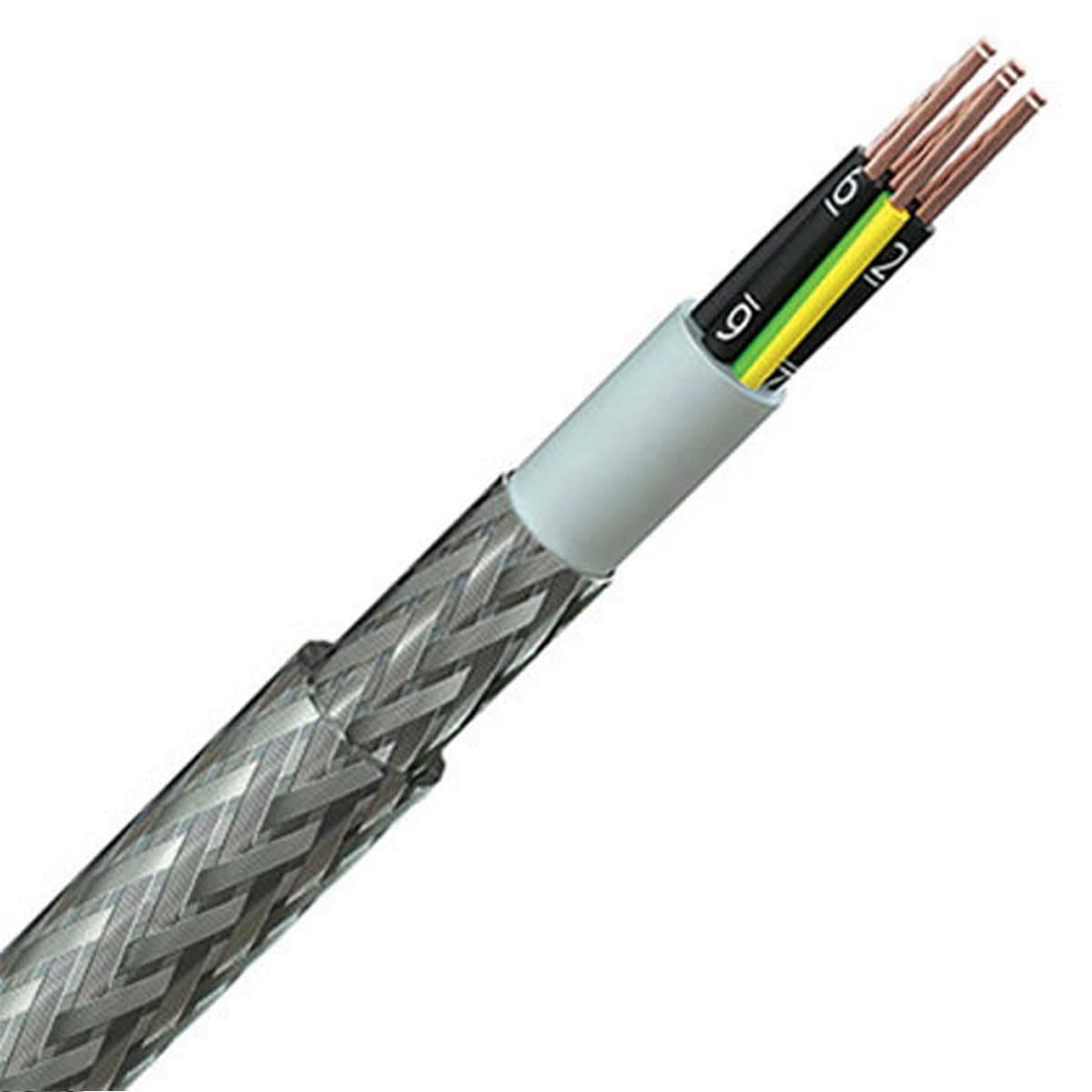

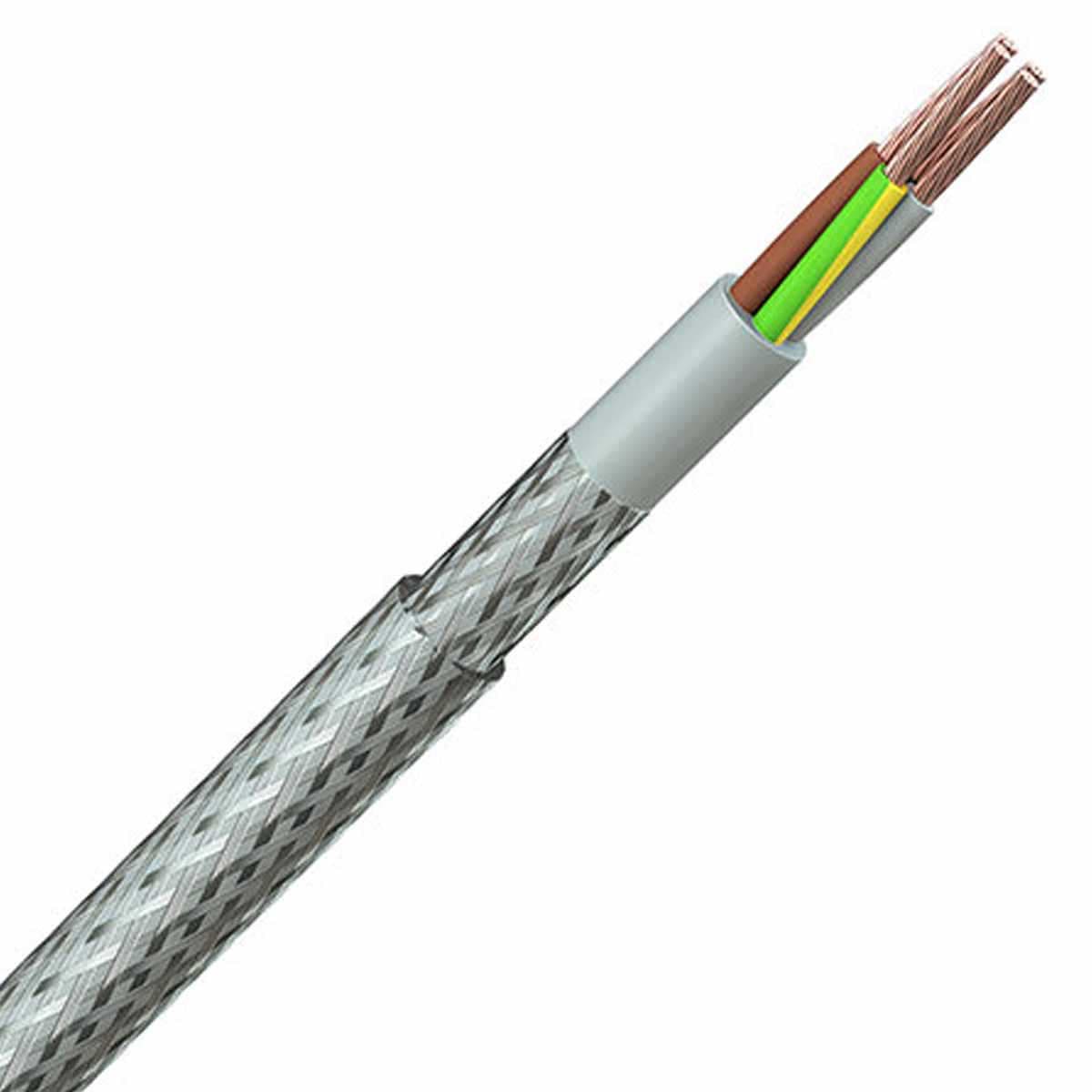

Steel braided multicore SY cable for additional mechanical protection. Available in Number-coded or color-coded core identification. 2 core SY cables are available as standard with black numbered cores, with 3 cores and above being black numbered cores with green/yellow. Colored cores with and without green/yellow are also available upon request.
SY control cables are manufactured generally to VDE0250. SY Cable with UL/CSA Approval is also available upon request. Talk to our technical experts for advice on control cable selection or see our SY cable datasheets.
