CY (YSLCY/HSLCH) Control Cable

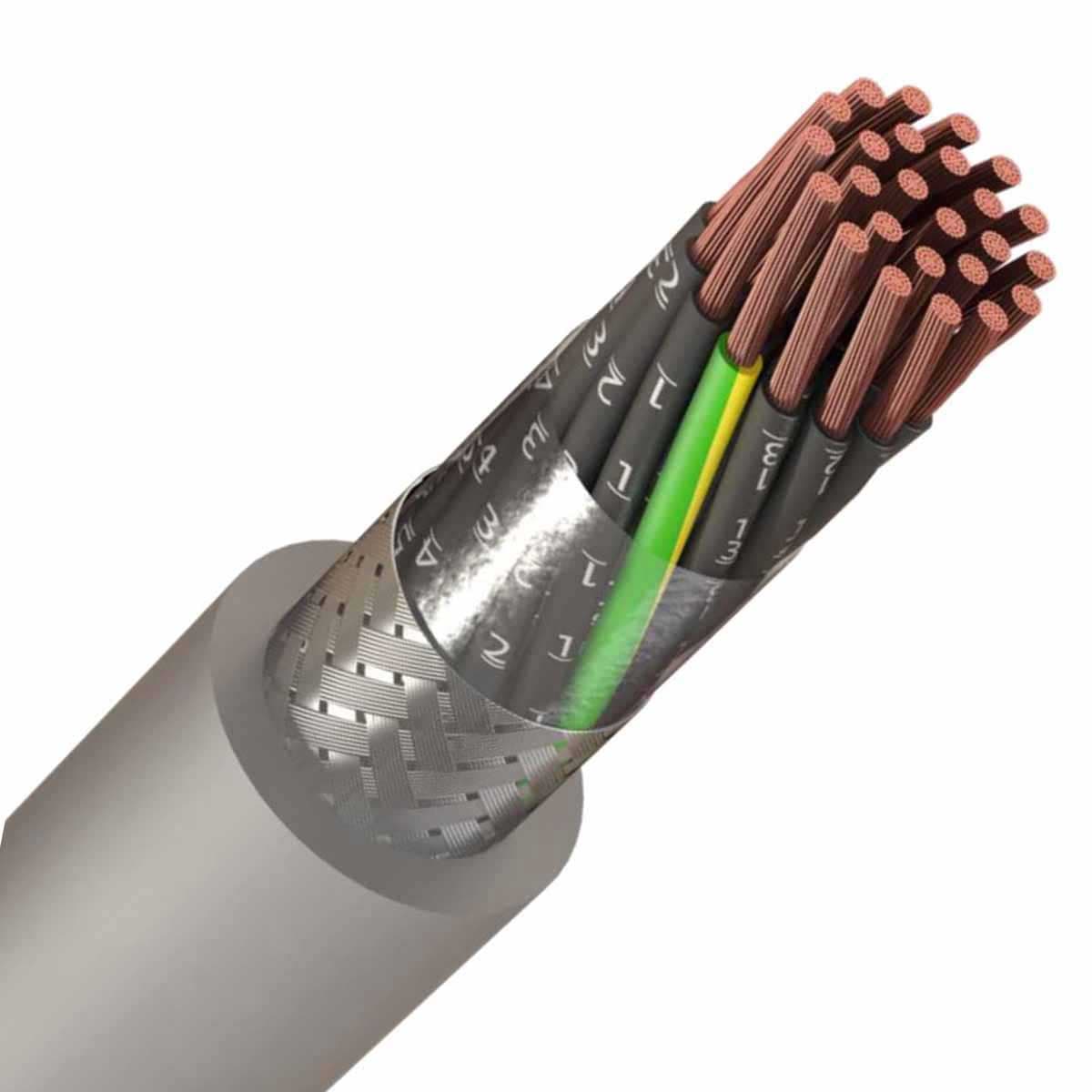

Uni Cable's Copper braided multicore CY cable for protection against electrical interference. Suitable where a high degree of circuit integrity is required and where interference can prevent accurate signal transmission in low or medium-voltage installations. CY cables, also known as screened flexible cables or by their European designation YSLCY (PVC sheathed) and HSLCH (LSZH sheathed), are used as interconnecting cables for measurement, control, or regulation in control equipment for assembly and production lines, conveyors, and computer units. These cables are suitable for flexible use when temporarily moved without tensile stress. CY cables can be used outdoors when protected against direct sunlight, and in dry or moist conditions (including oil-water mixtures) indoors. The CY cable's TCWB and PET also protect against light mechanical stress. They are typically used in applications requiring interference-free transmission due to their multi-core flex, tinned copper wire braid (TCWB), and polyethylene terephthalate (PET) separator, which protect it from external electromagnetic influences that could degrade accurate signal transmission.
CY cables are ideal for applications where EMI protection is critical to ensure accurate and reliable signal transmission. Their flexible construction and ability to withstand harsh environments make them a popular choice for a wide range of applications. These screened flexible multi-core control cables have a voltage rating of 300/500V unless specified otherwise. The YSLYCY cable is a CY construction cable with an additional inner sheath, designed with a voltage rating of 0.6/1kV for applications requiring power and control.
Construction Table

	CY PVC (YSLCY) CONTROL CABLE	SCREENED BEDDED LSZH CABLE	CY LSZH (HSLCH) CONTROL CABLE
VOLTAGE	300/500V
CONDUCTOR	Class 5 Flexible Stranded Copper
INSULATION	PVC (Polyvinyl Chloride)	LSZH (Low Smoke Zero Halogen)
SEPARATOR	PET (Polyester Tape)	-	PET (Polyester Tape)
BEDDING	-	LSZH (Low Smoke Zero Halogen)	-
INNER SHEATH	-
SCREEN	TCWB (Tinned Copper Wire Braid)
OUTER SHEATH	PVC (Polyvinyl Chloride)	LSZH (Low Smoke Zero Halogen)

More information

2 core CY cables are available as standard with black numbered cores (YSLCY-OZ cable) with 3 cores and above being black numbered cores with green/yellow (YSLCY-JZ). Colored cores with green/yellow (YSLCY-JB) and without green/yellow (YSLCY-OB) are also available upon request.

There is also a screened harmonized control cable for use indoors in dry, damp, or wet conditions. H05VVC4V5-K harmonized PVC control cable, oil-resistant, screened, flexible, and numbered for various applications, U0/U: 300/500 V.
Our wider range of flexible control cables includes the unscreened YY cable for light mechanical stress applications and the SY cable with galvanized steel wire braid providing mechanical protection for medium tensile stresses. We can also support your application with appropriate cables.
