132kv Single Core & Three Core Submarine cable Application
220kV submarine power cables are high-voltage, insulated transmission cables designed for subsea power transmission over long distances. The use of lead sheath provides excellent water ingress protection, chemical resistance, and long-term reliability, especially in harsh subsea environments.Single Core 220kV Submarine Cable with Lead Sheath Typical Applications:
High-capacity offshore wind farm export cables
Grid interconnection across seas or large rivers
Long-distance, high-load power transmission
Three Core 220kV Submarine Cable with Individual Lead Sheath Typical Applications:
Island power supply
Medium-to-long-distance submarine links where a compact design is needed
Subsea cables with long design life and high environmental resistance
220kv Single Core & Three Core Submarine cable Standards
IEC 60502-2, IEC 62067, CIGRÉ TB 623 / TB 490, IEEE Std 1120
220kv Single Core Submarine cable With Lead Sheath Structure
220kv Single Core Submarine cable With Lead Sheath Parameter
| Parameter Specification(mm²) | 1X400 | 1X500 | 1X630 | 1X800 | 1X1000 | 1X1200 | 1X1400 | 1X1600 | 1X1800 | 1X2000 | 1X2200 | 1X2500 | |
| current capacity(A) | seabed | 761 | 839 | 915 | 985 | 1054 | 11ll | 1153 | 1196 | 1230 | 1267 | 1290 | 1333 |
| intertidal | 644 | 706 | 764 | 817 | 869 | 916 | 950 | 986 | 1014 | 1044 | 1064 | 1099 | |
| land | 601 | 664 | 717 | 764 | 812 | 855 | 887 | 920 | 946 | 974 | 992 | 1026 | |
| resistance(Ω/km) | Max DC Resistance at 20℃ | 0.047 | 0.0366 | 0.0283 | 0.0221 | 0.0176 | 0.0151 | 0.0129 | 0.0113 | 0.0101 | 0.009 | 0.0083 | 0.0072 |
| Max AC Resistance at 90℃ | 0.061 | 0.0486 | 0.0387 | 0.0315 | 0.0233 | 0.020 | 0.0174 | 0.0154 | 0.0140 | 0.0127 | 0.0119 | 0.0107 | |
| capacitance(μF/km) | 0.117 | 0.124 | 0.136 | 0.151 | 0.166 | 0.179 | 0.188 | 0.197 | 0.205 | 0.213 | 0.220 | 0.230 | |
| cable diameter (approximate)(mm) | 138.4 | 139.6 | 140.9 | 143.0 | 146.1 | 150.4 | 154.0 | 157.6 | 160.8 | 164.1 | 167.2 | 171.4 | |
| Min bending radius(mm) | 2728 | 2792 | 2818 | 2860 | 2922 | 3008 | 3080 | 3152 | 3216 | 3282 | 3344 | 3428 | |
| weight of cable (kg/km) |
in air | 38034 | 40553 | 41966 | 4488 | 47476 | 51541 | 54722 | 58118 | 61579 | 65148 | 68419 | 73174 |
| in water | 23422 | 25247 | 25984 | 28427 | 30712 | 33775 | 36095 | 38610 | 41271 | 43988 | 46483 | 50101 | |

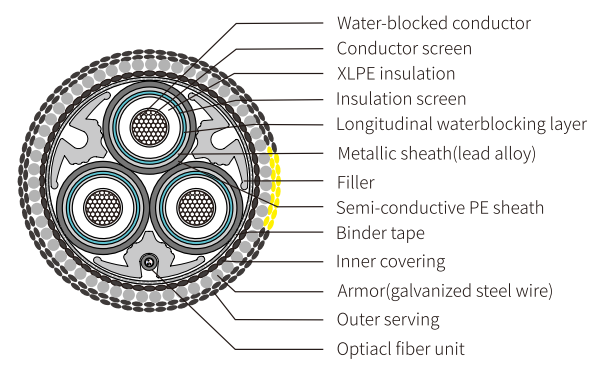

220kv Three-Core Submarine cable With Individual Lead Sheath Structure
220kv Three-Core Submarine cable With Individual Lead Sheath Parameter
| Parameter Specification(mm²) | 3X400 | 3X500 | 3X630 | 3X800 | 3X1000 | 3X1200 | |
| curent capacity (A) | seabed | 683 | 760 | 844 | 922 | 1018 | 1106 |
| intertidal | 614 | 682 | 754 | 820 | 899 | 976 | |
| land | 507 | 561 | 619 | 673 | 734 | 798 | |
| resistance(Ω2/km) | Max DC Resistance at 20℃ | 0.047 | 0.0366 | 0.0283 | 0.0221 | 0.0176 | 0.0151 |
| Max AC Resistance at 90℃ | 0.061 | 0.0486 | 0.0387 | 0.0315 | 0.0233 | 0.020 | |
| capacitance(μF/km) | 0.117 | 0.124 | 0.136 | 0.151 | 0.166 | 0.179 | |
| cable diameter(approximate)(mm) | 249.5 | 256.4 | 259.7 | 263.7 | 270.4 | 279.7 | |
| Min bending radius(mm) | 3743 | 3846 | 3896 | 3956 | 4056 | 4196 | |
| weight of cable (kg/km) |
in air | 126084 | 134363 | 139446 | 147366 | 156604 | 170258 |
| in water | 77193 | 82730 | 86476 | 126289 | 99179 | 108815 | |
