Overview

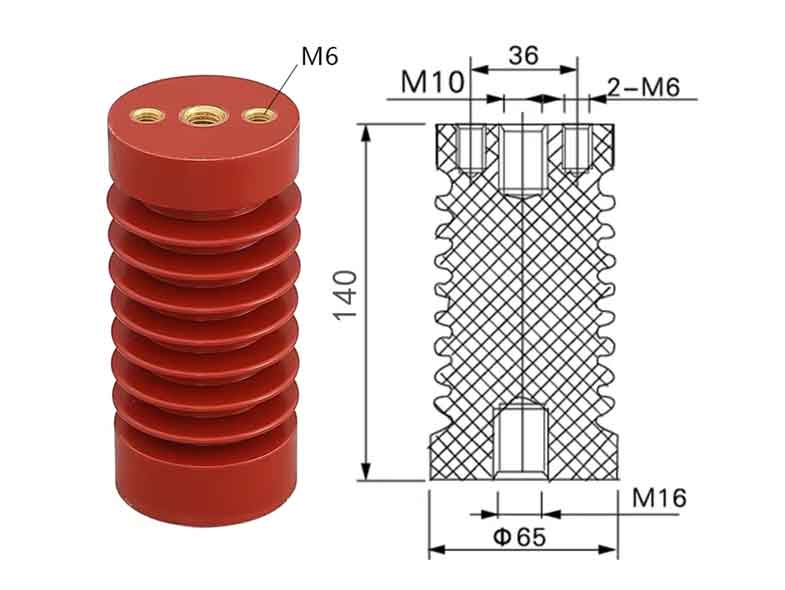

The high-voltage sensor extracts a certain voltage from the high-voltage live circuit by pumping the capacitor core rod as the power supply for realization and locking, which is used to reflect the charged state of the device and can force the door switch network to be locked.
The sensor is an epoxy resin cast pillar insulator type product. It can be used as isolating switch, grounding switch and other pillar insulators. It has the characteristics of high strength, strong arc resistance and small partial discharge.
Characteristics:
Made of high-quality epoxy resin, offering exceptional electrical insulation and mechanical strength.
Resistant to moisture, chemicals, and environmental degradation.
Provides reliable performance under high voltage and thermal stress conditions.
Lightweight and easy to install, reducing handling and installation costs.
Product Features:
1. High-precision oxygen-free copper, low resistance, long-lasting and stable conductivity, and precise internal threads
2. The insulation layer is made of high-quality epoxy resin, which has the characteristics of combustion-supporting, high-strength wear resistance, and corrosion resistance.
3. Using double protective layers, it has strong electrical conductivity, is not prone to heat generation and is durable and stable. Every component is strictly controlled.
Normal working conditions
1. Operating environment: temperature -25°C~+40°C, not lower than -35°C in special areas; altitude not exceeding 100M
2. Atmospheric conditions: the daily average relative humidity of the air is not greater than 95%RH, and the monthly average is not greater than 90%RH; the daily average of water vapor pressure is not more than 2.2KPa, and the monthly average is not more than 1.8PKac
3. Environmental conditions: No obvious pollution, no flammable, explosive, chemical corrosion and salt spray places.
The high-voltage sensor extracts a certain voltage from the high-voltage live circuit by pumping the capacitor core rod as the power supply for realization and locking, which is used to reflect the charged state of the device and can force the door switch network to be locked.
The sensor is an epoxy resin cast pillar insulator type product. It can be used as isolating switch, grounding switch and other pillar insulators. It has the characteristics of high strength, strong arc resistance and small partial discharge.
Characteristics:
Made of high-quality epoxy resin, offering exceptional electrical insulation and mechanical strength.
Resistant to moisture, chemicals, and environmental degradation.
Provides reliable performance under high voltage and thermal stress conditions.
Lightweight and easy to install, reducing handling and installation costs.
Product Features:
1. High-precision oxygen-free copper, low resistance, long-lasting and stable conductivity, and precise internal threads
2. The insulation layer is made of high-quality epoxy resin, which has the characteristics of combustion-supporting, high-strength wear resistance, and corrosion resistance.
3. Using double protective layers, it has strong electrical conductivity, is not prone to heat generation and is durable and stable. Every component is strictly controlled.
Normal working conditions
1. Operating environment: temperature -25°C~+40°C, not lower than -35°C in special areas; altitude not exceeding 100M
2. Atmospheric conditions: the daily average relative humidity of the air is not greater than 95%RH, and the monthly average is not greater than 90%RH; the daily average of water vapor pressure is not more than 2.2KPa, and the monthly average is not more than 1.8PKac
3. Environmental conditions: No obvious pollution, no flammable, explosive, chemical corrosion and salt spray places.
| Model | Diameter | Height | Screw |
| HV60x130 | 60 | 130 | M10/M12/M16 |
| HV60x140 | 60 | 140 | EL24 70x210 |
| HV65x130 | 65 | 130 | EL24 70x210 |
| HV65x140 | 65 | 140 | EL24 70x210 |
| HV40x40 | 40 | 40 | M8/M10 |
| HV40x50 | 40 | 50 | M8/M10 |
| HV40x60 | 40 | 60 | M8/M10 |
| HV50x40 | 50 | 40 | M8/M10 |
| HV50x50 | 50 | 50 | M8/M10 |
| HV50x60 | 50 | 60 | M10/M12 |
| HV50x70 | 50 | 70 | M10/M12 |
| HV50x90 | 50 | 90 | M10/M12 |
| HV60x60 | 60 | 60 | M10/M12 |
| HV60x70 | 60 | 70 | M10/M12 |
| HV60x80 | 60 | 80 | M10/M12 |
| HV60x90 | 60 | 90 | M10/M12 |
| EL3M70x60 | 70 | 60 | M8/M10/M12 |
| EL6M70x90 | 70 | 90 | M8/M10/M12 |
| EL12 58x130 | 58 | 130 | M8/M10/M12 |
| EL15 70x142 | 70 | 142 | M8/M10/M12 |
| EL24 70x210 | 70 | 210 | M10/M12/M16 |
| EL35 80x300 | 80 | 300 | M10/M12/M16 |
| DW50x50 | 50 | 50 | M8/M10 |
