Type 412 Mining Armored Feeder Cable 1.1kv Application
These Type 412 Cables With Green/Yellow Earth And Pliable Armor For Mechanical Protection May Be Usedin Applications Where Damage Is Likely And Armor Can Reduce Cases Of Costly Downtime, Suitable Installedas Feeder Cables In Sand Mining Operations.
This Pliable Armored Cable Used As A Feeder In Areas Where High Impact Resistance Is Required. Not Suitablefor Use In Underground Coal Mining Applications.
Type 412 Mining Armored Feeder Cable 1.1kv Standard
AS/NZS 1125,
AS/NZS 3808,
AS/NZS 2802,
AS/NZS 5000.1
Type 412 Mining Armored Feeder Cable 1.1kv Construction
These Type 412 Cables With Green/Yellow Earth And Pliable Armor For Mechanical Protection May Be Usedin Applications Where Damage Is Likely And Armor Can Reduce Cases Of Costly Downtime, Suitable Installedas Feeder Cables In Sand Mining Operations.
This Pliable Armored Cable Used As A Feeder In Areas Where High Impact Resistance Is Required. Not Suitablefor Use In Underground Coal Mining Applications.
Type 412 Mining Armored Feeder Cable 1.1kv Standard
AS/NZS 1125,
AS/NZS 3808,
AS/NZS 2802,
AS/NZS 5000.1
Type 412 Mining Armored Feeder Cable 1.1kv Construction

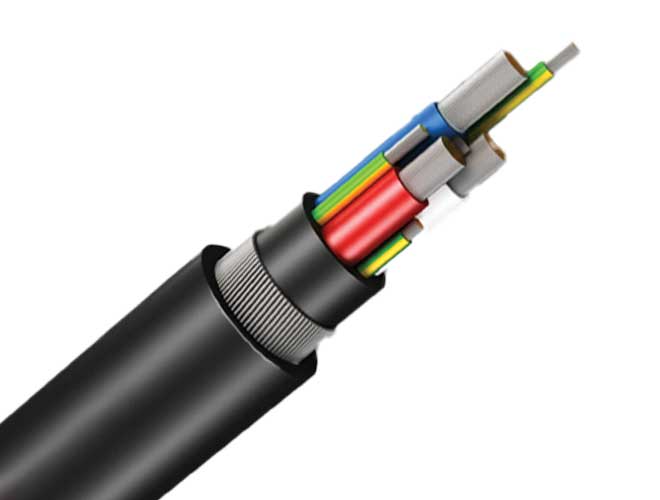

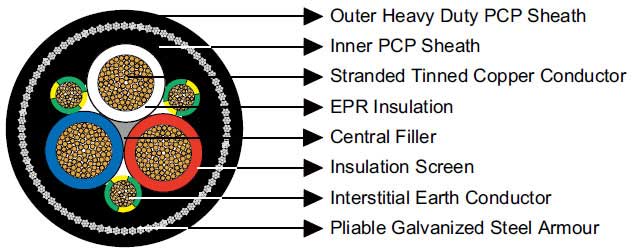

| 3×Conductors | Flexible stranded tinned annealed copper conductor. |
| Insulation | EPR. |
| Insulation Screen | Semiconductive elastomer. |
| Filler | Elastomer centre filler. |
| 3×Interstitial Earth Conductor | EPR covered flexible stranded tinned copper conductor. |
| Inner Sheath | PCP sheath. CPE/CSP sheath can be offered upon request. |
| Pliable Armour | Galvanized low carbon (mild) steel strands. |
| Outer Sheath | Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request. |
Dimensions and Weight :
| Nominal Conductor Area |
Strand Size |
Insulation Thickness |
Earth Conductor | Pliable Armour Size |
Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
||
| Strand Size | Thickness of Covering |
Inner | Outer | ||||||
| mm² | No/mm | mm | No/mm | mm² | No/mm | mm | mm | mm | kg/100m |
| Type 412.1 Class2 | |||||||||
| 16 | 126/0.40 | 1.6 | 81/0.30 | 0.6 | 7/0.90 | 2.5 | 3.8 | 38.3 | 265 |
| 25 | 209/0.40 | 1.6 | 81/0.30 | 0.6 | 7/0.90 | 2.5 | 3.8 | 38.4 | 294 |
| 35 | 285/0.40 | 1.6 | 81/0.30 | 0.6 | 7/0.90 | 2.5 | 4.0 | 44.6 | 402 |
| 50 | 380/0.40 | 1.7 | 120/0.30 | 0.8 | 7/0.90 | 2.5 | 4.4 | 49.2 | 500 |
| 70 | 203/0.67 | 1.8 | 39/0.67 | 0.8 | 7/0.90 | 2.5 | 4.8 | 55.4 | 655 |
| 95 | 259/0.67 | 2.0 | 48/0.67 | 0.8 | 7/0.90 | 2.5 | 5.4 | 60.1 | 775 |
| 120 | 336/0.67 | 2.1 | 60/0.67 | 1.0 | 7/0.90 | 3.5 | 5.8 | 68.1 | 990 |
| 150 | 427/0.67 | 2.3 | 77/0.67 | 1.0 | 7/0.90 | 3.5 | 6.3 | 73.8 | 1186 |
| 185 | 518/0.67 | 2.5 | 91/0.67 | 1.0 | 7/0.90 | 3.5 | 6.8 | 80.2 | 1360 |
| 240 | 672/0.67 | 2.8 | 119/0.67 | 1.2 | 7/0.90 | 3.5 | 7.5 | 88.7 | 1670 |
| 300 | 854/0.67 | 3.0 | 156/0.67 | 1.2 | 7/1.25 | 4.5 | 8.2 | 100.9 | 2200 |
