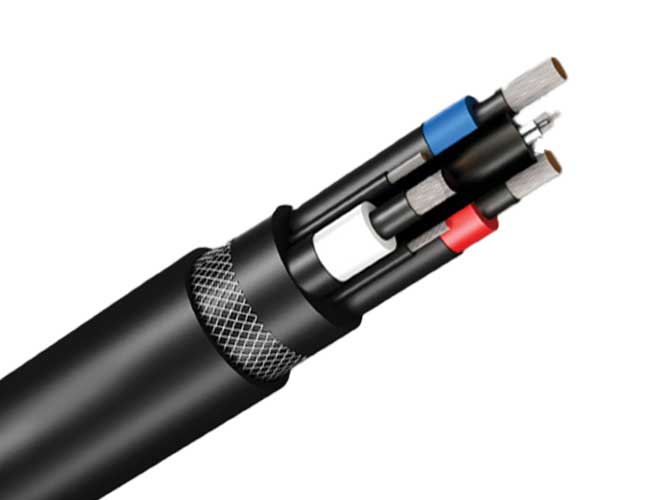

Type 275 Mining Shuttle Reeling Cable 1.1kv

Type 275 Mining Shuttle Reeling Cable 1.1kv Application
This Type 275 Cable Is A Flexible Reeling Cable Suitable For Use In Arduous Conditions Such As Shuttle Busand Pump Cables Which Are Subiect To The Areatest Exertion Underaround, Earth Cores Desianed To Reduceinstances Of Wire Breaks During Reeling While Under Tension. The Cable Includes One Central Pilot Suitablefor Earth Continuity Monitoring.
This Cable Could Also Be Suitable For Use In Underground Coal Mining Applications

Type 275 Mining Shuttle Reeling Cable 1.1kv Standard
AS/NZS 1125,
AS/NZS 3808,
AS/NZS 1802,
AS/NZS 5000.1

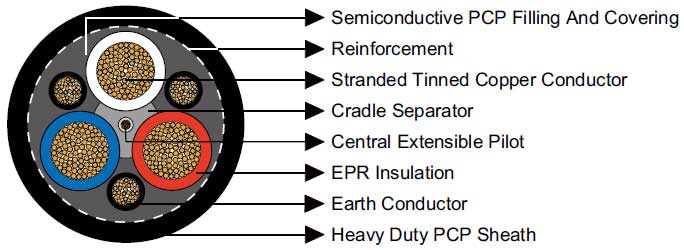

Type 275 Mining Shuttle Reeling Cable 1.1kv Construction

3×Conductors	Flexible stranded tinned annealed copper conductor.
Insulation	EPR.
Cradle Separator	Semiconductive PCP.
Overall Core Screen	Semiconductive PCP filling and covering.
3×Interstitial Earth Conductor	Semiconductive PCP covered flexible stranded tinned copper conductor.
1×Central Extensible Pilot	EPR covered flexible stranded tinned copper conductor.
Textile Reinforcement	Open-weave braid reinforcement.
Sheath	Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request.

Dimensions and Weight :

Nominal Conductor Area	Strand Size	Insulation Thickness	Earth Conductor		Pilot Conductor		Thickness of Sheath Including SC PCP Layer	Nominal Overall Diameter	Nominal Weight
			Strand Size	Thickness of Covering	Strand Size	Thickness of Covering
mm²	No/mm	mm	No/mm	mm	No/mm	mm	mm	mm	kg/100m
Type 275
16	126/0.40	1.6	60/0.30	1.0	24/0.20	0.8	3.8	30.2	145
25	209/0.40	1.6	100/0.30	1.0	24/0.20	0.8	4.0	33.9	204
35	285/0.40	1.6	140/0.30	1.0	24/0.20	0.8	4.3	37.9	270
50	380/0.40	1.7	99/0.40	1.0	40/0.20	0.8	4.7	41.6	333
