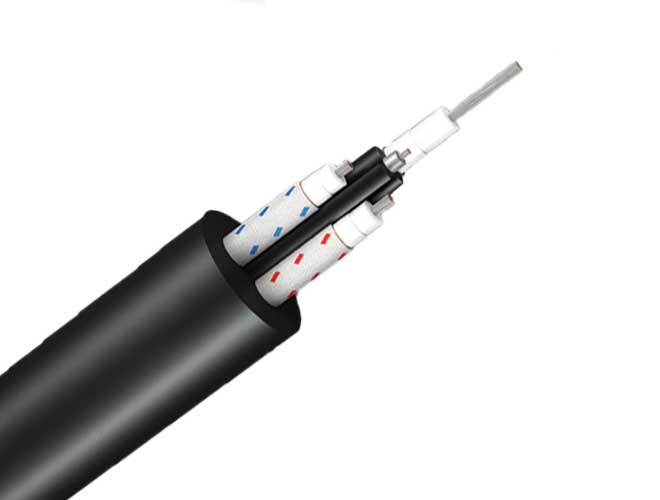

Type 210 Mining Power Feeder Cable 1.1kv Application
This Type 210 Cable Is Primarily Used For Handheld Equipment Such As Drills And Boring Machinesoccasionally Acting As A Flexible Lead To Other Equipment Where Heavy Duty Service Is Required. Notecertain Regulatory Authorities Limit The Use Of This Cable To 250/250 V. This Cable Could Also Be Suitable For Use In Underground Coal Mining Applications.
Type 210 Mining Power Feeder Cable 1.1kvstandard
AS/NZS 1125,
AS/NZS 3808,
AS/NZS 1802,
AS/NZS 5000.1
Type 210 Mining Power Feeder Cable 1.1kv Construction
Dimensions and Weight :
This Type 210 Cable Is Primarily Used For Handheld Equipment Such As Drills And Boring Machinesoccasionally Acting As A Flexible Lead To Other Equipment Where Heavy Duty Service Is Required. Notecertain Regulatory Authorities Limit The Use Of This Cable To 250/250 V. This Cable Could Also Be Suitable For Use In Underground Coal Mining Applications.
Type 210 Mining Power Feeder Cable 1.1kvstandard
AS/NZS 1125,
AS/NZS 3808,
AS/NZS 1802,
AS/NZS 5000.1

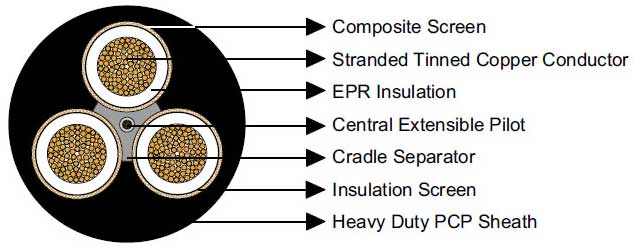

Type 210 Mining Power Feeder Cable 1.1kv Construction
| 3×Conductors | Flexible stranded tinned annealed copper conductor. |
| Insulation | EPR. |
| Insulation Screen | Semiconductive elastomer. |
| Composite Screen (earth conductor) | Tinned annealed copper braiding interwove with polyester yarn. |
| Cradle Separator | Semiconductive PCP |
| 1×Central Extensible Pilot | EPR covered flexible stranded tinned copper conductor. |
| Sheath | Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request. |
| Nominal Conductor Area |
Strand Size | Insulation Thickness |
Core Screen | Pilot Conductor | Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
||
| Strand Size | Area of Screen |
Strand Size | Thickness of Covering |
||||||
| mm² | No/mm | mm | No/mm | mm² | No/mm | mm | mm | mm | kg/100m |
| Type 210 | |||||||||
| 1.5 | 30/0.25 | 1.4 | 7/0.25 | 5.2 | 24/0.20 | 0.8 | 3.0 | 23.7 | 83 |
| 2.5 | 50/0.25 | 1.5 | 7/0.25 | 5.8 | 24/0.20 | 0.8 | 3.0 | 25.1 | 92 |
