PVC Control Cable

Application:
PVC Control Cable is used as power and connecting cables in mechanical engineering for tooling machinery, control unit, production lines, transportation equipment, conveyor and assembly lines as well as in plant construction under the circumstance that the rated voltage is up to 450/750V AC.

Standard:
The product implement the standards GB/T5023, equivalent to IEC60 227. And it can also be made complying with ASTM, DIN, BS standards etc.

Specification:
Conductor: Plain Annealed Copper Class 2
Insulation: PVC Type TI4 to BS EN 50363-3
Sheath: PVC Type 10 to BS 7655-4.2
Min Operating Temperature: -20°C
Max Operating Temperature: 70°C
Core Colours: Multi Cores
Sheath Colours: Black or Grey
Current Carrying Capacity: For current ratings refer to IEC Strandard

Character and Relevant Parameters:
1. Long-term service temperature of the cable conductor: 70°C
2. Rated voltage: 300/500V,450/750V ,600/1000V.
3. Cable lying temperature ≥ 0°C
4. Cores: 2, 3, 4, 5, 6,7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61
5. Minimun bending radius:
Non armored ≥ out diameter of cable 6 times
Armored layer or copper tape shielded ≥ outer diameter of cable 12 times
Shielded layer soft cable ≥ outer diameter of cable 6 times

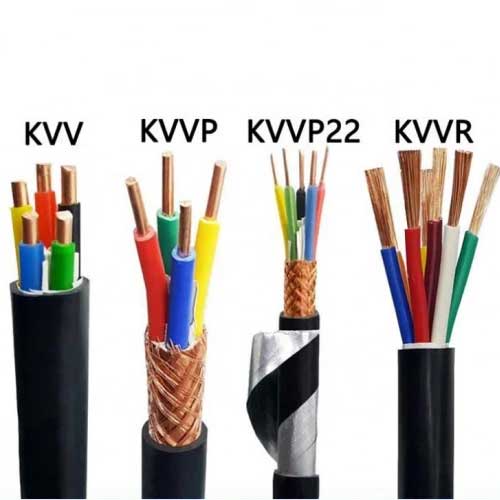

PVC Control Cable Parameter:

Type	Name	Section Area(mm2)	No. of Core
KVV	Copper Conductor, PVC Insulated and Sheathed control cable	0.75 1.0 1.5 2.5	2-8 10 12 14 16  19 24 27 30 37
		4.0  6.0	2-8 10 12 14
KVVP	Copper Conductor, PVC Insulated and Sheathed, Copper-braid Screened Control Cable	0.75 1.0 1.5 2.5	2-8 10 12 14 16  19 24 27 30 37
		4.0  6.0	2-8 10 12 14
KVVP2	Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Control Cable	0.75 1.0 1.5 2.5	2-8 10 12 14 16  19 24 27 30 37
		4.0  6.0	2-8 10 12 14
KVVP2-22	Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Steel-tape armored Control Cable	0.75 1.0 1.5 2.5	2-8 10 12 14 16  19 24 27 30 37
		4.0  6.0	2-8 10 12 14

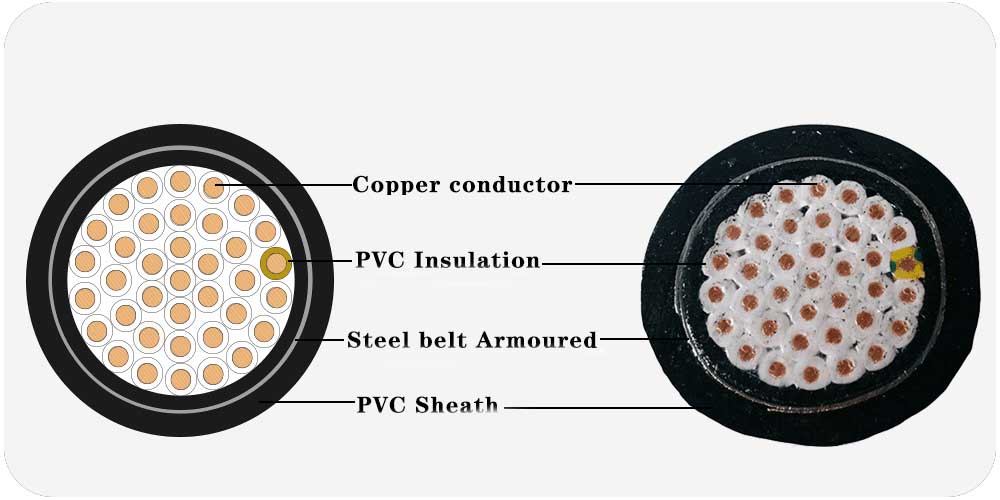

KVV22	Copper Conductor, PVC Insulated and Sheathed, Steel-tape armored Control Cable	0.75 1.0 1.5 2.5	2-8 10 12 14 16  19 24 27 30 37
		4.0  6.0	2-8 10 12 14
KVVR	Copper Conductor, PVC Insulated and Sheathed, Flexible Control Cable	0.75 1.0 1.5 2.5	2-8 10 12 14 16  19 24 27 30 37
		4.0  6.0	2-8 10 12 14
KVVRP	Copper Conductor, PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable	0.75 1.0 1.5 2.5	2-8 10 12 14 16  19 24 27 30 37
		4.0  6.0	2-8 10 12 14

Customer Service:
Uni-cable always put quality in the first place. In order to guarantee the performance of PVC Control Cable, we produce the cable in strict accordance with international standards. We promise to provide the qualified products for our customers.Get a free quote by E-mail：info@cable-uni.com
