Overview
The scope of application is: Aerial, wall-mounting etc.
The ambient temperature ranges from –40°C ~ +65°C.
Features:

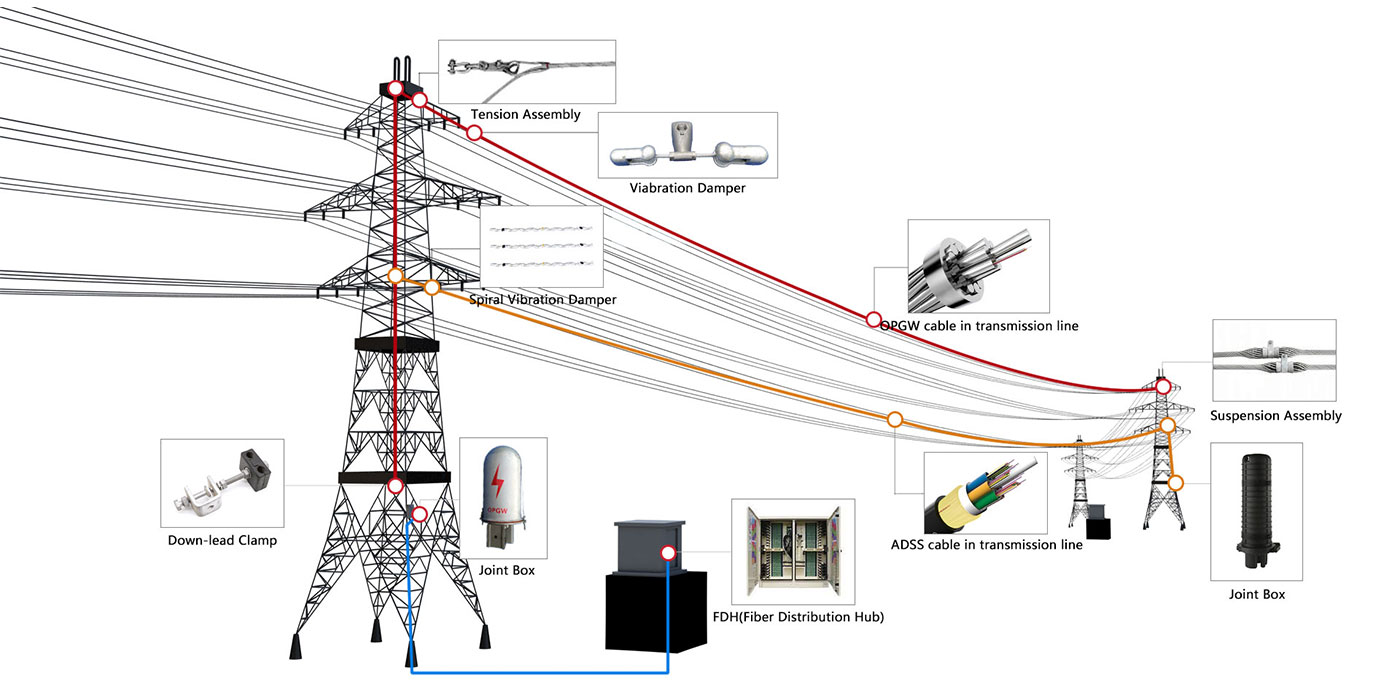

1. Optical cable joint boxes are suitable for OPGW and ADSS fiber optic cable.
2. Fully kitted with all parts for convenient operation.
3. Overlap structure in splicing tray for easy installation.
4. Fiber-bending radium guaranteed more than 40mm.
5. Easy to install and re-entry with a common can wrench.
6. Excellent Mechanical Sealed to protect fiber and splice ensuring durability.
7. Stand up to severe condition of moisture,vibration and extreme temperatures.
Advantages:
1. Fibre optic metal joint box/joint closure/splice closure is used for the continuation of the optical cable in the middle of the tower, which has the advantages of high mechanical strength, good sealing performance and strong corrosion resistance.
2. Fibre optic metal joint box/joint closure/splice closure can be opened, expanded, maintained, multiplexed, etc. repeatedly.
3. The maximum capacity of optical fiber is 144 cores.
4. The bending radius of the optical fiber is greater than or equal to 45mm, and the additional loss left by the optical fiber reel is less than or equal to 0.02Db. The optical cable is fixed by a special clamping method, which can effectively prevent the optical cable from being pinched, and the installation and operation are extremely convenient.
Parameter
Metal Splice Closure For Tower:
Metal Splice Closure For Pole:
Note:
Only a part of the parameters of the Optical Cable Metal Joint Box/Splice Closure/Joint Closure are listed, which can be processed and produced according to customer needs.
The scope of application is: Aerial, wall-mounting etc.
The ambient temperature ranges from –40°C ~ +65°C.
Features:
1. Optical cable joint boxes are suitable for OPGW and ADSS fiber optic cable.
2. Fully kitted with all parts for convenient operation.
3. Overlap structure in splicing tray for easy installation.
4. Fiber-bending radium guaranteed more than 40mm.
5. Easy to install and re-entry with a common can wrench.
6. Excellent Mechanical Sealed to protect fiber and splice ensuring durability.
7. Stand up to severe condition of moisture,vibration and extreme temperatures.
Advantages:
1. Fibre optic metal joint box/joint closure/splice closure is used for the continuation of the optical cable in the middle of the tower, which has the advantages of high mechanical strength, good sealing performance and strong corrosion resistance.
2. Fibre optic metal joint box/joint closure/splice closure can be opened, expanded, maintained, multiplexed, etc. repeatedly.
3. The maximum capacity of optical fiber is 144 cores.
4. The bending radius of the optical fiber is greater than or equal to 45mm, and the additional loss left by the optical fiber reel is less than or equal to 0.02Db. The optical cable is fixed by a special clamping method, which can effectively prevent the optical cable from being pinched, and the installation and operation are extremely convenient.
Parameter
Metal Splice Closure For Tower:
| Application | Specification Model | Suitable Range | Weight(kg) | Material |
| FOR TOWER | OGXT-2-012 | Two ports, 12 Fibers | 4.1 | Aluminium Alloy |
| OGXT-2-024 | Two ports, 24 Fibers | 4.1 | Aluminium Alloy | |
| OGXT-2-036 | Two ports, 36 Fibers | 4.1 | Aluminium Alloy | |
| OGXT-2-048 | Two ports, 48 Fibers | 4.1 | Aluminium Alloy | |
| OGXT-2-060 | Two ports, 60 Fibers | 4.1 | Aluminium Alloy | |
| OGXT-3-012 | Three ports, 12 Fibers | 4.2 | Aluminium Alloy | |
| OGXT-3-024 | Three ports, 24 Fibers | 4.2 | Aluminium Alloy | |
| OGXT-3-036 | Three ports, 36 Fibers | 4.2 | Aluminium Alloy | |
| OGXT-3-048 | Three ports, 48 Fibers | 4.2 | Aluminium Alloy | |
| OGXT-3-060 | Three ports, 60 Fibers | 4.2 | Aluminium Alloy |
Metal Splice Closure For Pole:
| Application | Specification Model | Suitable Range | Weight(kg) | Material |
| FOR POLE | OGXG- 2-012 | Two ports, 12 Fibers | 4.1 | Aluminium Alloy |
| OGXG- 2-024 | Two ports, 24 Fibers | 4.1 | Aluminium Alloy | |
| OGXG- 2-036 | Two ports, 36 Fibers | 4.1 | Aluminium Alloy | |
| OGXG- 2-048 | Two ports, 48 Fibers | 4.1 | Aluminium Alloy | |
| OGXG- 2-060 | Two ports, 60 Fibers | 4.1 | Aluminium Alloy | |
| OGXG- 3-012 | Three ports, 12 Fibers | 4.2 | Aluminium Alloy | |
| OGXG- 3-024 | Three ports, 24 Fibers | 4.2 | Aluminium Alloy | |
| OGXG- 3-036 | Three ports, 36 Fibers | 4.2 | Aluminium Alloy | |
| OGXG- 3-048 | Three ports, 48 Fibers | 4.2 | Aluminium Alloy | |
| OGXG- 3-060 | Three ports, 60 Fibers | 4.2 | Aluminium Alloy |
Note:
Only a part of the parameters of the Optical Cable Metal Joint Box/Splice Closure/Joint Closure are listed, which can be processed and produced according to customer needs.
