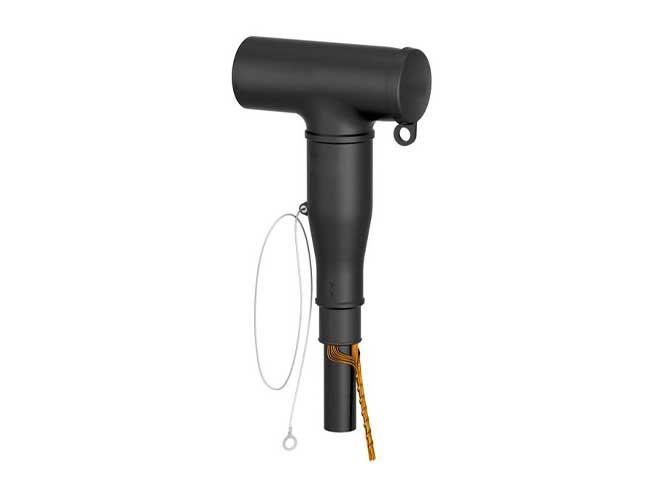

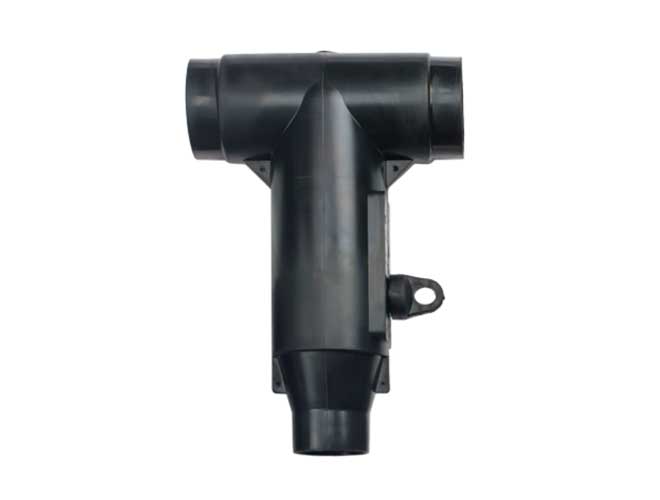

Cable connector 630 A for 18/30 (36) kV
Product Overview
The CB 36-630 is a screened cable connector made of silicone rubber for cable connection to switchgear and transformers up to 42 kV with bushings type C (630 A) according to EN 50180, EN 50181 and DIN 47636. Type tests according to CENELEC HD 629.1 and VDE 0278 part 629-1 have been successfully passed.It provides reliable electrical connection and mechanical stability for cable joints, terminations, and switchgear connections. The connector ensures safe, long-lasting performance in MV distribution networks.
![]() |

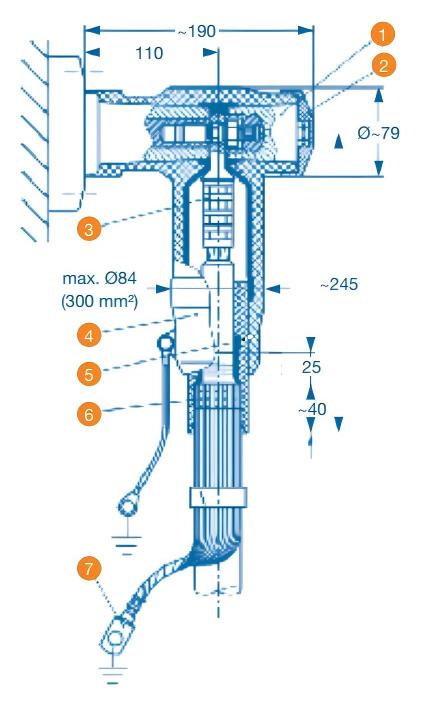

1. insulating plug 2. covering cap 3. cable lug 4. connector body 5. stress cone 6. sealing tape 7. earthing cable lug |
Applications
-
Medium Voltage Switchgear
-
Cable Joints and Branching
-
Transformer Termination
-
Power Distribution Networks
-
Industrial and Utility MV Installations
Product Specifications
CB 36-630| Conductor cross section (mm²) | Size of stress cone | Stretch range over insulation (mm) | Reference no. | ||
| Basic set without cable lug | with cable lug | ||||
| Al-conductor | Cu-conductor | ||||
| 25 | type 5003 | 17.0 - 24.3 | 26 331 91 | 26 331 51 | 26 331 01 |
| 35 | 26 331 52 | 26 331 02 | |||
| 50 | type 5005 | 21.2 - 33.5 | 26 331 92 | 26 331 53 | 26 331 03 |
| 70 | 26 331 54 | 26 331 04 | |||
| 95 | 26 331 55 | 26 331 05 | |||
| 120 | 26 331 56 | 26 331 06 | |||
| 150 | type 5027 | 28.9 - 40.0 | 26 331 57 | 26 331 07 | |
| 185 | 26 331 93 | 26 331 58 | 26 331 08 | ||
| 240 | 26 331 59 | 26 331 09 | |||
| 300 | 26 331 60 | 26 331 10 | |||
CB 36-630 (1250)
Additional solutions
| Conductor cross section (mm²) | Size of stress cone | Stretch range over insulation (mm) | Reference no. | ||
| Basic set without cable lug | with cable lug | ||||
| Al-conductor | Cu-conductor | ||||
| 25 | type 5003 | 17.0 - 24.3 | 26 331 91 | 26 331 51 | 26 331 01 |
| 35 | 26 331 52 | 26 331 02 | |||
| 50 | type 5005 | 21.2 - 33.5 | 26 331 92 | 26 331 53 | 26 331 03 |
| 70 | 26 331 54 | 26 331 04 | |||
| 95 | 26 331 55 | 26 331 05 | |||
| 120 | 26 331 56 | 26 331 06 | |||
| 150 | type 5027 | 28.9 - 40.0 | 26 331 57 | 26 331 07 | |
| 185 | 26 331 93 | 26 331 58 | 26 331 08 | ||
| 240 | 26 331 59 | 26 331 09 | |||
| 300 | 26 331 60 | 26 331 10 | |||
