Application
Copper medium voltage power cables refer to electrical cables designed for transmitting electrical power at medium voltage levels, and they use Copper conductors.Special Features on Request :
Oil Resistance
UV Resistance
Flame Retardant Cat. A, B, C
Flame Retardant Non-Category
Heat Resistance
Anti Termite
Standard Specification :
SPLN 43 – 5,SNI IEC 60502-2, IEC 60502-2
| Type | Application | ||

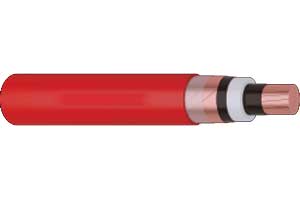

| Cu/XLPE/CTS/PVC (N2XSY) Copper Conductor, XLPE Insulated, Copper Tape Screen, PVC Sheathed |
1 Core | For power station and switchgear as well as station because of small bending radius in confined spaces indoors. As underground because of lightweight where installation conditions are difficult. |  |

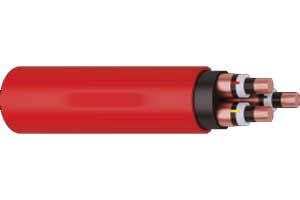

| Cu/XLPE/CTS/PVC (N2XSEY) Copper Conductor, XLPE Insulated, Copper Tape Screen, PVC Sheathed |
3 Core | Indoors, cable trunking, outdoors and in-ground; For power stations, industry, and switchgear. |  |
| Cu/XLPE/CTS/DSTA/PVC (N2XSEBY) Copper Conductor, XLPE Insulated, Copper Tape Screen, PVC Inner Sheathed, Double Steel Tape Armor, PVC Sheathed |
3 Core | For installation indoors, in-ground direct buried, for power station and switchgear, if there is a risk that low mechanical damage may occur. |  |

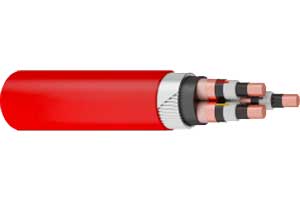

| Cu/XLPE/CTS/SWA/PVC (N2XSERGbY) Copper Conductor, XLPE Insulated, Copper Tape Screen, PVC Inner Sheathed, Steel Wire Armor, PVC Sheathed |
3 Core | For installation indoors, in-ground direct buried, for power station and switchgear, if there is a risk that low mechanical damage may occur. |  |

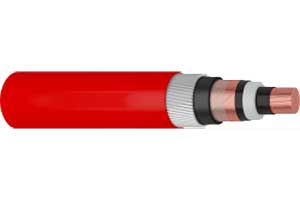

| Cu/XLPE/CTS/AWA/PVC (N2XSRY) (Copper Conductor, XLPE Insulated, Copper Tape Screen, PVC Inner Sheathed, Alumunium Wire Armor, PVC Sheathed |
1 Core | For installation indoors, in the ground direct buried, for power station and switchgear, if there is a risk that low mechanical damage may occur. |  |

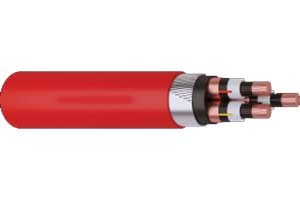

| Cu/XLPE/CTS/SFA/PVC (N2XSEFGbY) (Copper Conductor, XLPE Insulated, Copper Tape Screen, PVC Inner Sheathed, Galvanized Steel Flat Armor, PVC Sheathed |
3 Core | For installation in the ground, indoors, cable trunking, and outdoors if increased mechanical protection is required or where high-pulling stresses may occur during installation or operation. |  |

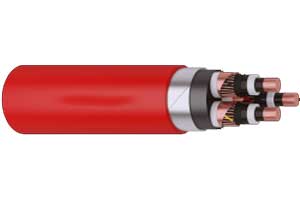

| Cu/XLPE/CWS/DSTA/PVC (N2XSEYBY) (Copper Conductor, XLPE Insulated, Copper Wire Screen, PVC Inner Sheathed, Double Steel Tape Armor, PVC Sheathed |
3 Core | For power station and switchgear, if there is a risk that low mechanical damage may occur. For installation indoors, ground is directly buried |  |

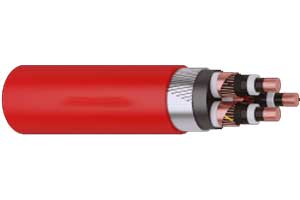

| Cu/XLPE/CWS/SFA/PVC (N2XSEYFGbY) (Copper Conductor, XLPE Insulated, Copper Wire Screen, PVC Inner Sheathed, Steel Flat Armor, PVC Sheathed |
3 Core | For power station and switchgear, if there is a risk that low mechanical damage may occur. For installation indoors. in the ground directly buried. |  |
Dimensions
| 6/10 (12) kV | |||
| 1X35 RM/16 | 24 | 518 | 867 |
| 1X50 RM/16 | 25 | 662 | 1001 |
| 1X70 RM/16 | 26 | 854 | 1232 |
| 1X95 RM/16 | 28 | 1094 | 1500 |
| 1X120 RM/16 | 30 | 1334 | 1746 |
| 1X150 RM/25 | 31 | 1723 | 2095 |
| 1X185 RM/25 | 33 | 2059 | 2472 |
| 1X240 RM/25 | 35 | 2587 | 3032 |
| 1X300 RM/25 | 37 | 3163 | 3637 |
| 1X400 RM/35 | 40 | 4234 | 4535 |
| 1X500 RM/35 | 43 | 5194 | 5566 |
| 1x630 RM/35 | 47 | 6442 | 6935 |
| 12/20 (24) kV | |||
| 1X35 RM/16 | 28 | 518 | 1030 |
| 1X50 RM/16 | 29 | 662 | 1169 |
| 1X70 RM/16 | 31 | 854 | 1410 |
| 1X95 RM/16 | 32 | 1094 | 1689 |
| 1X120 RM/16 | 34 | 1334 | 1944 |
| 1X150 RM/25 | 35 | 1723 | 2301 |
| 1x185 RM/25 | 37 | 2059 | 2689 |
| 1X240 RM/25 | 39 | 2587 | 3262 |
| 1X300 RM/25 | 42 | 3163 | 3882 |
| 1X400 RM/35 | 44 | 4234 | 4797 |
| 1X500 RM/35 | 47 | 5194 | 5850 |
| 1x630 RM/35 | 51 | 6442 | 7237 |
| 1x800 RM/35 | 56 | 8074 | 9058 |
| 18/30 (36) kV | |||
| 1x35 RM/16 | 24 | 518 | 770 |
| 1X50 RM/16 | 34 | 662 | 1403 |
| 1x70 RM/16 | 36 | 854 | 1656 |
| 1X95 RM/16 | 37 | 1094 | 1947 |
| 1X120 RM/16 | 39 | 1334 | 2213 |
| 1x150 RM/25 | 40 | 1723 | 2580 |
| 1x185 RM/25 | 42 | 2059 | 2980 |
| 1X240 RM/25 | 44 | 2587 | 3570 |
| 1x300 RM/25 | 47 | 3163 | 4208 |
| 1x400 RM/35 | 50 | 4234 | 5147 |
| 1x500 RM/35 | 53 | 5194 | 6244 |
